SPECIFICATIONS

Brand Name: diymore

Choice: yes

Condition: New

High-concerned chemical: None

Origin: Mainland China

Type: Module

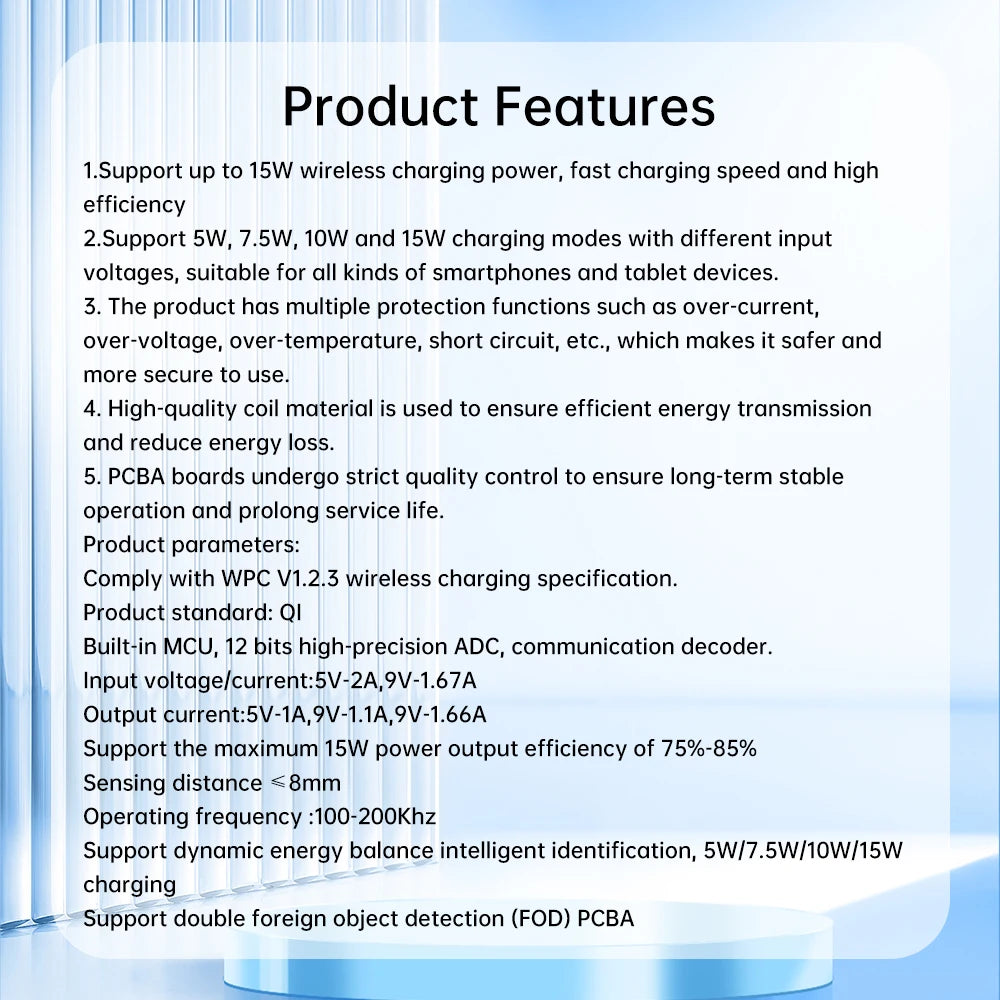

Features:

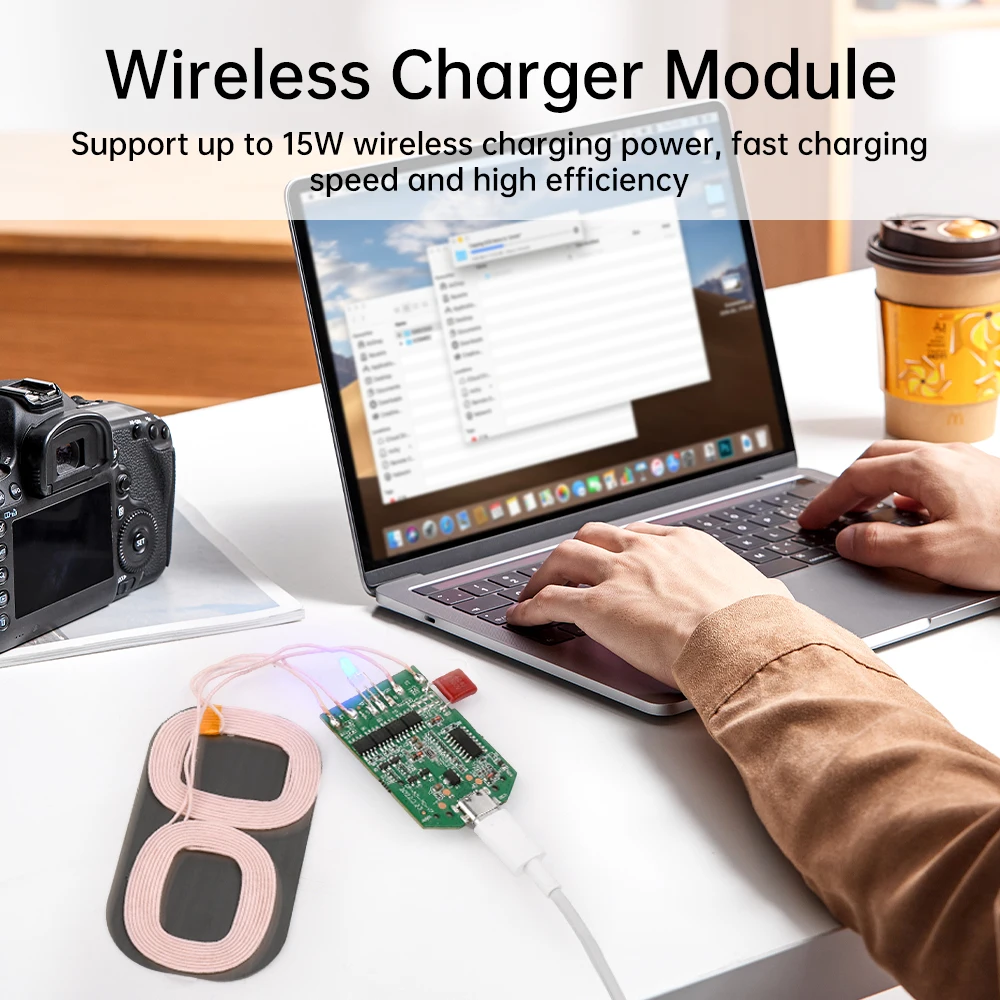

1.Support up to 15W wireless charging power, fast charging speed and high efficiency

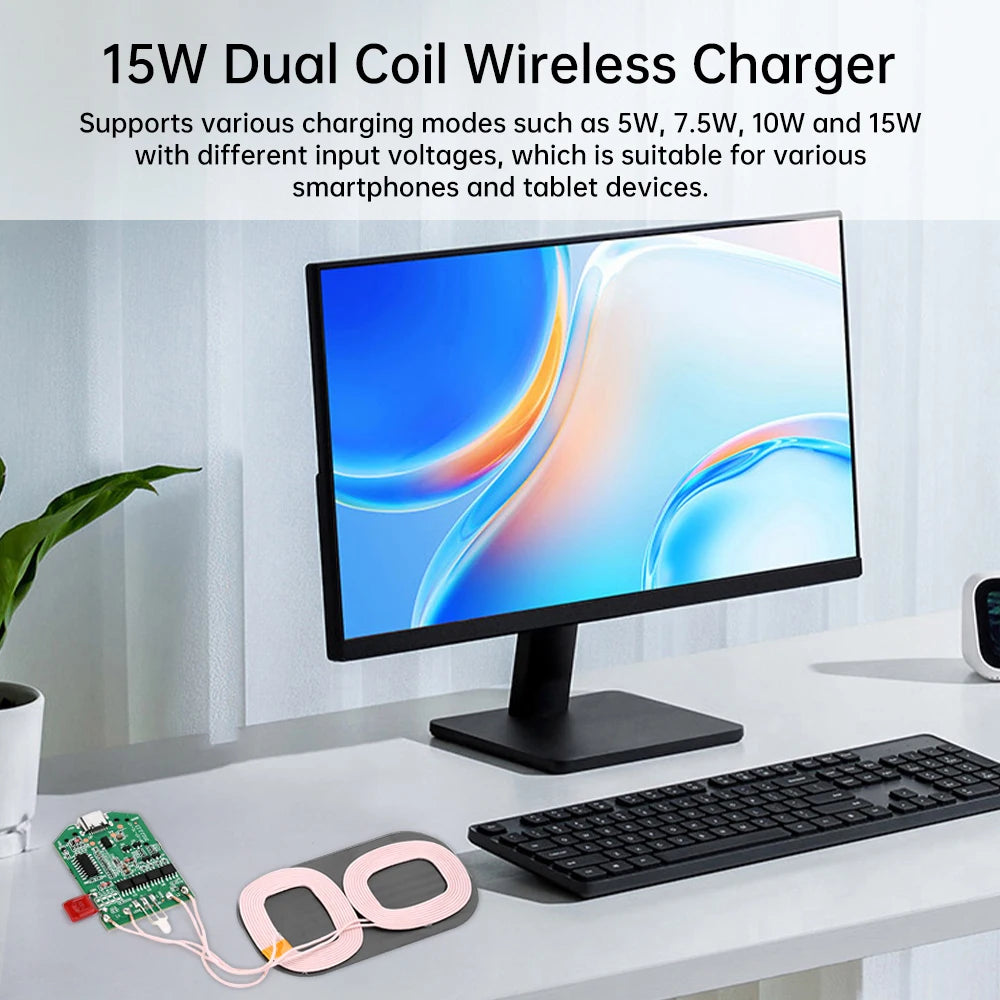

2. Through different input voltages, it supports various charging modes such as 5W, 7.5W, 10W and 15W, which is suitable for all kinds of smartphones and tablet devices.

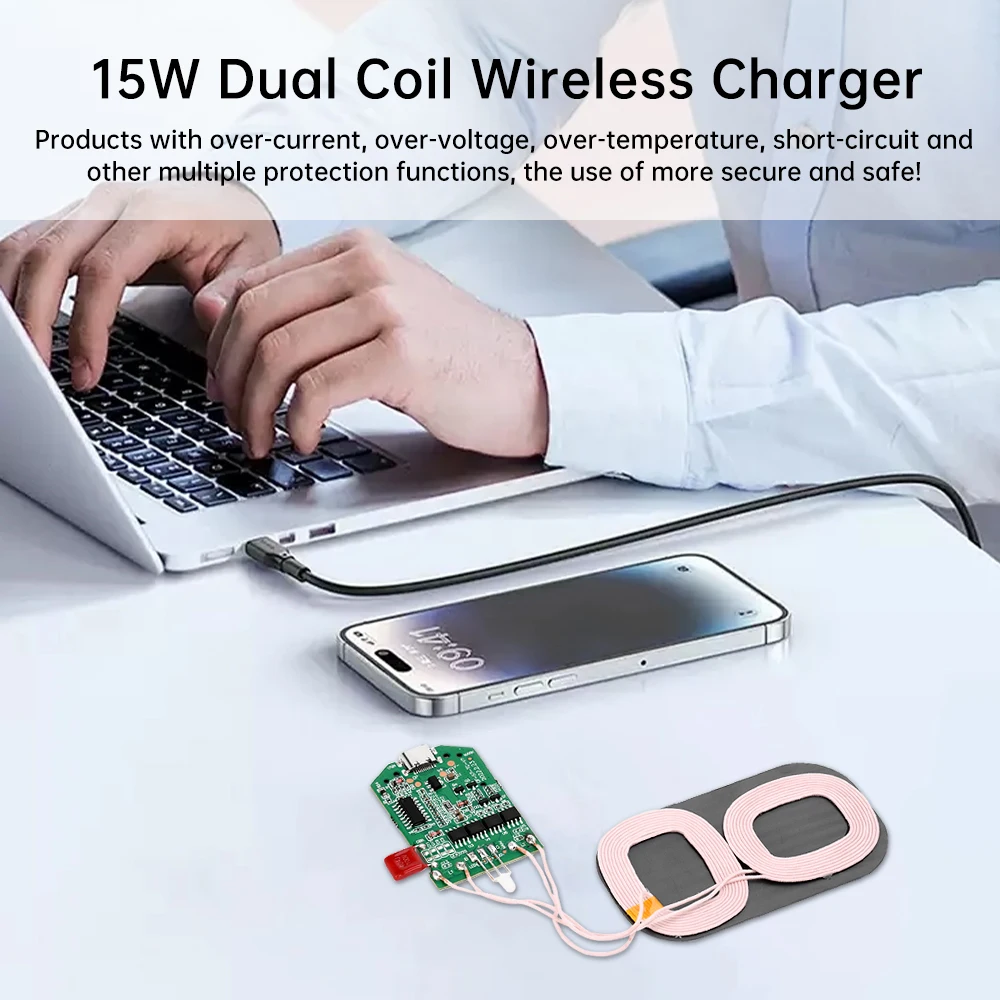

3. The product has multiple protection functions such as over-current, over-voltage, over-temperature, short circuit, etc., which makes it safer and more secure to use.

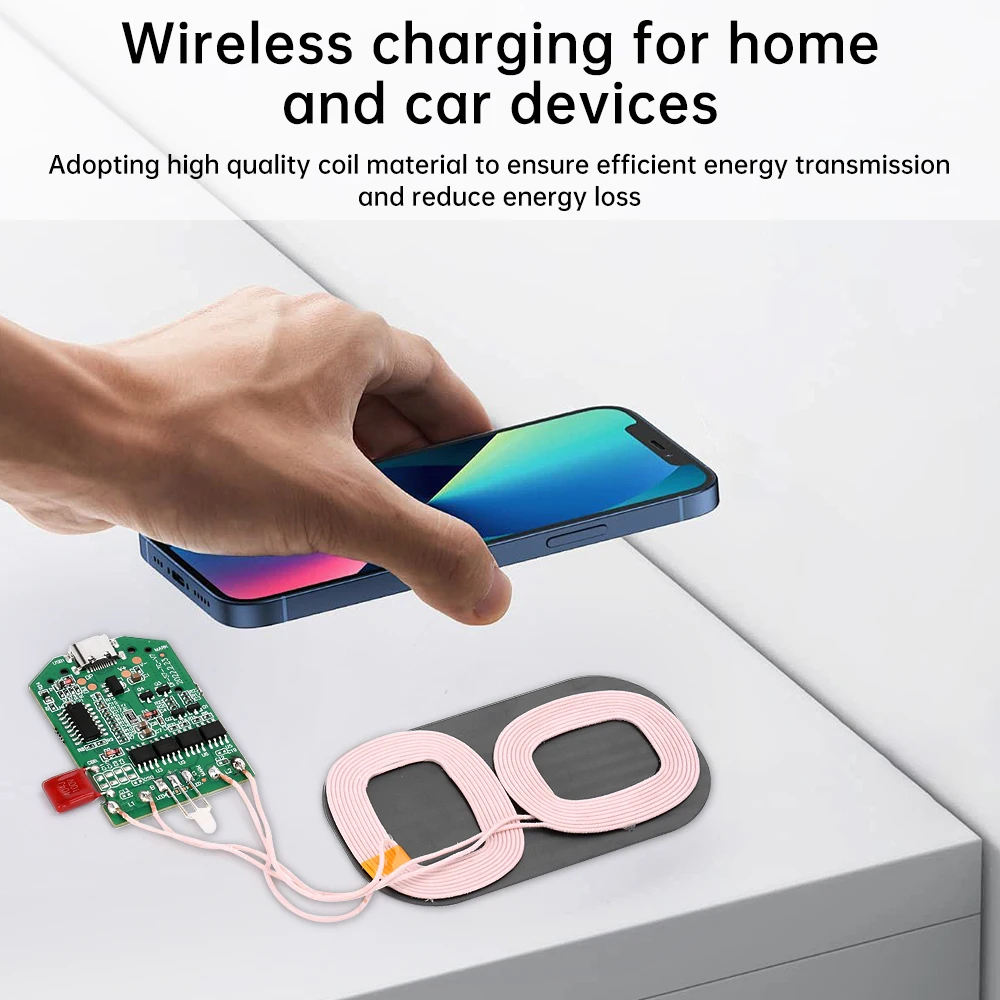

4. High-quality coil materials are used to ensure efficient energy transfer and reduce energy loss.

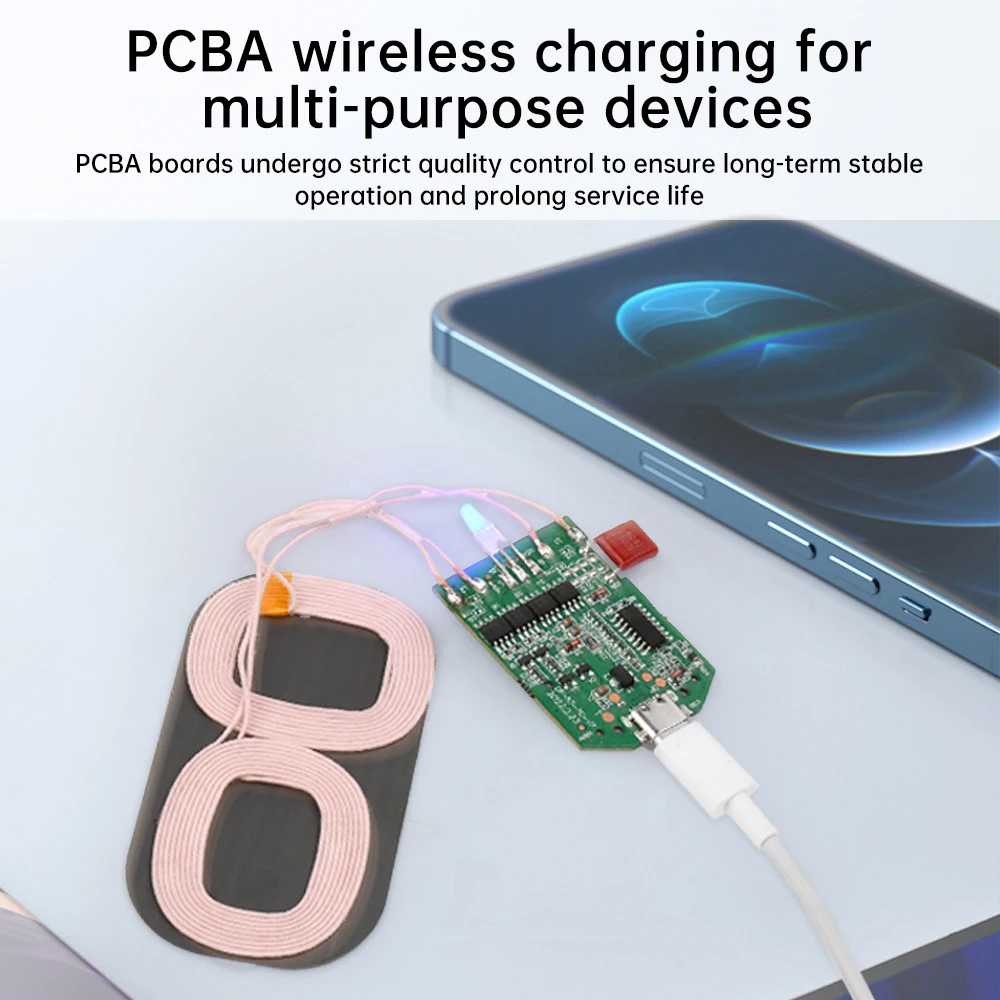

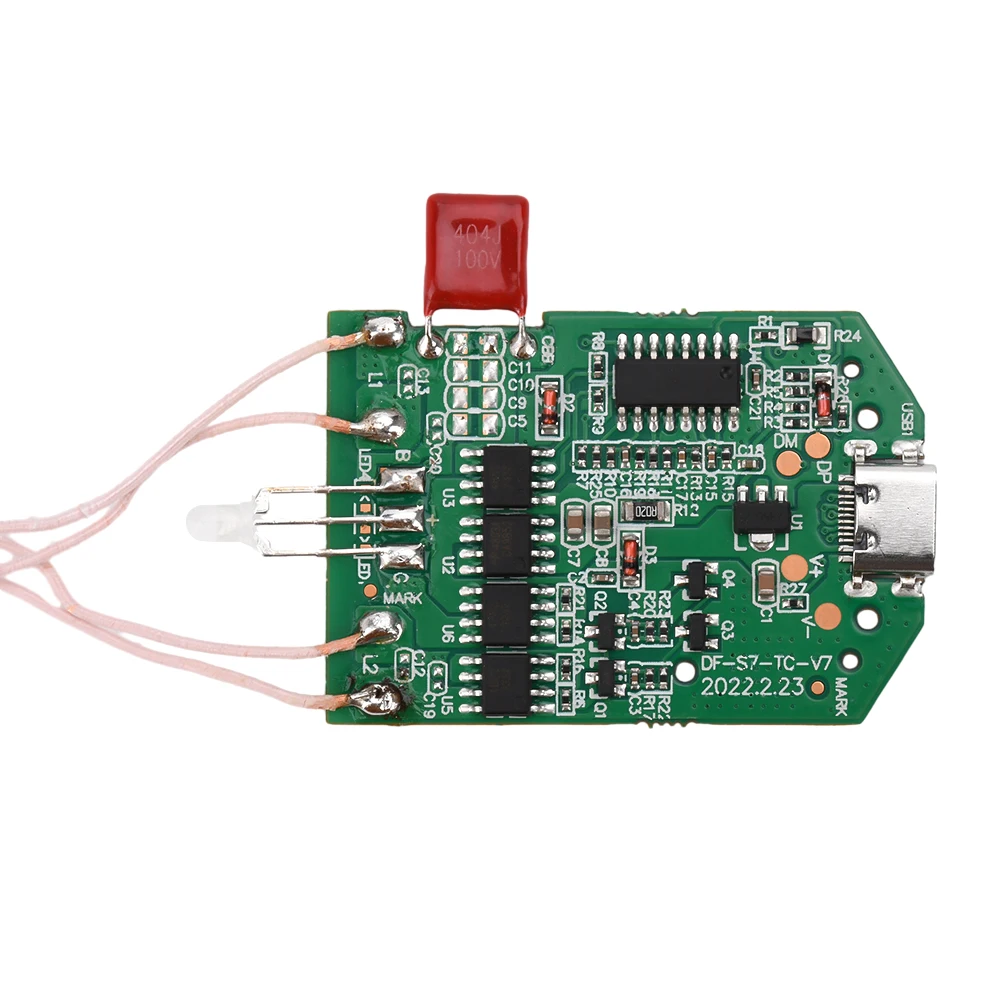

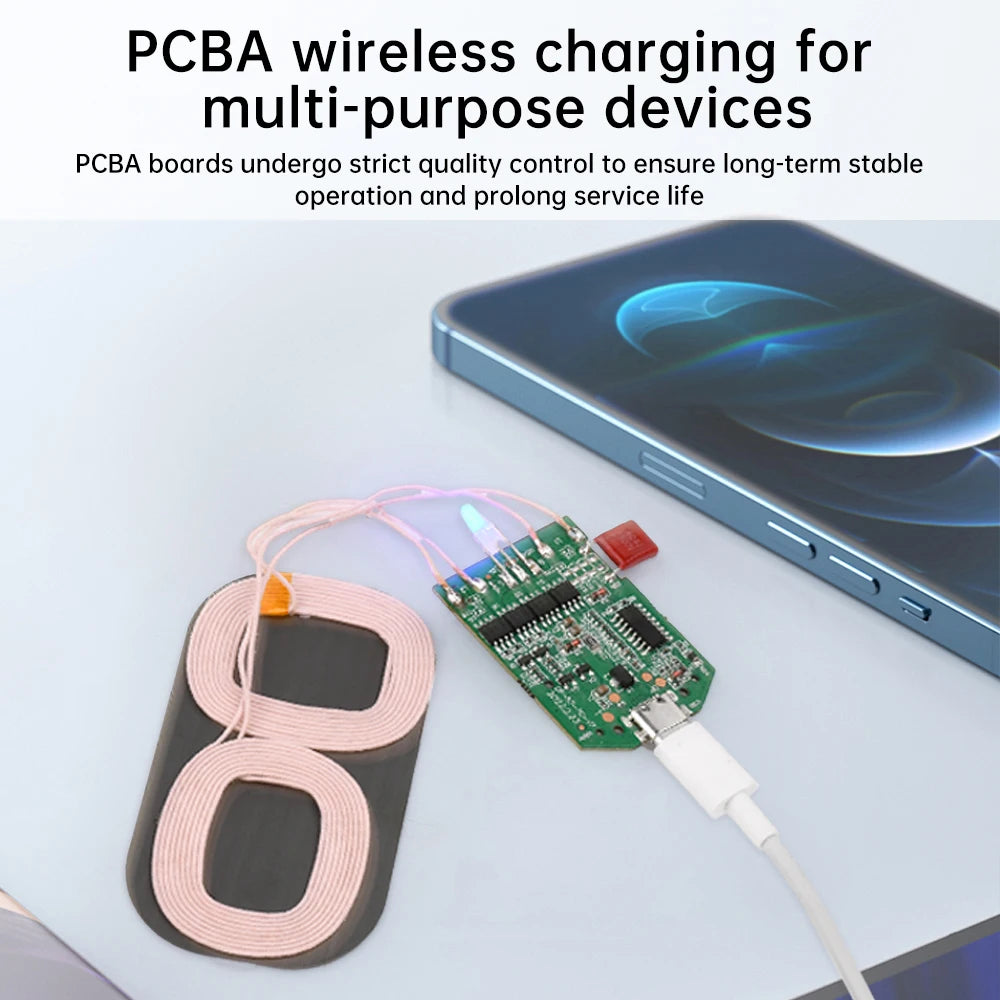

5.PCBA boards undergo strict quality control to ensure long-term stable operation and prolong service life.

Parameter:
Compliant with WPC V1.2.3 wireless charging specification
Product standard: QI
Supports Samsung fast charging protocol, compatible with iPhonex/8/8p/12/13 charging protocols
Built-in MCU, 12 bits high-precision ADC, communication decoder.

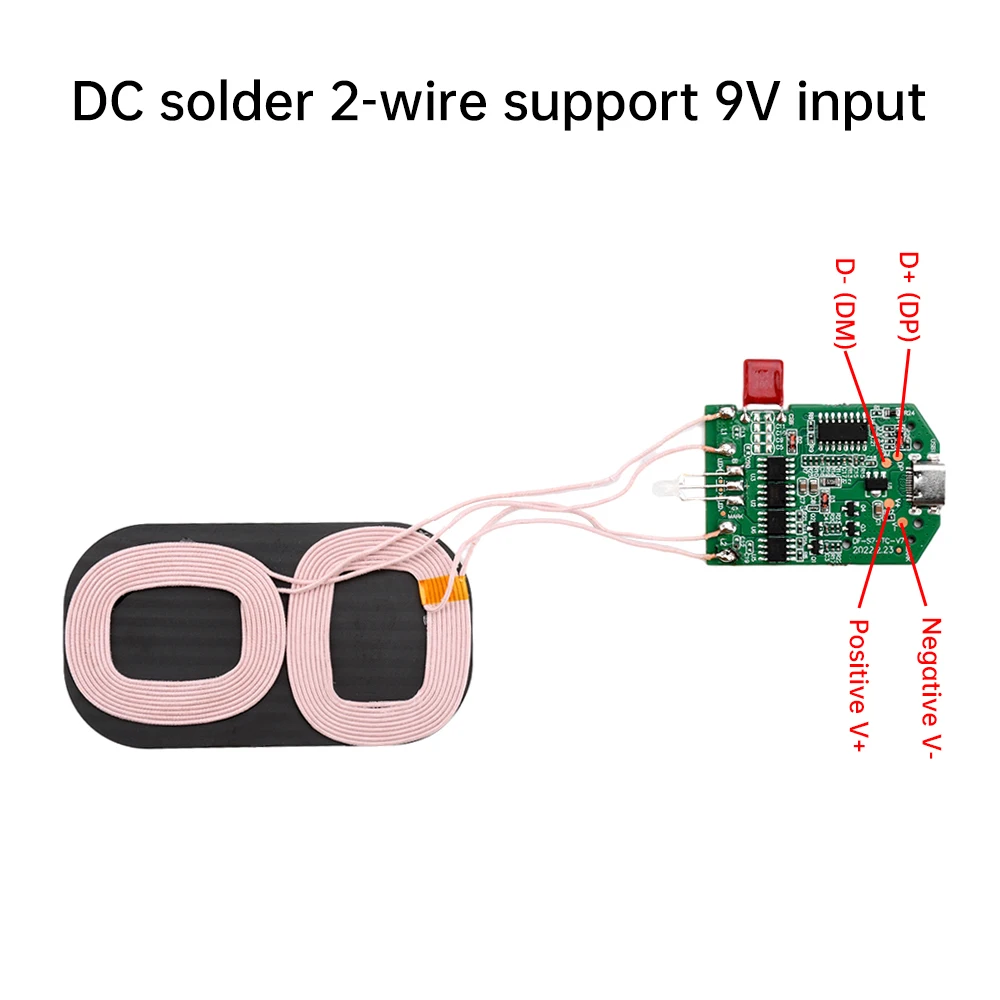

Input voltage/current: 5V-2A, 9V-1.67A ,12V-1.5
Output Current: 5V-1A,9V-1.1 9V-1.66
Support up to 15W power output
Efficiency up to 75%-85
Sensing distance≤8mm
Operating frequency :100-200Khz
Support dynamic energy balance
Intelligent identification, 5W/7.5W/10W/15W charging
With over-current, over-voltage, over-temperature, short-circuit and other fourfold protection function
Support foreign object detection (FOD)

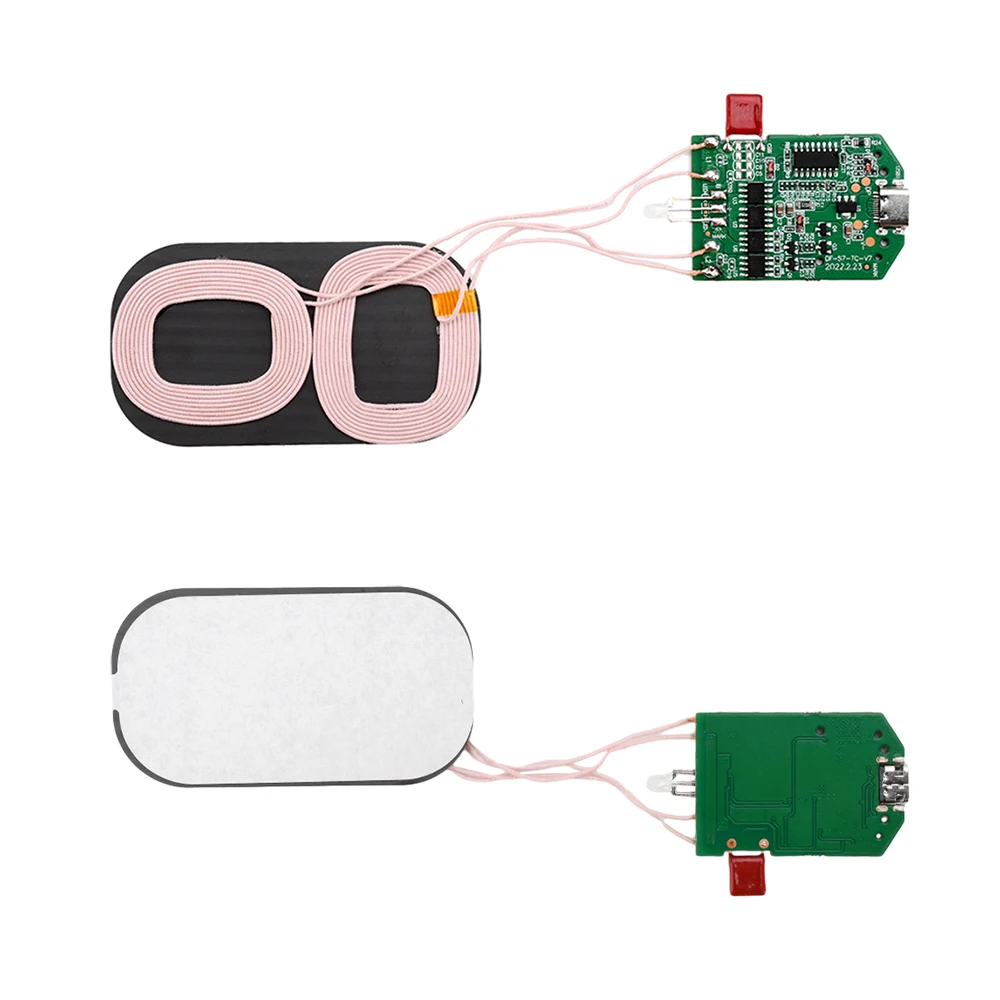

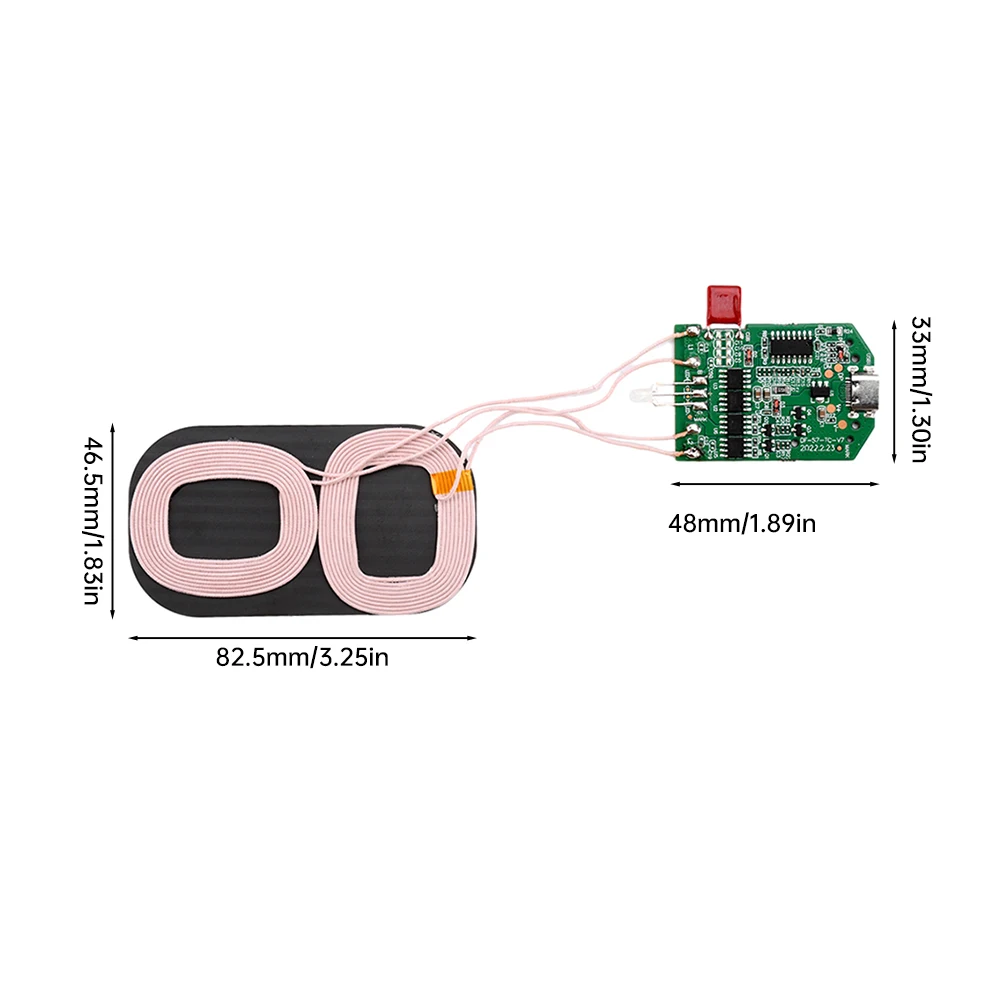

Main board size: 48mm*33mm*2.7mm

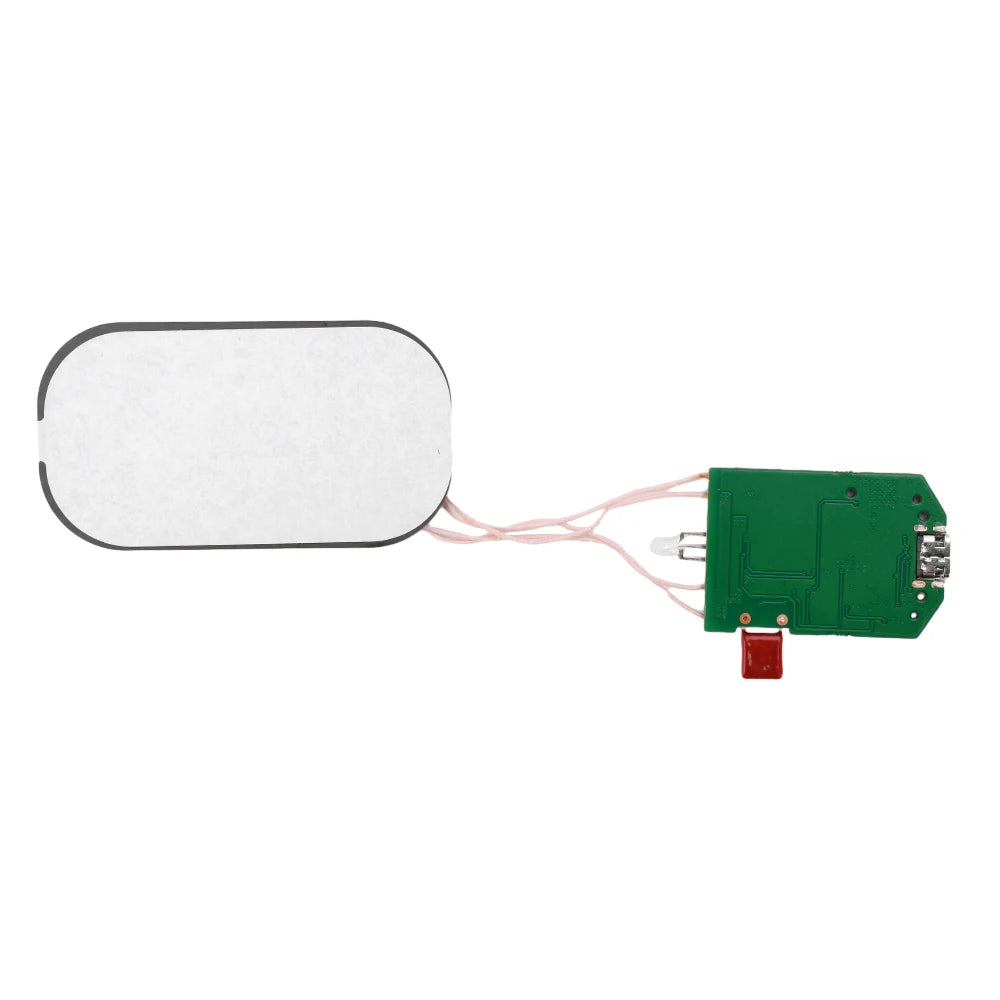

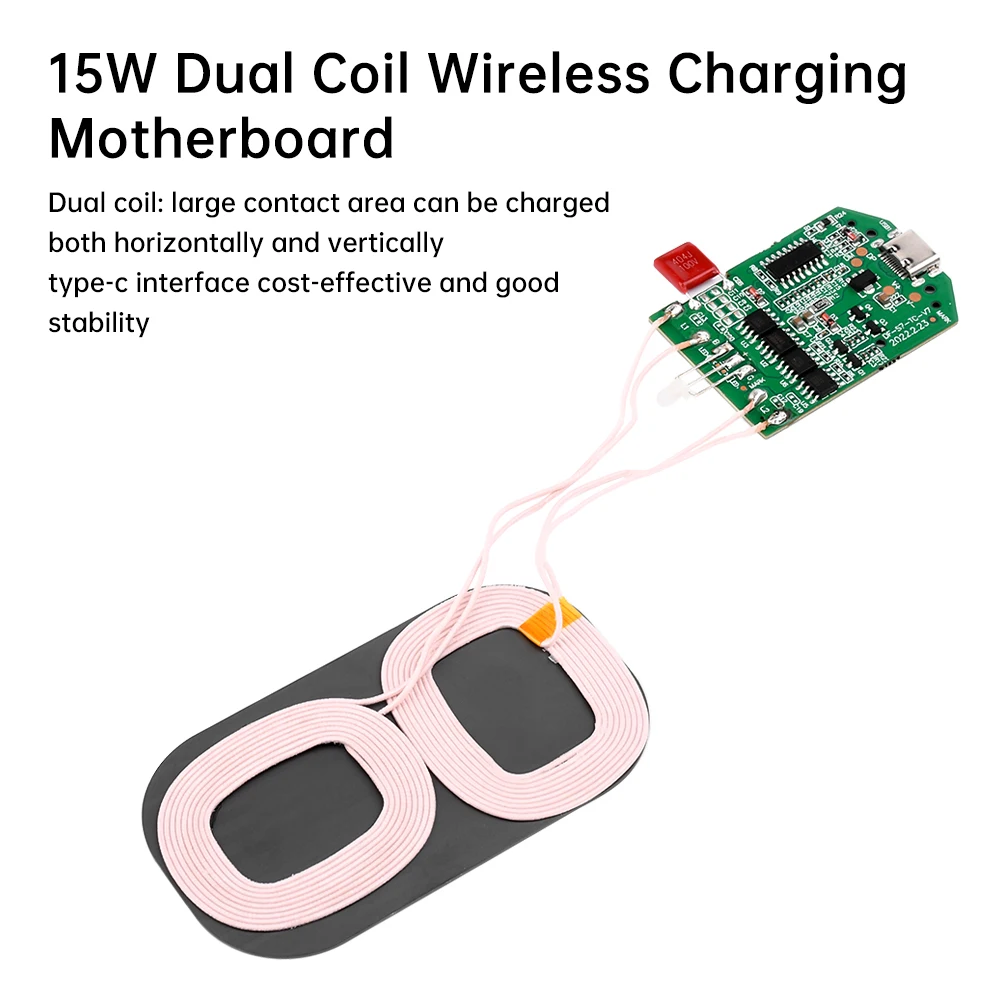

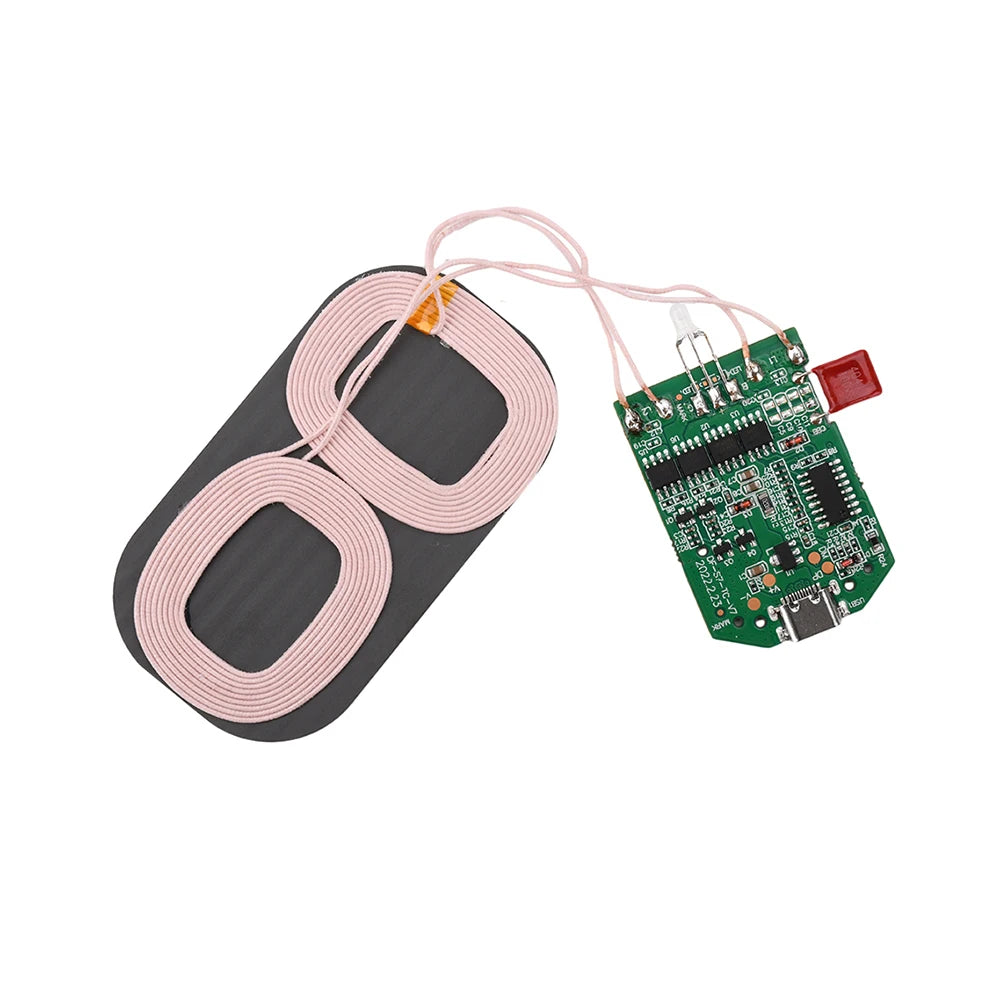

Coil size: 82mm*46mm (OD)

Package include:

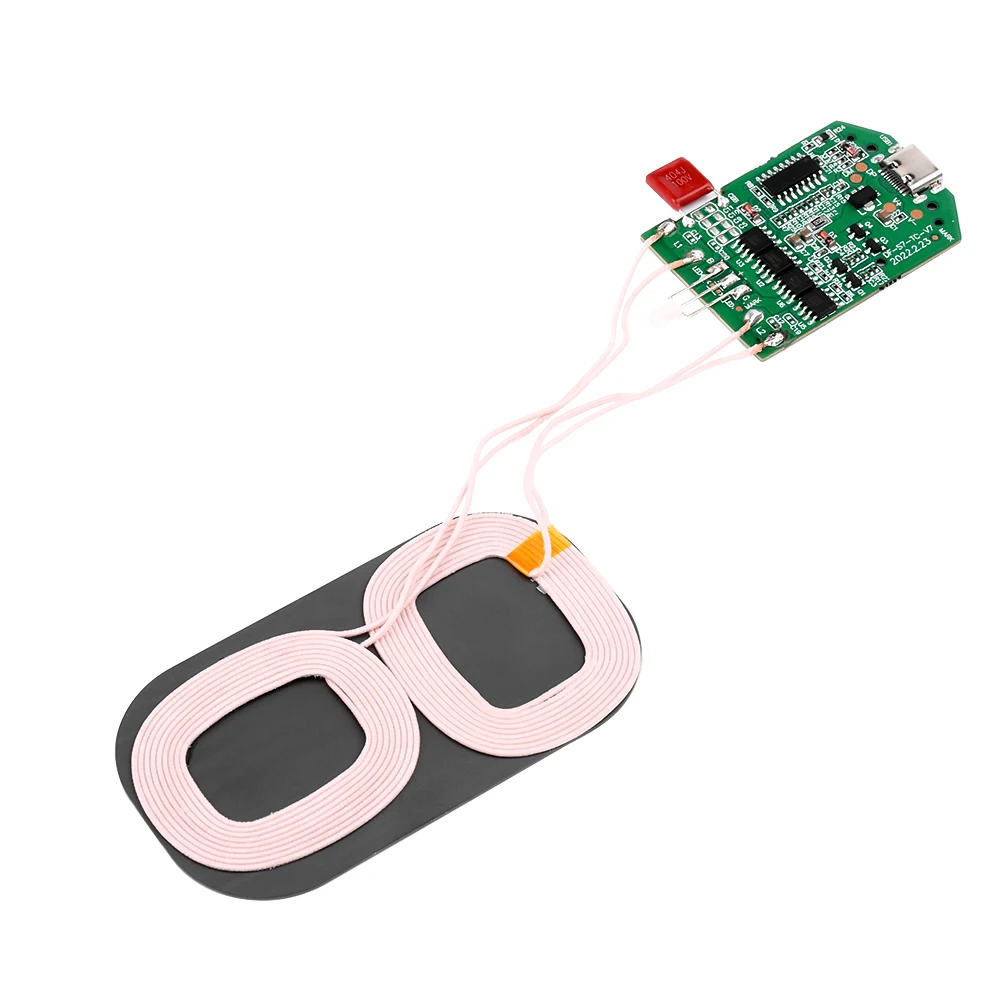

Wireless charging transmitter module X1
