RF433Mhz Wireless Remote Control 12V ON OFF Switch Module Home Garage Door Light Switch 220V 110V 10A Breaker Wall Switch Sets
Set 1
$3.39
Sale price
$3.39
Regular price
$3.39
Skip to product information
RF433Mhz Wireless Remote Control 12V ON OFF Switch Module Home Garage Door Light Switch 220V 110V 10A Breaker Wall Switch Sets
$3.39
Sale price
$3.39
Regular price
$3.39
SPECIFICATIONS
Brand Name: GGBEE
Breaker: AC 220V 110V
Certification: CE,ce
Choice: yes
Current: 10A
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
Features: RF 433MHz
High-concerned chemical: None
Is Smart Device: no
Item Type: SWITCHES
Material: Plastic,Plastic
Model Number: 433MHz Smart Switch
Origin: Mainland China
Remote: DC 12V
Switch Type: Remote Control,Push Button Switch

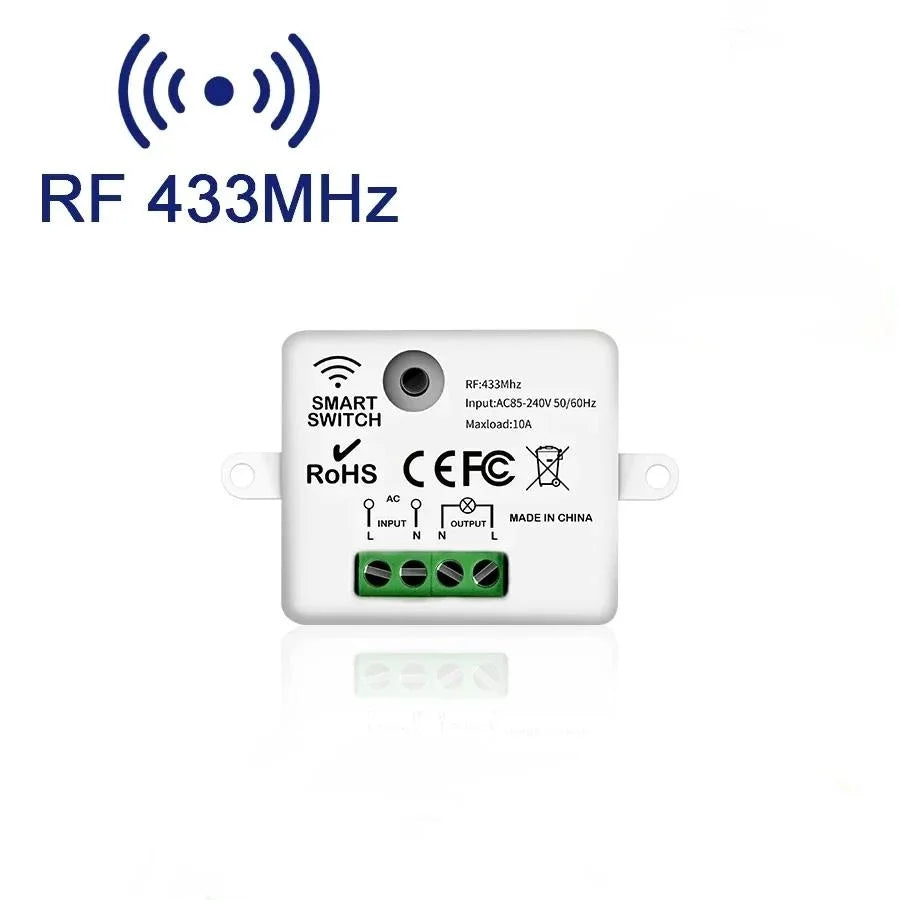

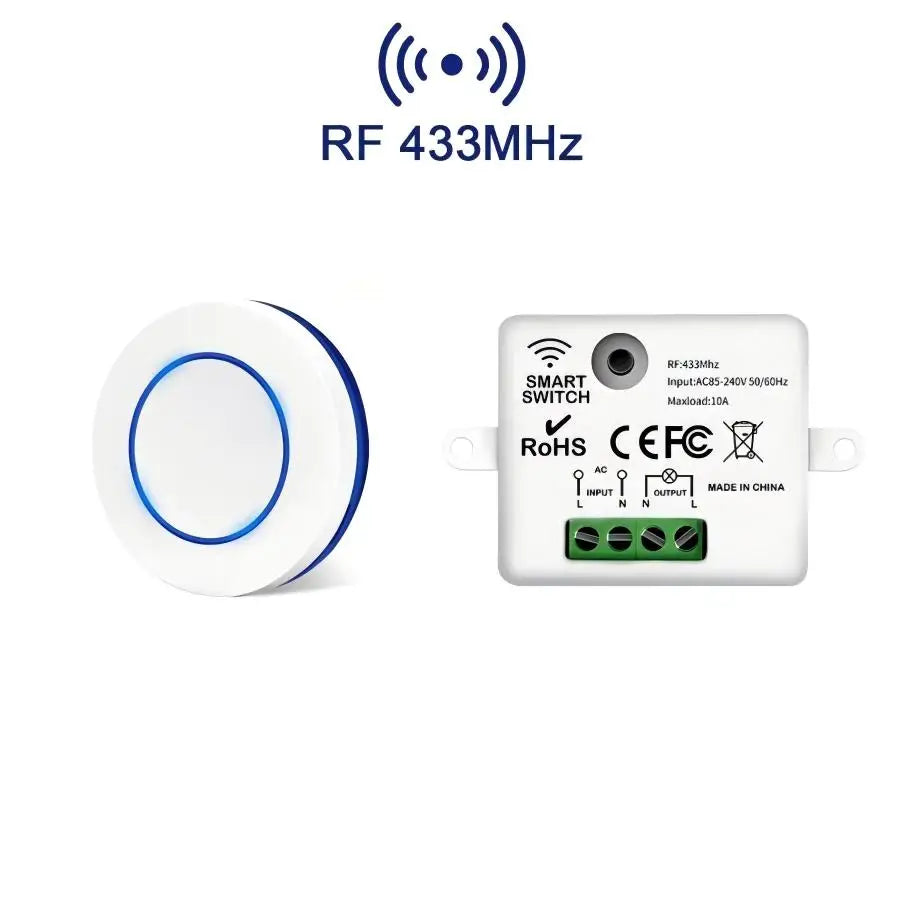

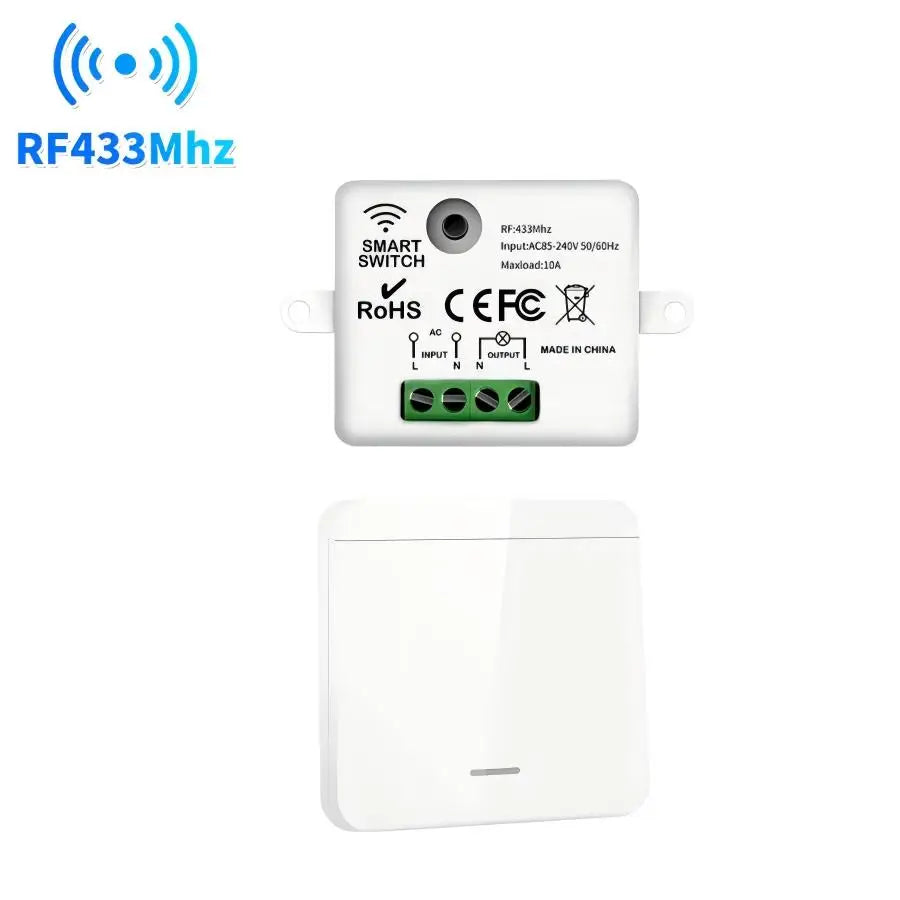

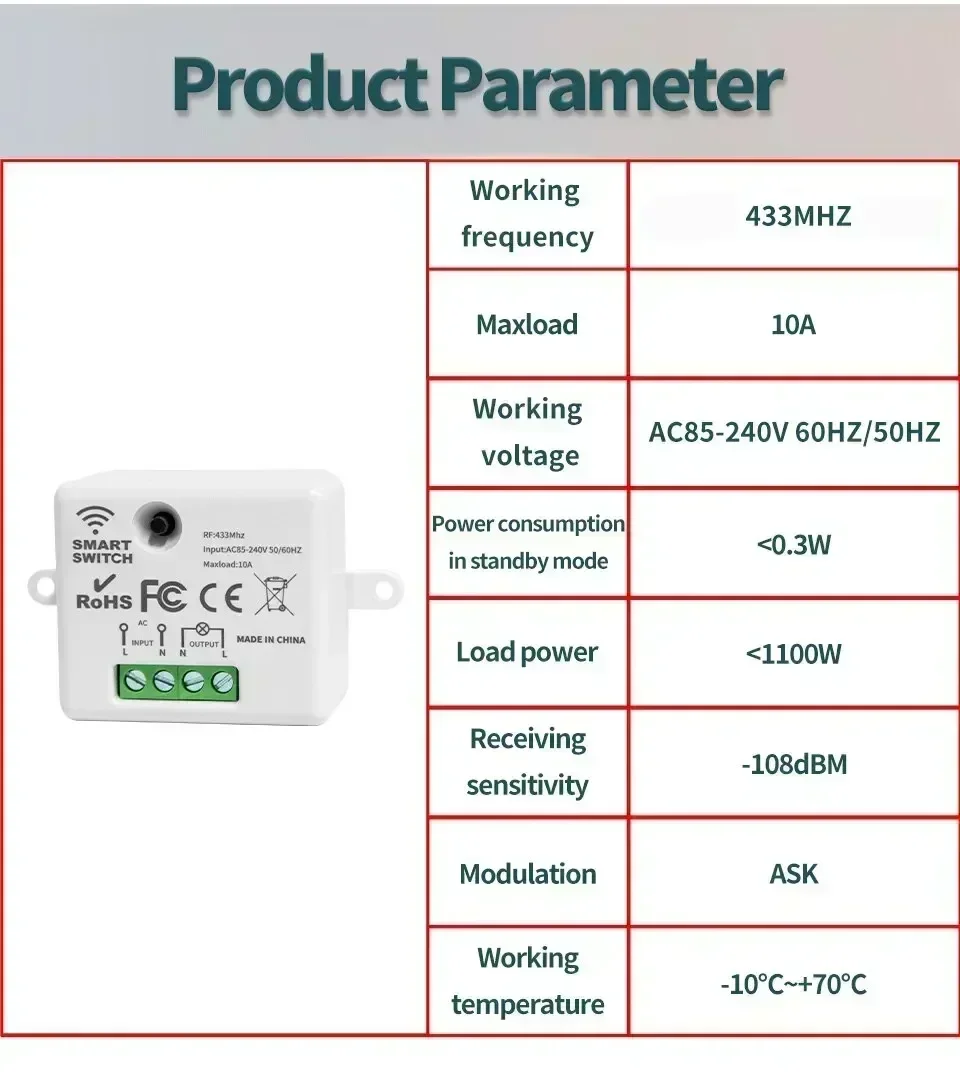

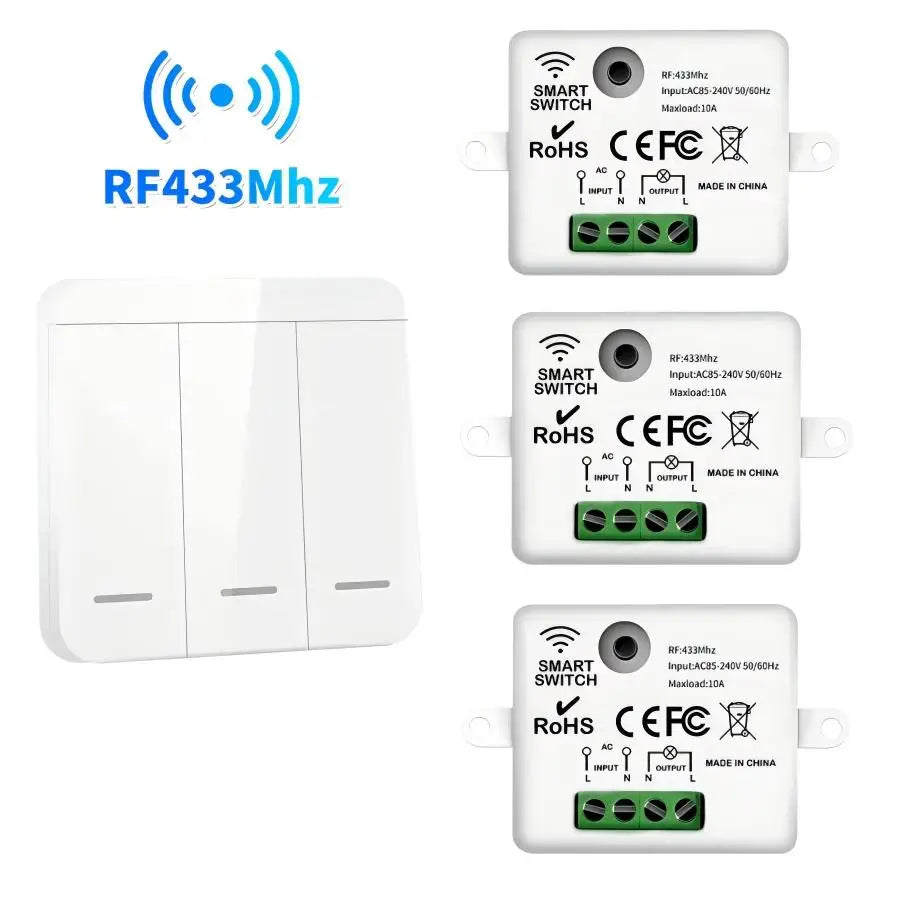

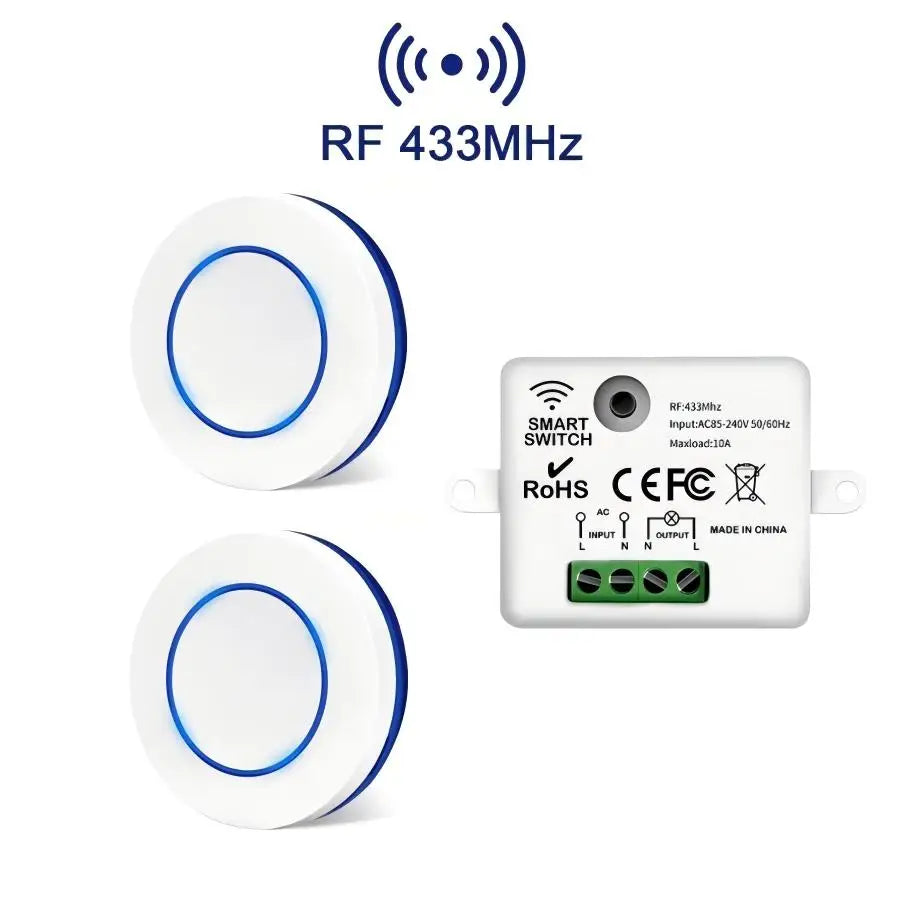

1.Controller (Receiver):
Working voltage: AC85-240V 60HZ/50HZ
Working frequency: 433MHZ
Power consumption in standby mode: <0.3W
Load power: <1100W
Receiving sensitivity: -108dBM
Working way:wireless control
Coding way: learning code
Modulation: ASK
Working temperature: -10*C~+70"C
Size: 47.4*42*22.8 (mm)
2.Transmitter (Remote):
Operating frequency: 433MHz
Power by 2 Pcs 3V CR2016 Battery (Battery included )
Material: PVC;
Button: 2 buttons;
Size: 60mm x 30mm;
Operating voltage: 3V ;
Operating Current: 12mA;
Transmitting power: 10mw;
Modulation mode: ASK (AM).
Encoding type: Learning.
Transfers distance: 20~50m

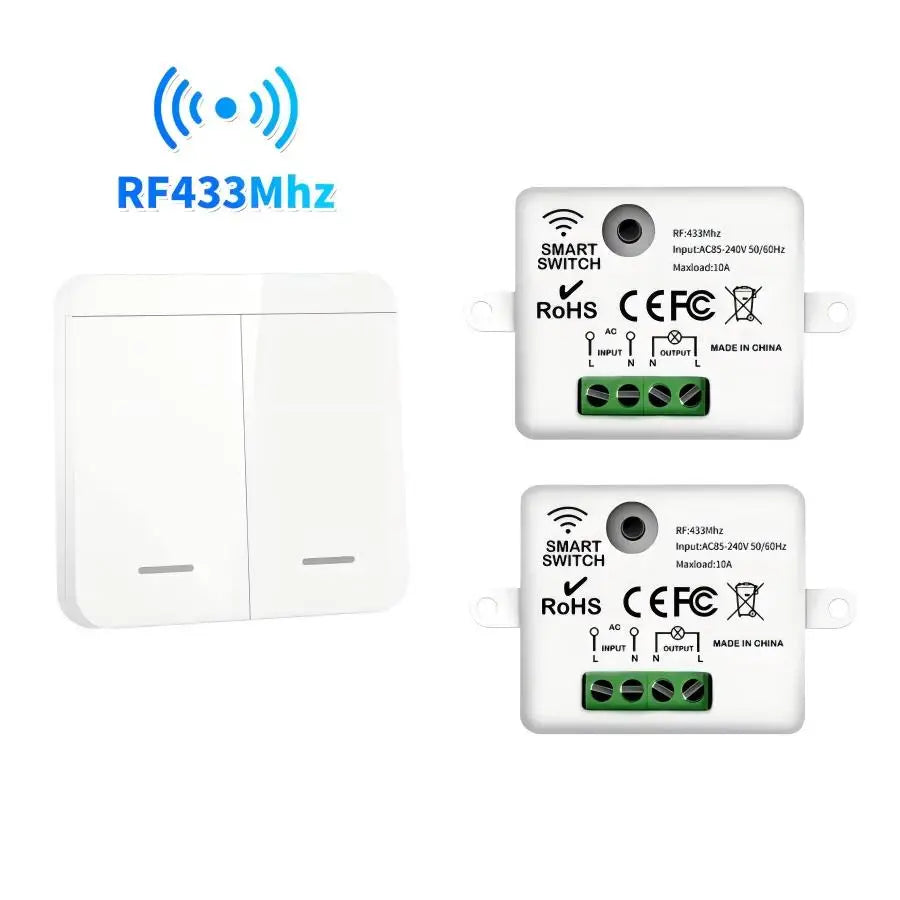

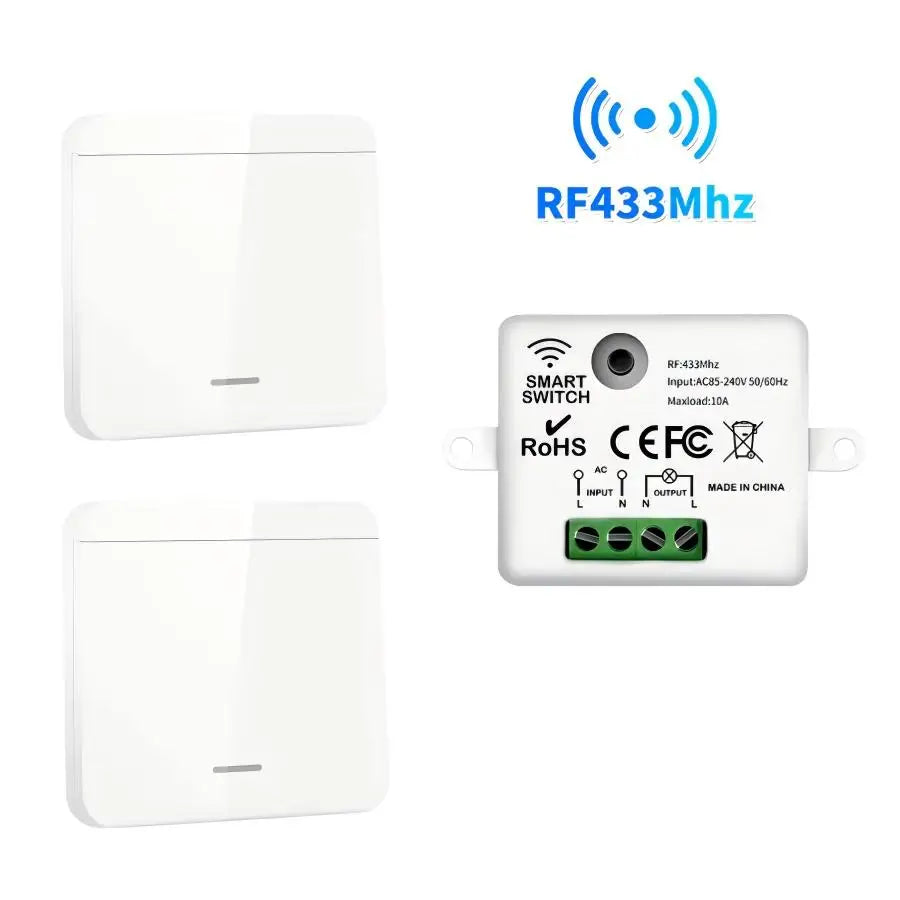

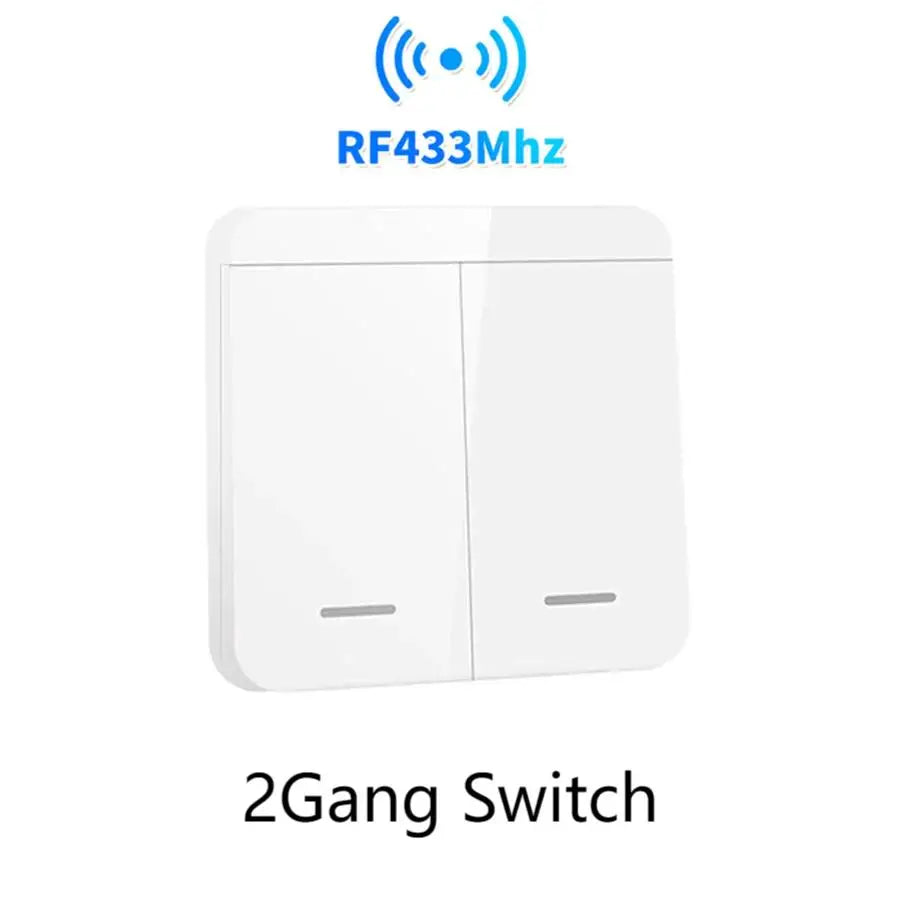

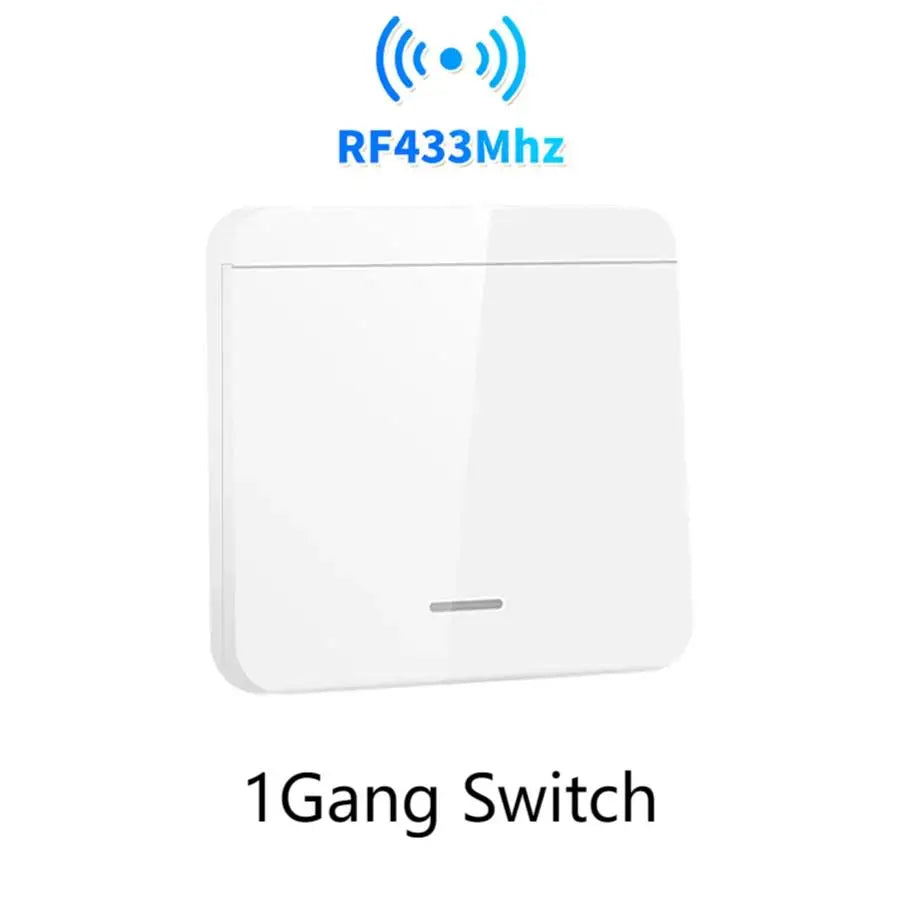

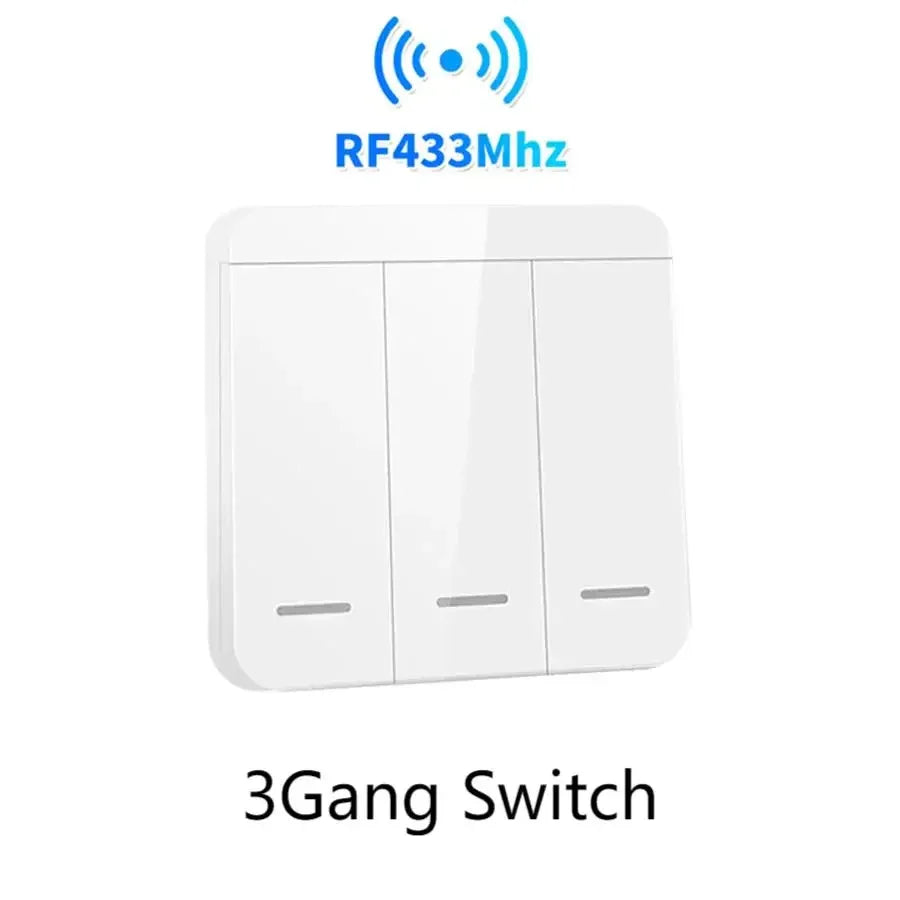

3.Wireless Wall Switch:
Working voltage: DC3.0V
working frequency:433MHZ
Power consumption in standby mode:<1uA
Transmitter power: <10mW
Working way: wireless control
Coding way: EV1527 learning code
Modulation: ASK
Working temperature:-10"C~+70*C

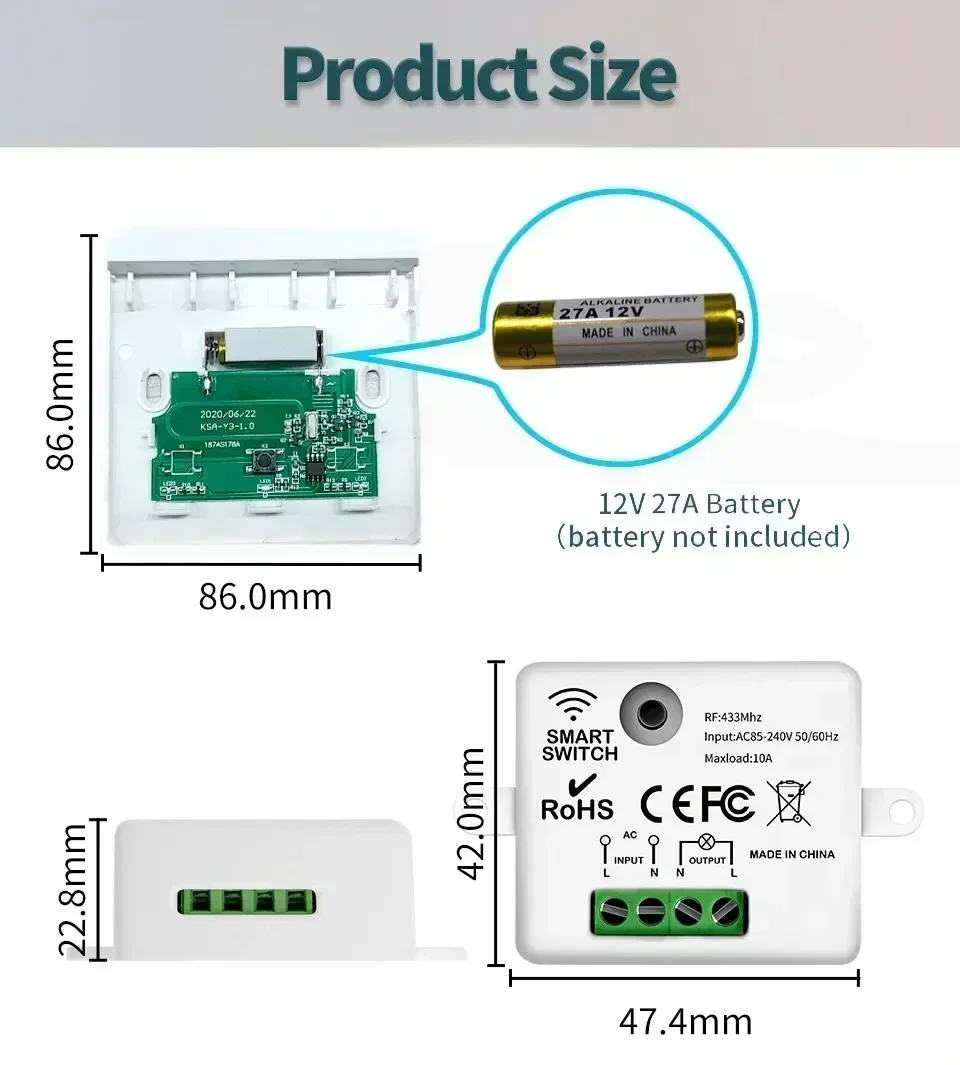

Size: 86*86*15mm

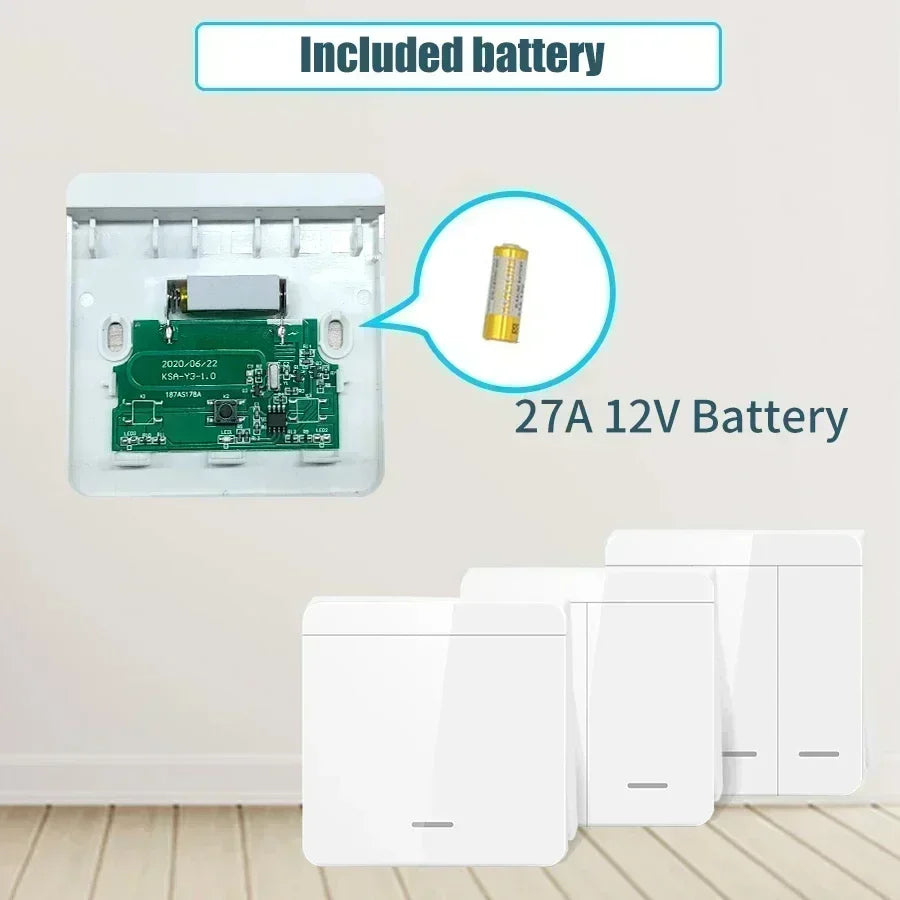

Battery:work with 12V 27A battery(battery not included)

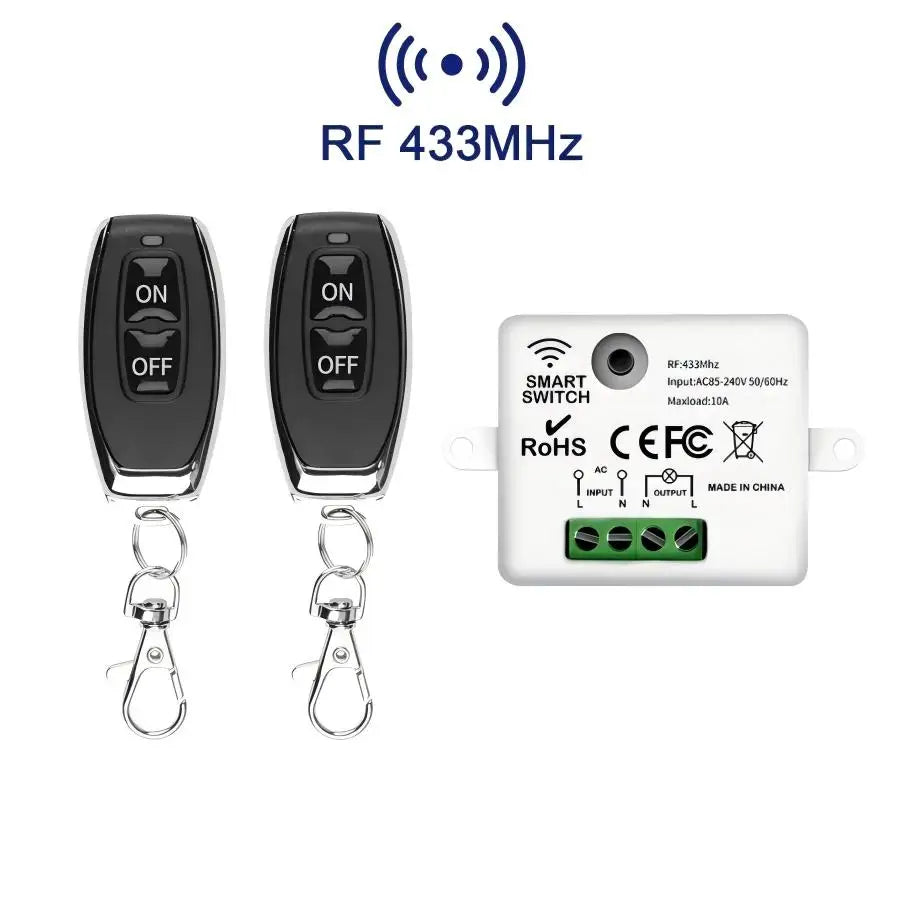

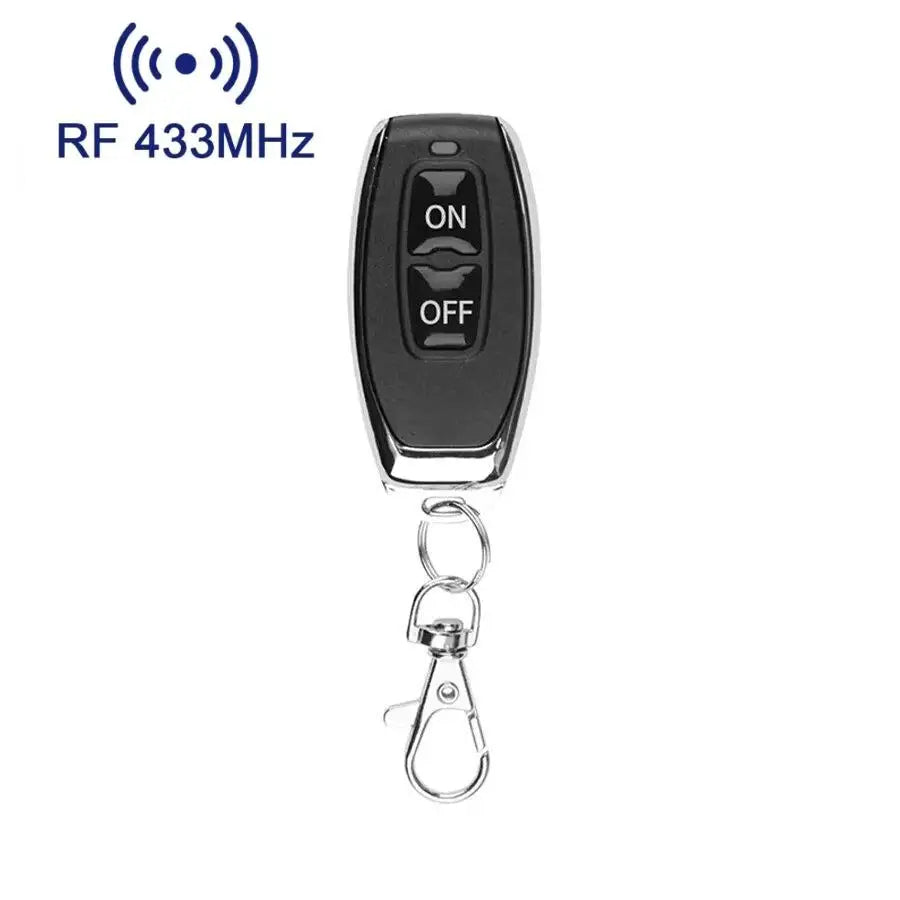

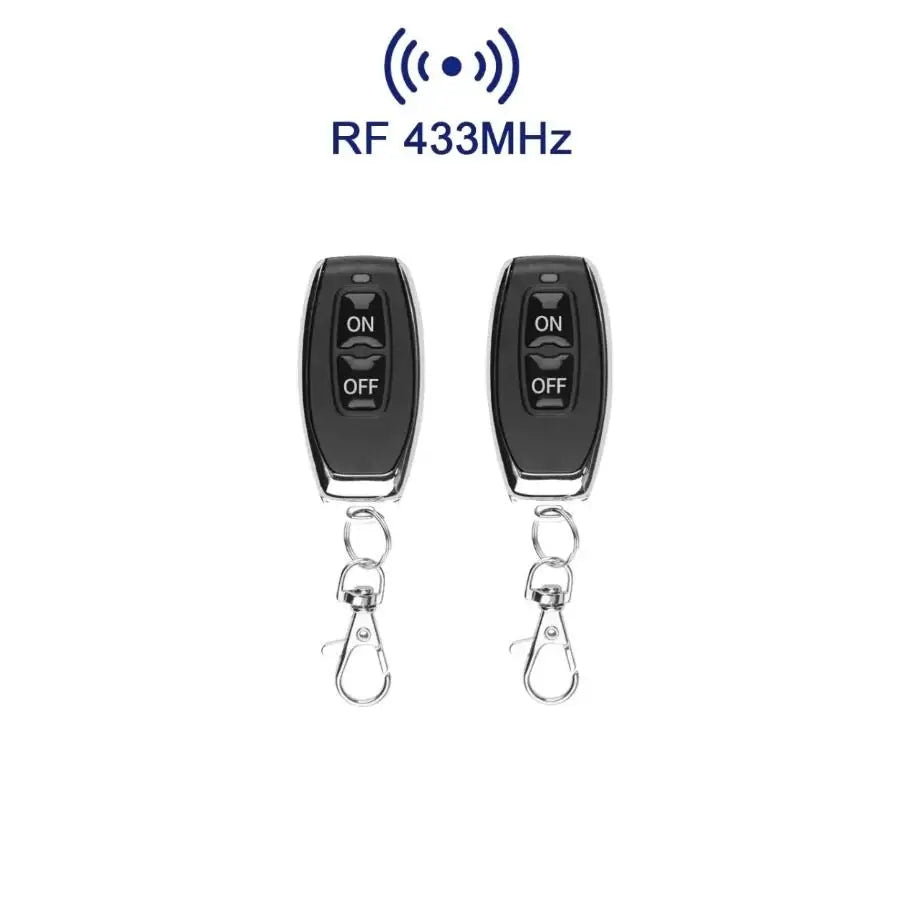

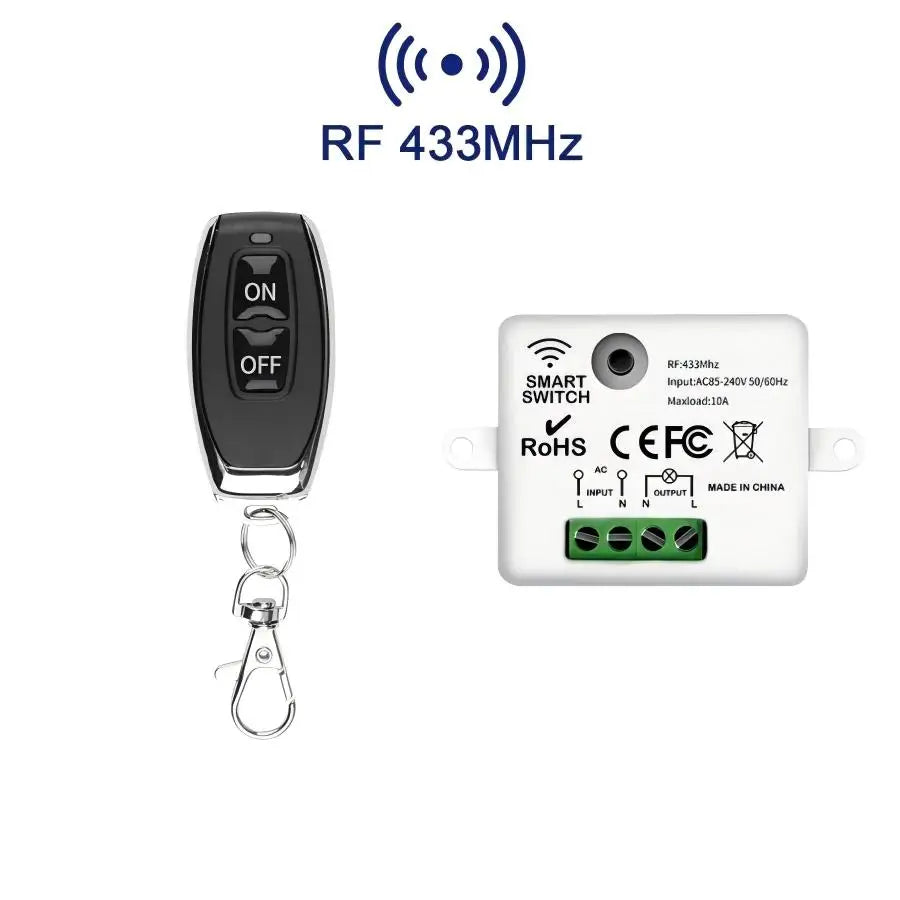

4.ON OFF Remote Controller:
Operating RF Frequency: 433MHz.
Coded System: 1527 Learning Code.
Working Voltage: DC 3V.
Working Current: <25mA
Transmitting Power: 10mW.
Wireless Operating Distance: 50m(Free Space).
Transmission Rate: 50 ~ 60KHz.
Frequency Deviation: +0.2MHz or -0.2MHz.
Color: Black.
Features：

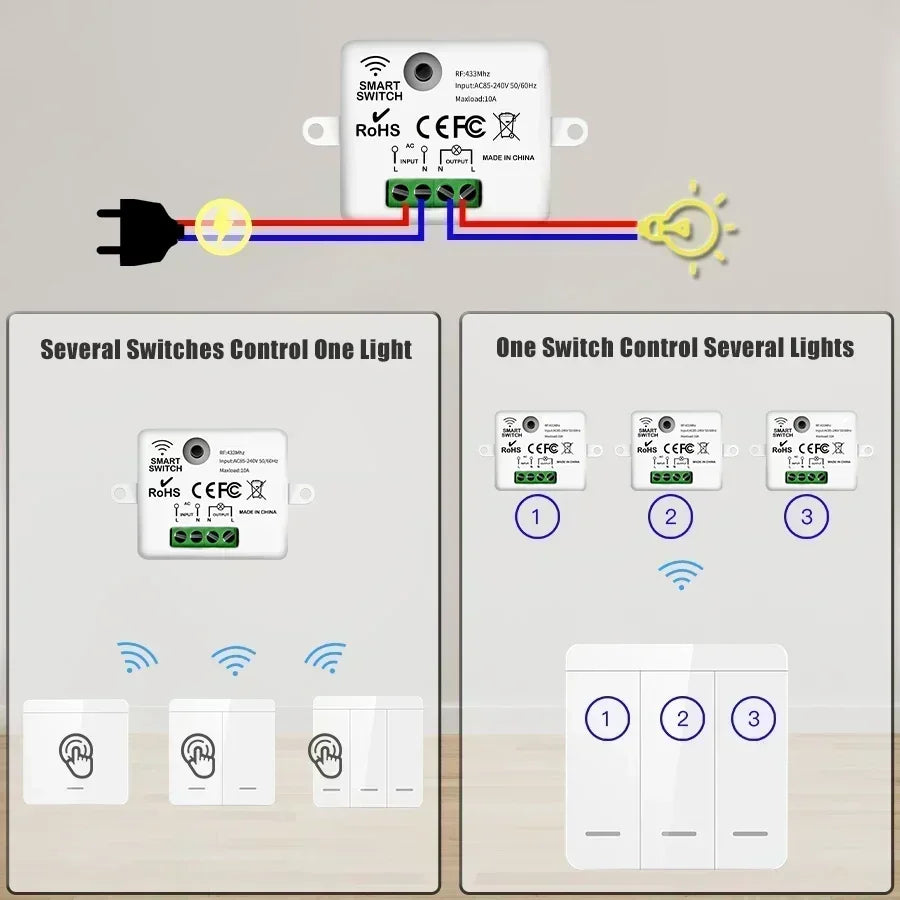

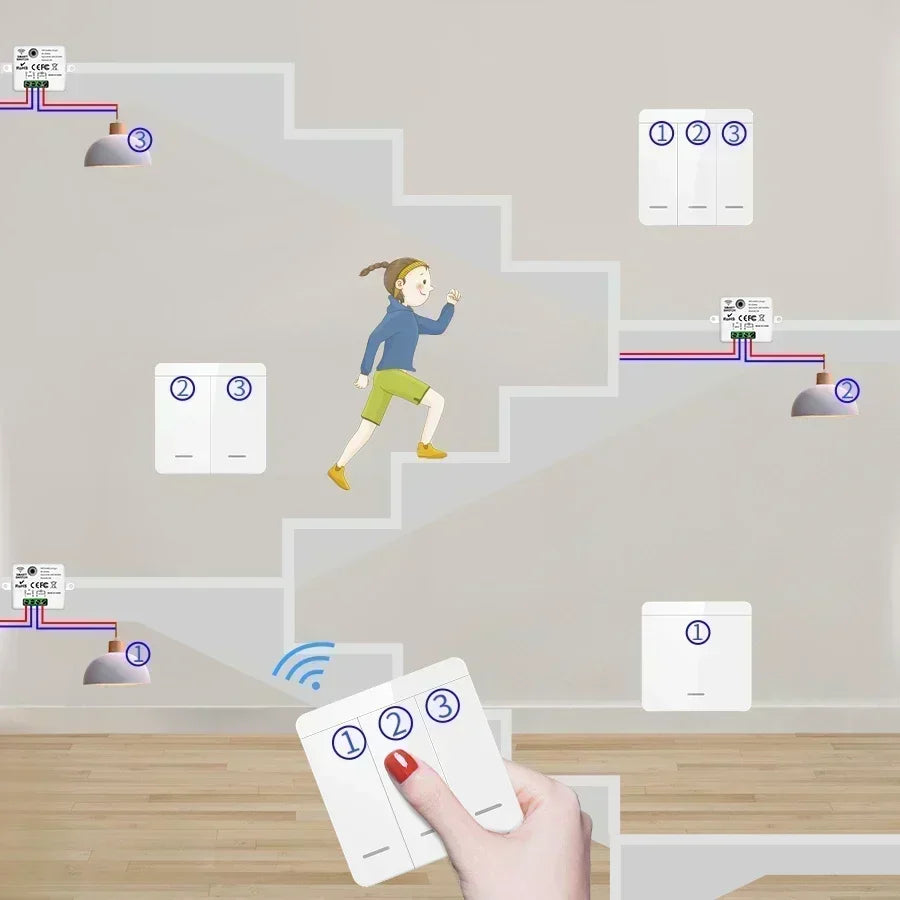

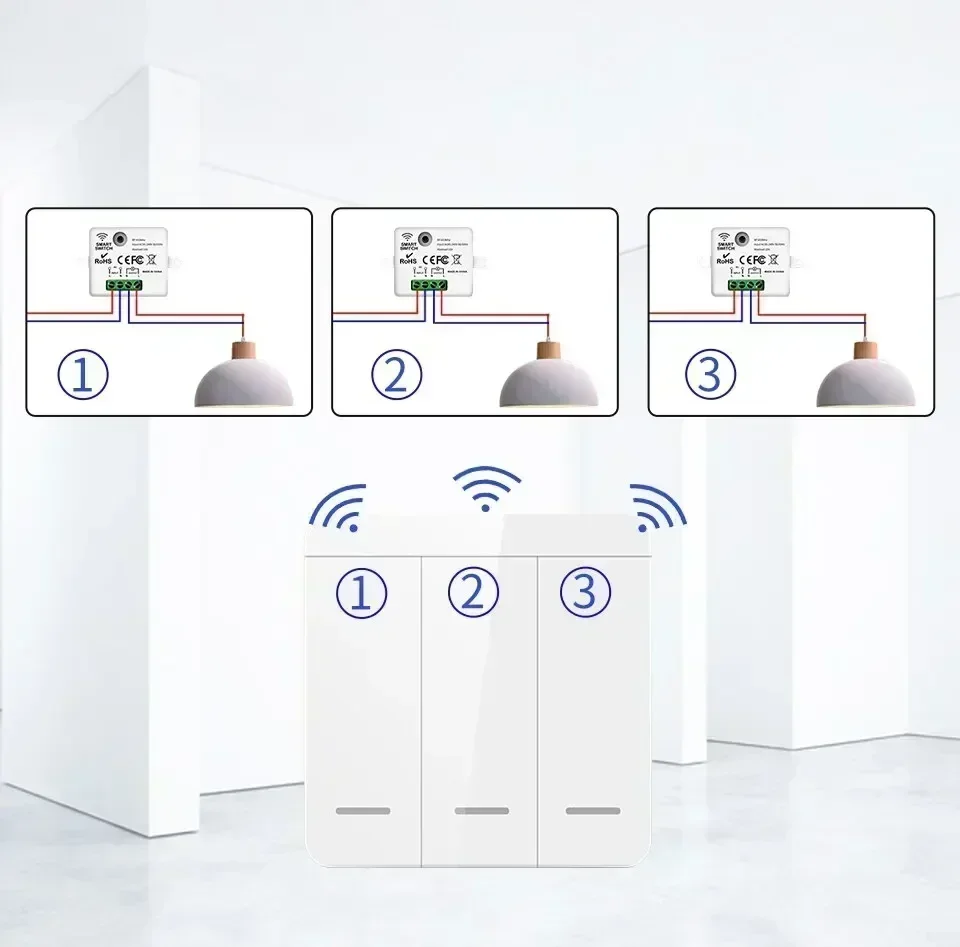

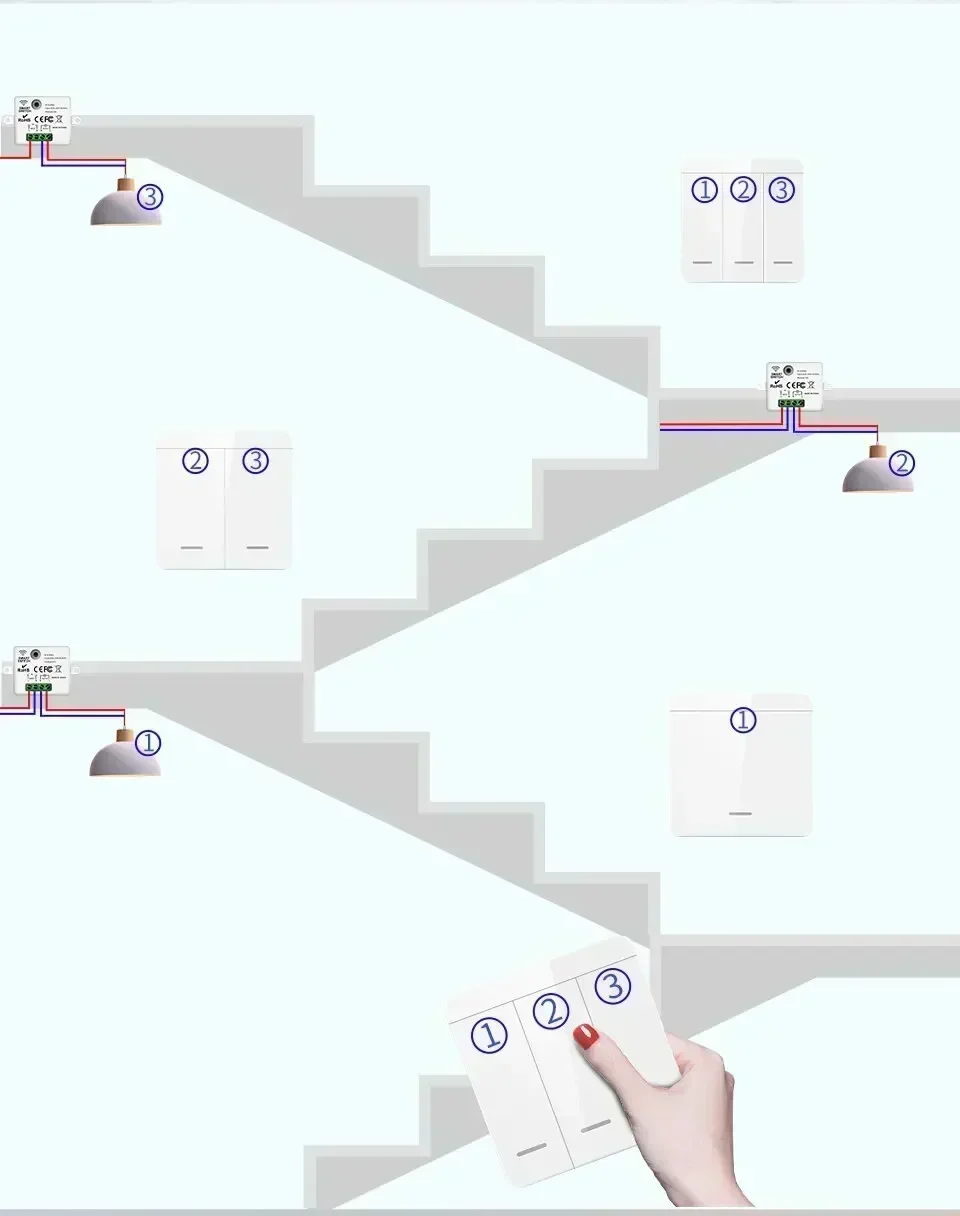

1.Multi switches can control different receivers.Save energy,avoid darkness.
2.Working with all kinds of Lights and Ceiling Fan.LED,CFL,Fluorescent lamp can load 300W,other can load 2500w.
3.It is a 86 wall panel that can be stuck onto anywhere. It is a learning code transmitter EV1527 IC Chip. It can be learned into most of the learning code receiver.
Setting way:

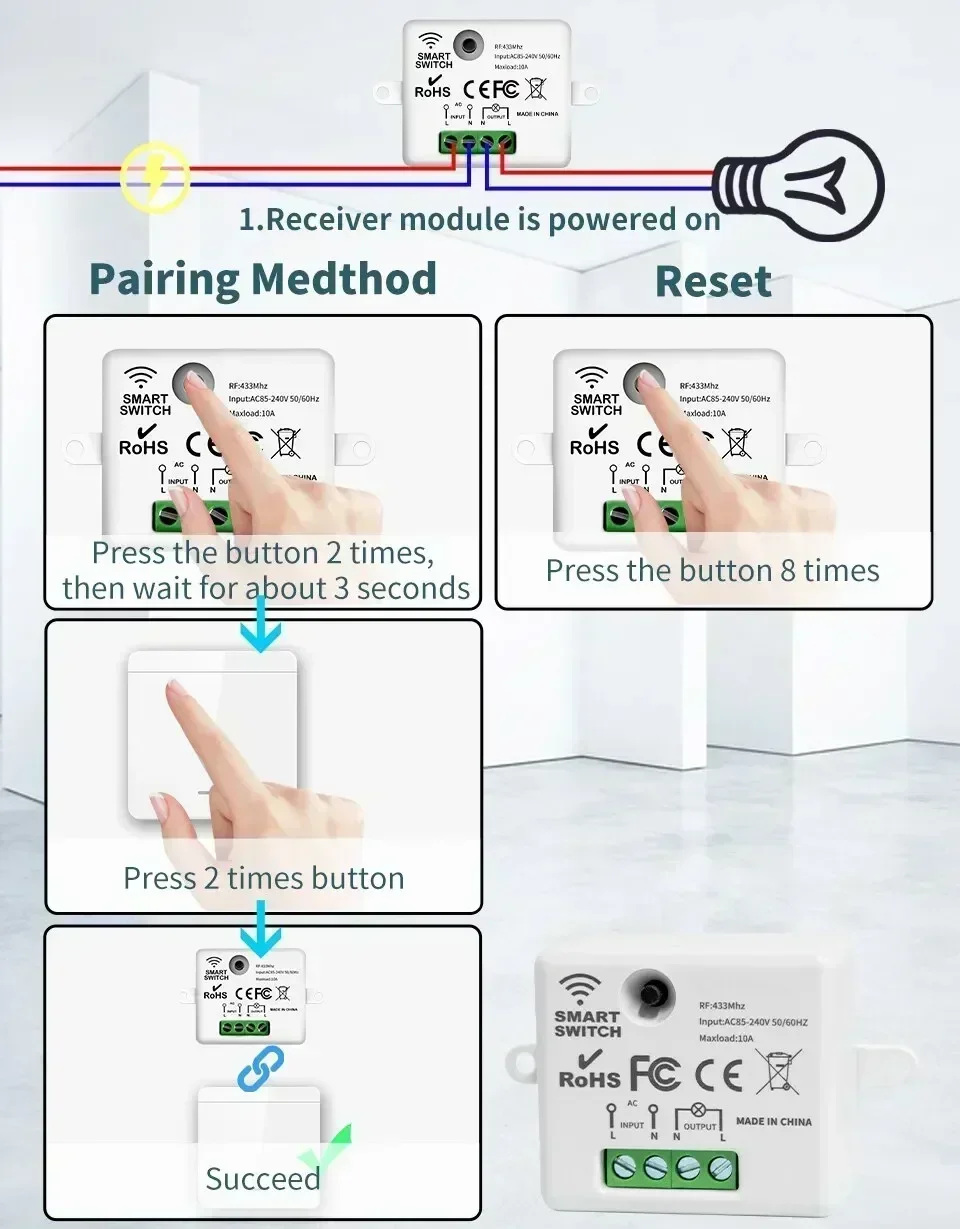

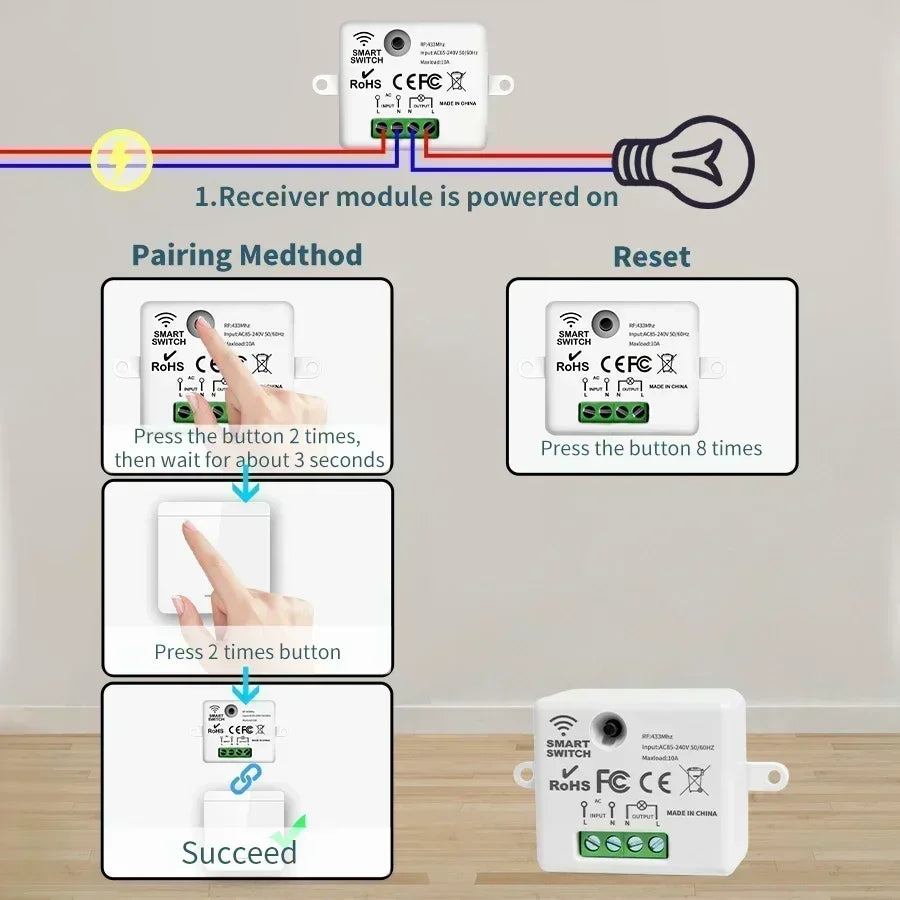

How to get the signal：
Step 1: Press the learning button(on the Receiver) twice. Wait for 3 seconds;
Step 2: Press one button on the remote control. Wait for 3 seconds. Succeed.
How to clear the signal：
Only one step :Press the learning button(on the Receiver) 8 times. Wait for 3 seconds;
Note:
Wall switch itself cannot control lights on off.It needs to work with rf receiver together.

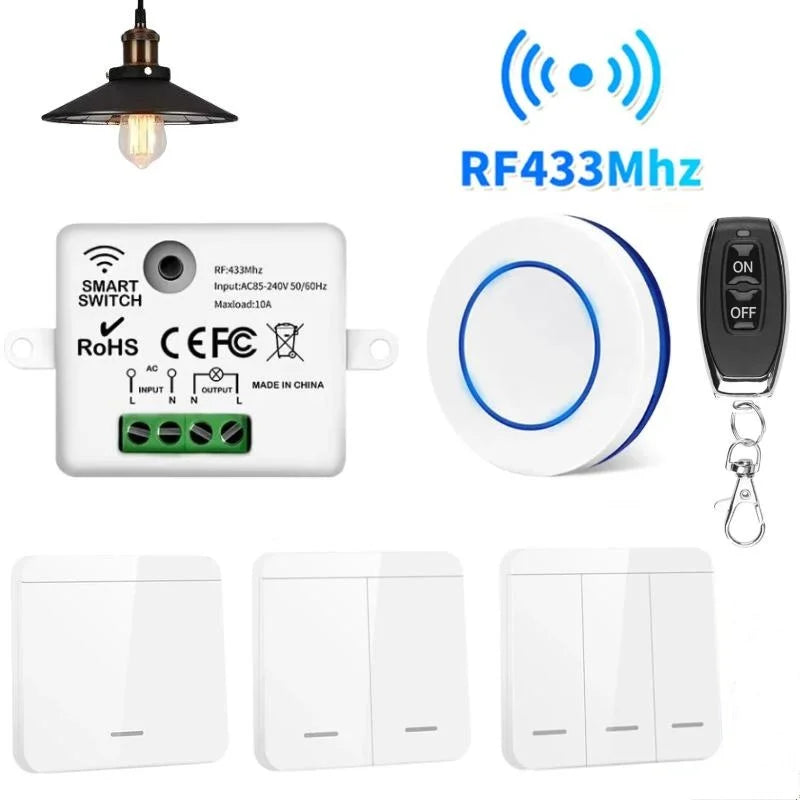

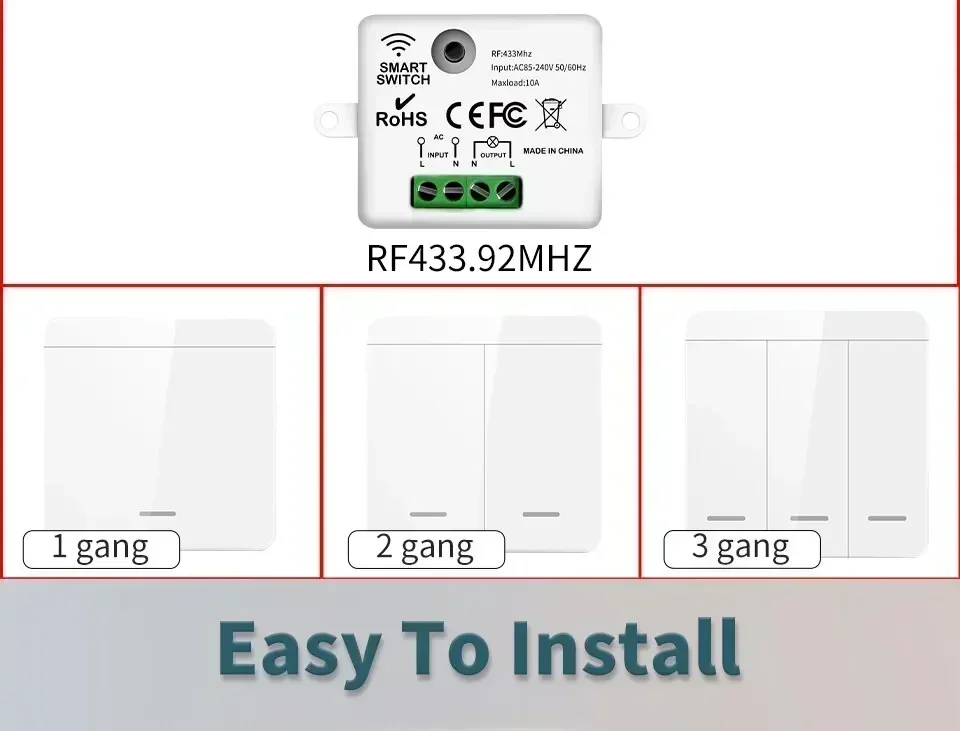

Product list:

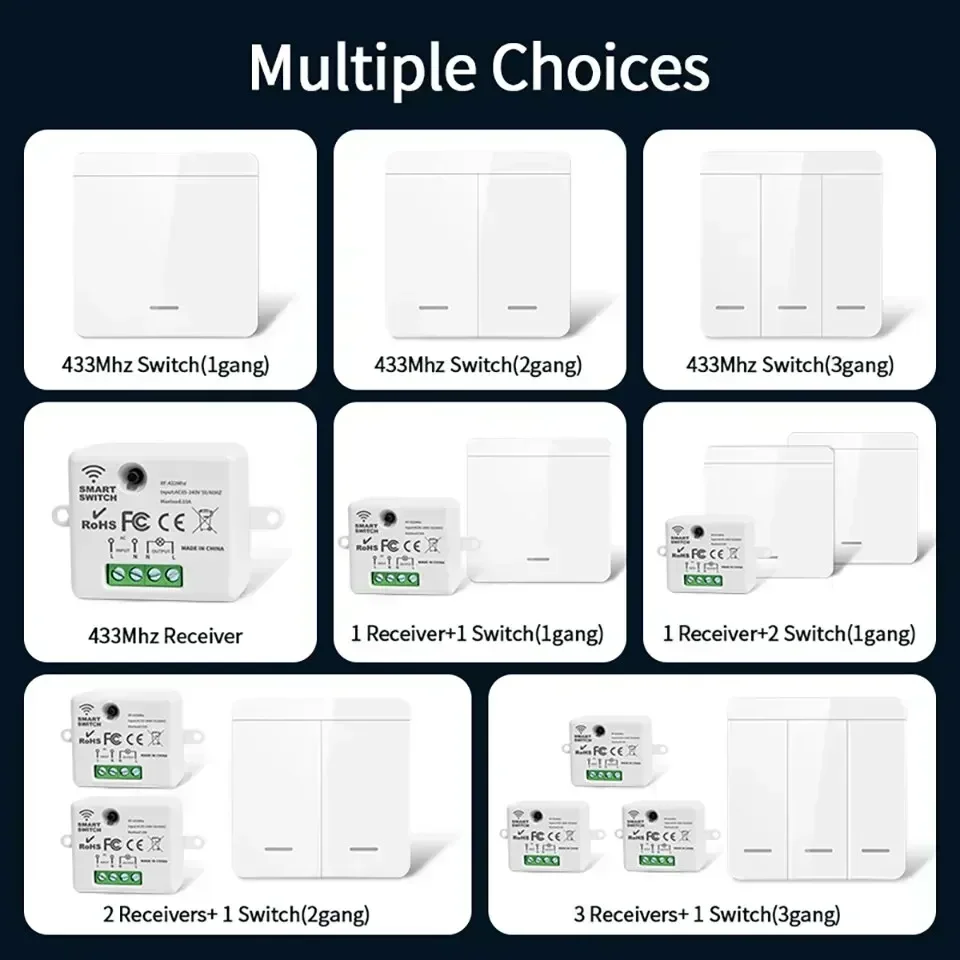

There are various combinations in the options, which are convenient to use, please purchase according to actual needs.
User manual

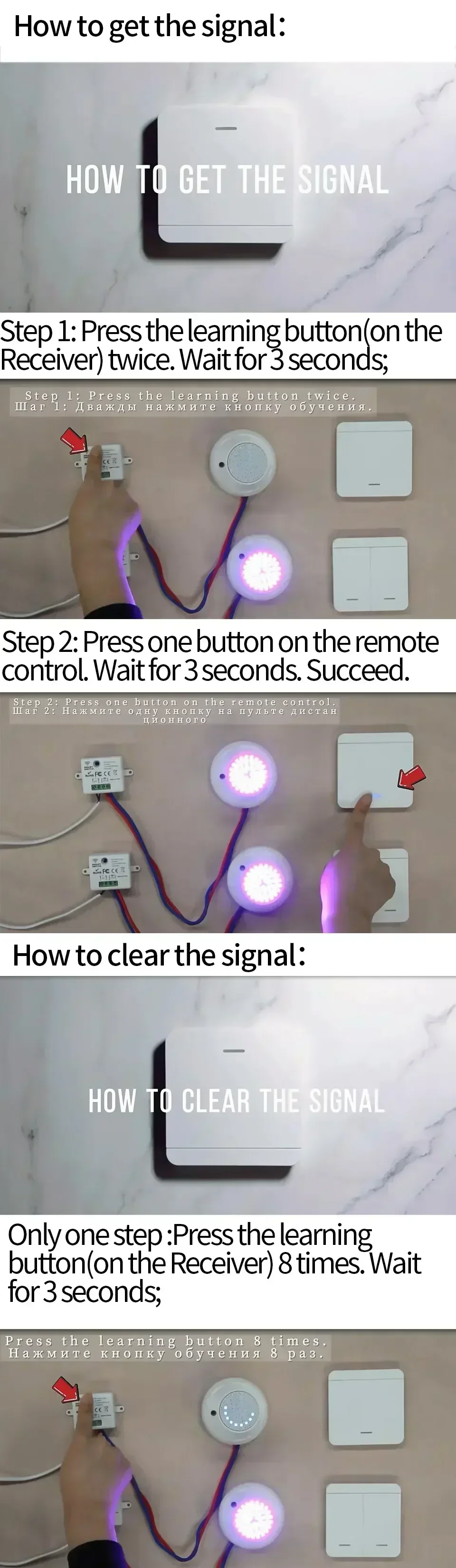

How to get the signal：
Step 1: Press the learning button(on the Receiver) twice. Wait for 3 seconds;
Step 2: Press one button on the remote control. Wait for 3 seconds. Succeed.
How to clear the signal：
Only one step :Press the learning button(on the Receiver) 8 times. Wait for 3 seconds;
