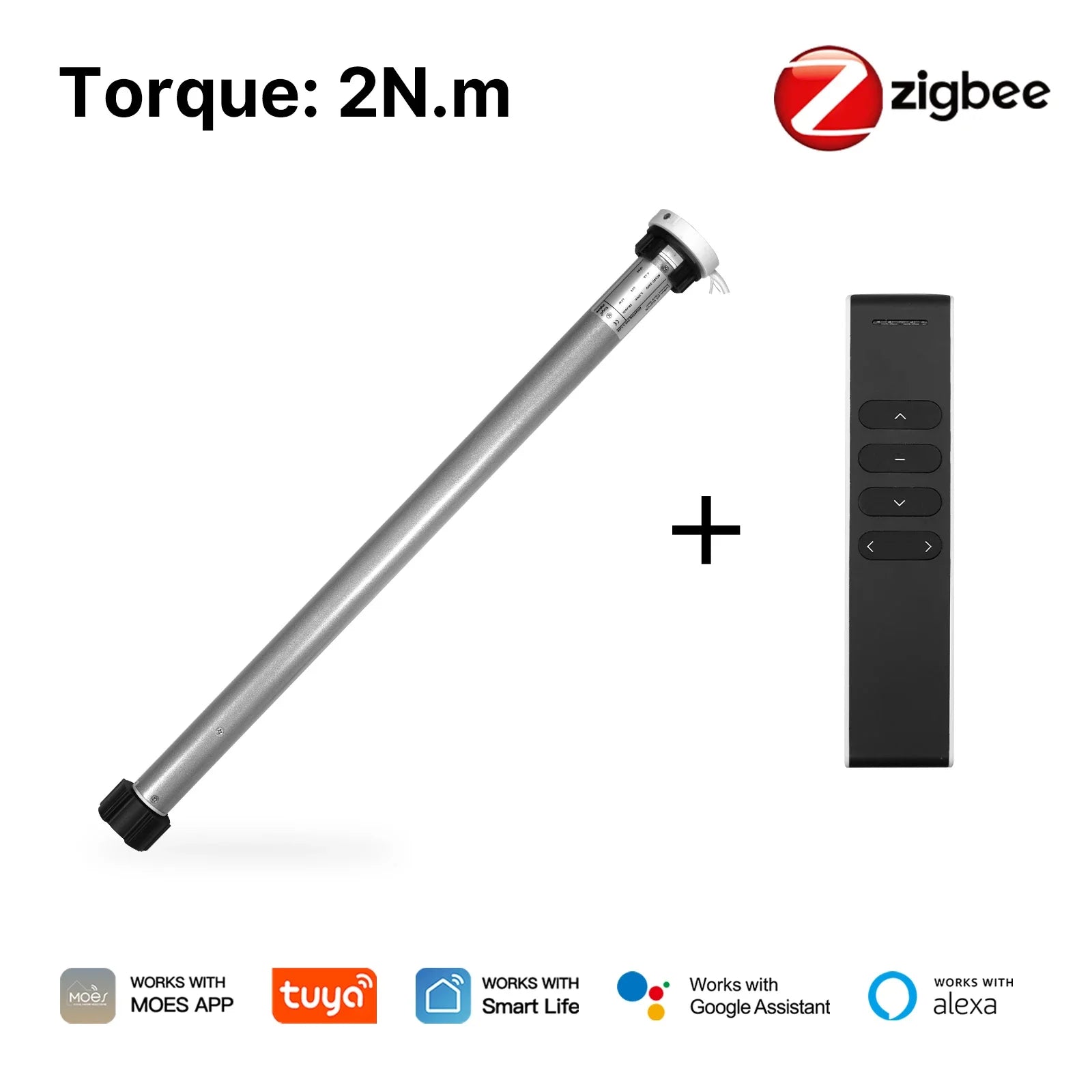

MOES Tuya Automatic Smart Zigbee Roller Shade Blinds Motor for 38mm Tube Remote Control work with Smart Life Alexa Google Home

$69.72

$69.72 $0.00

SPECIFICATIONS

Battery Included: Yes

Brand Name: MOES

Certification: CE

Choice: yes

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: None

Origin: Mainland China

Wattage: other

MOES Tuya Automatic Smart Zigbee Roller Shade Blinds Motor for 38mm Tube Remote Control work with Smart Life Alexa Google Home
By Moes

Important Notice：
This motor is hardwired only and requires a constant power supply.
It does not contain a built-in battery, it is not rechargeable, and it cannot be powered by batteries.
Please make sure a proper hardwired connection is available before purchasing.

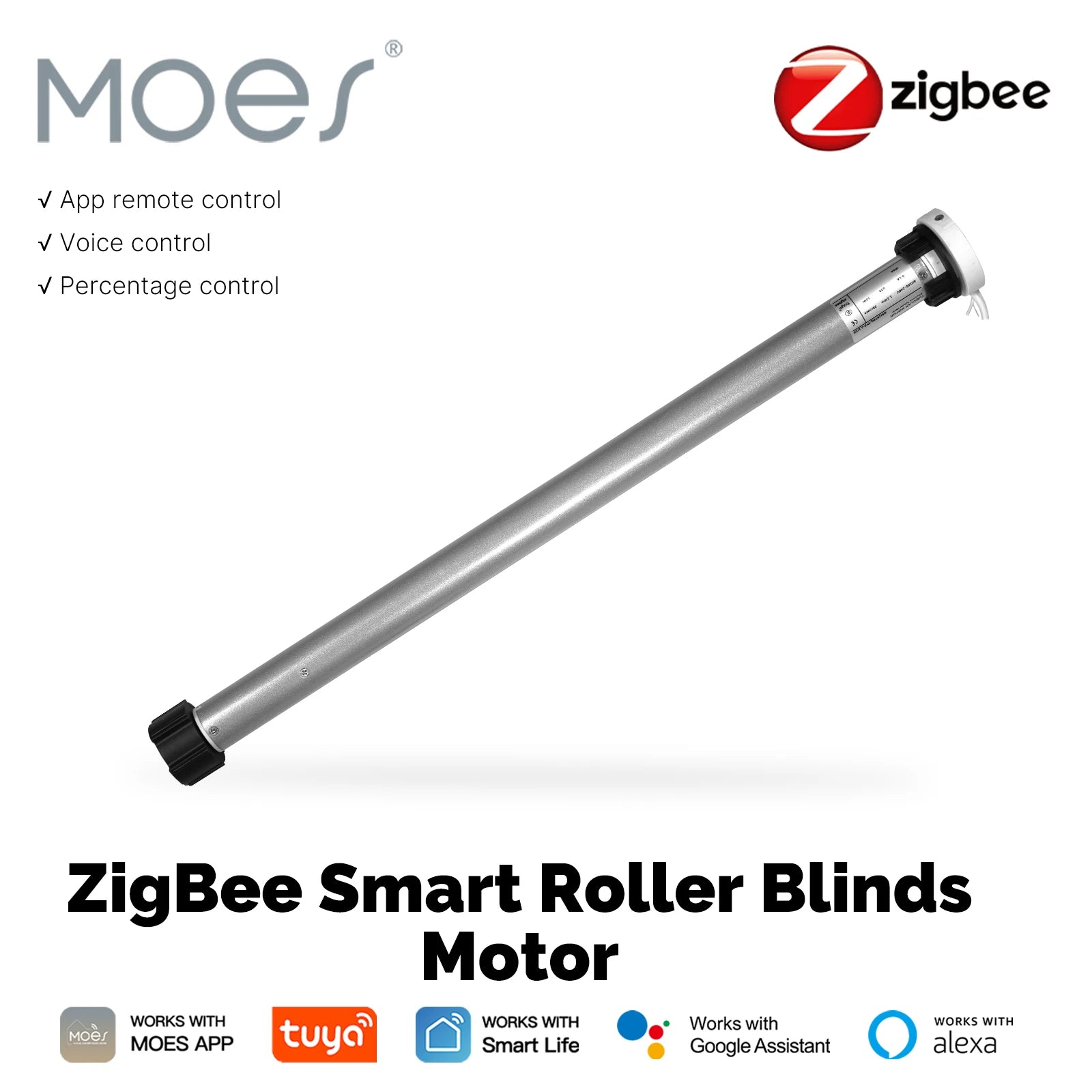

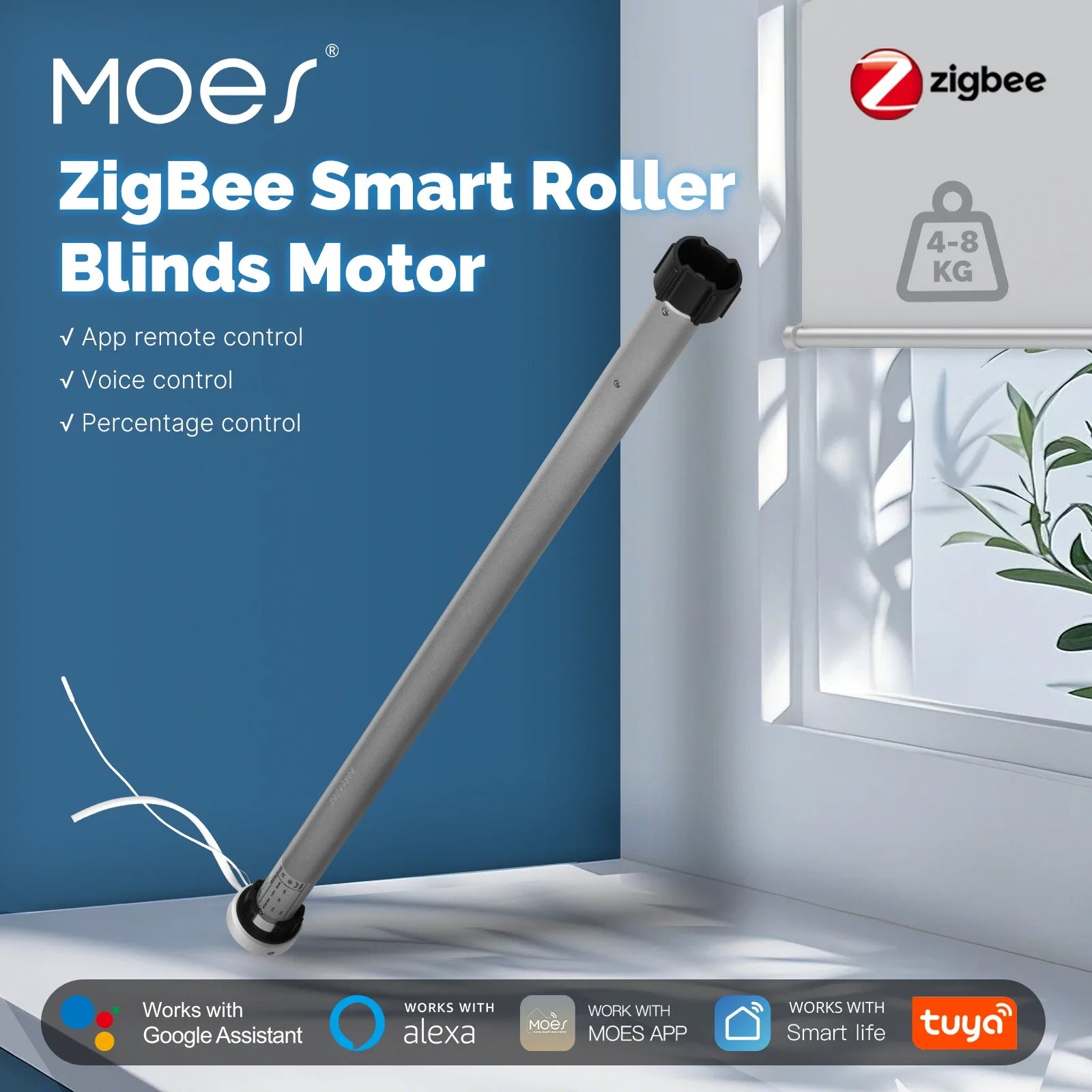

ZigBee Smart Roller Blinds Motor

App Remote Control

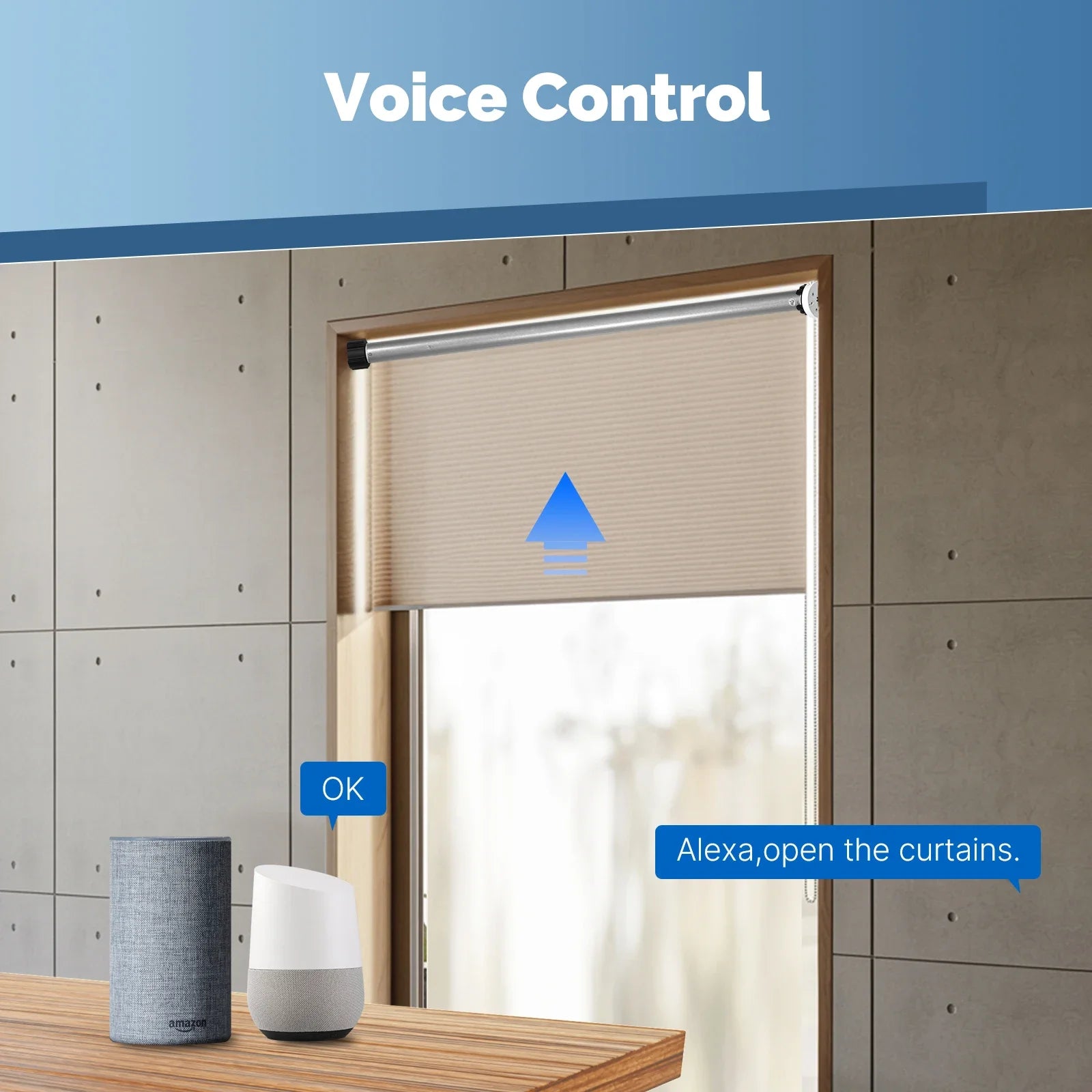

Voice Control

Timing Function

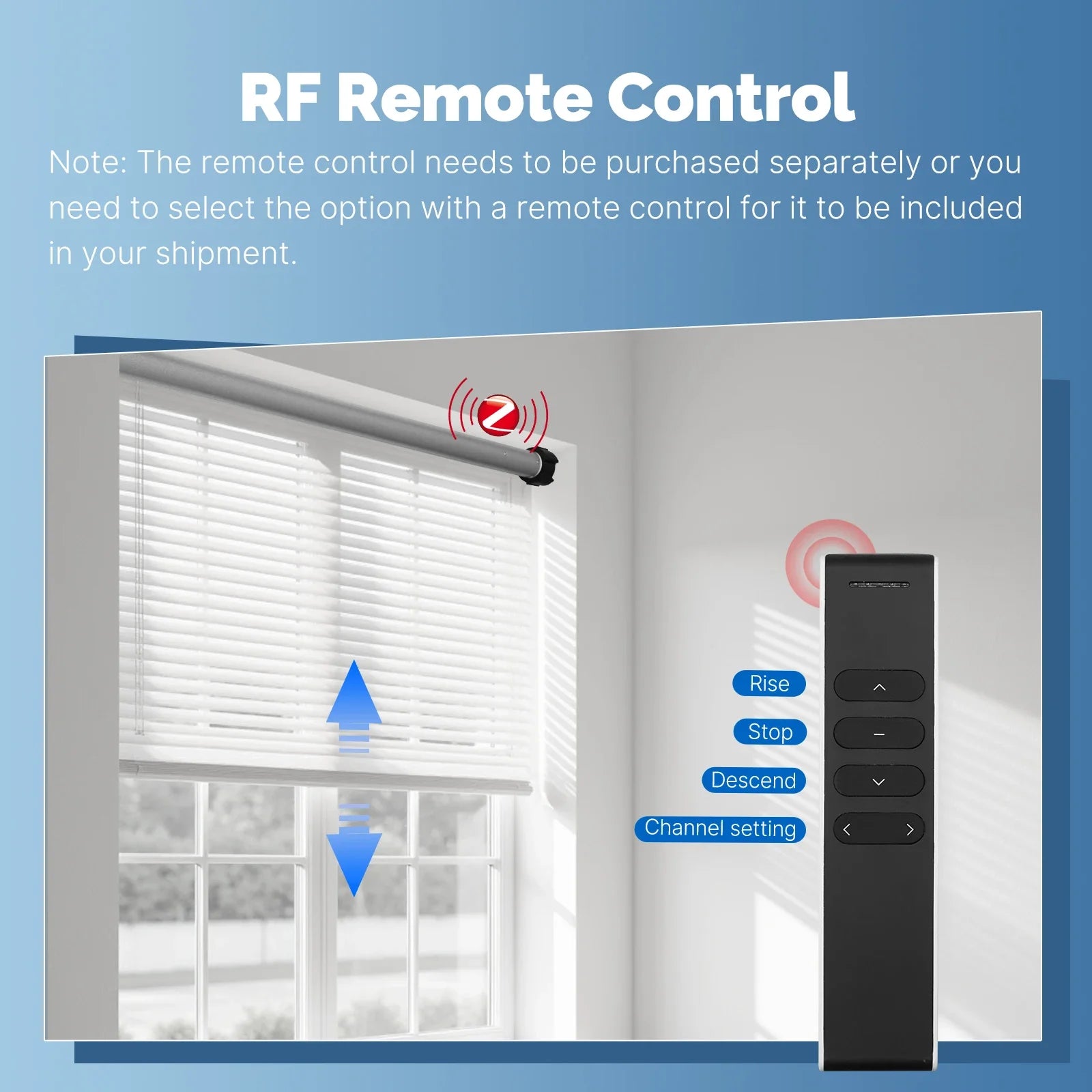

RF Remote Control

Note:The remote control needs to be purchased separately or you need to select the option with a remote control for it to be included in your shipment.

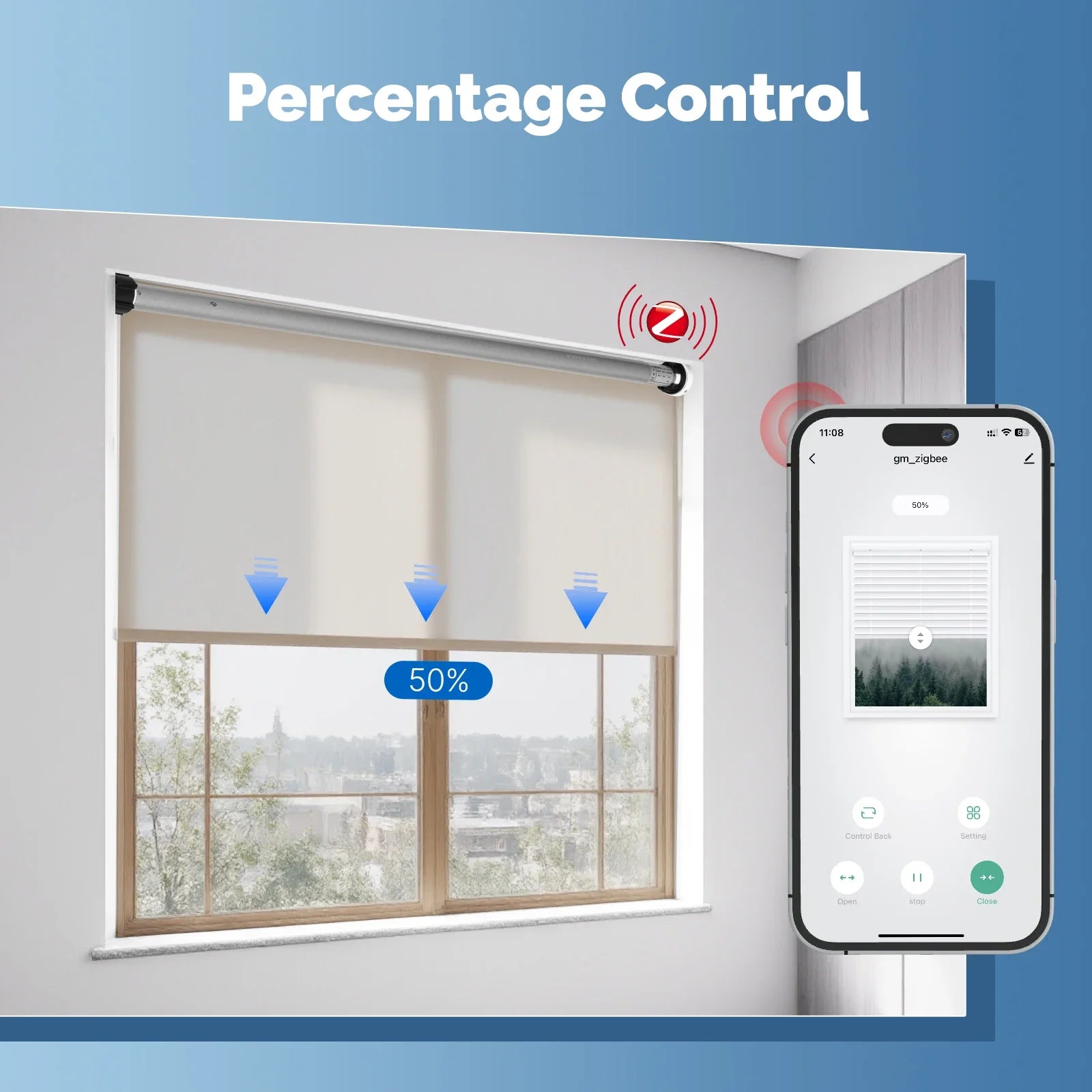

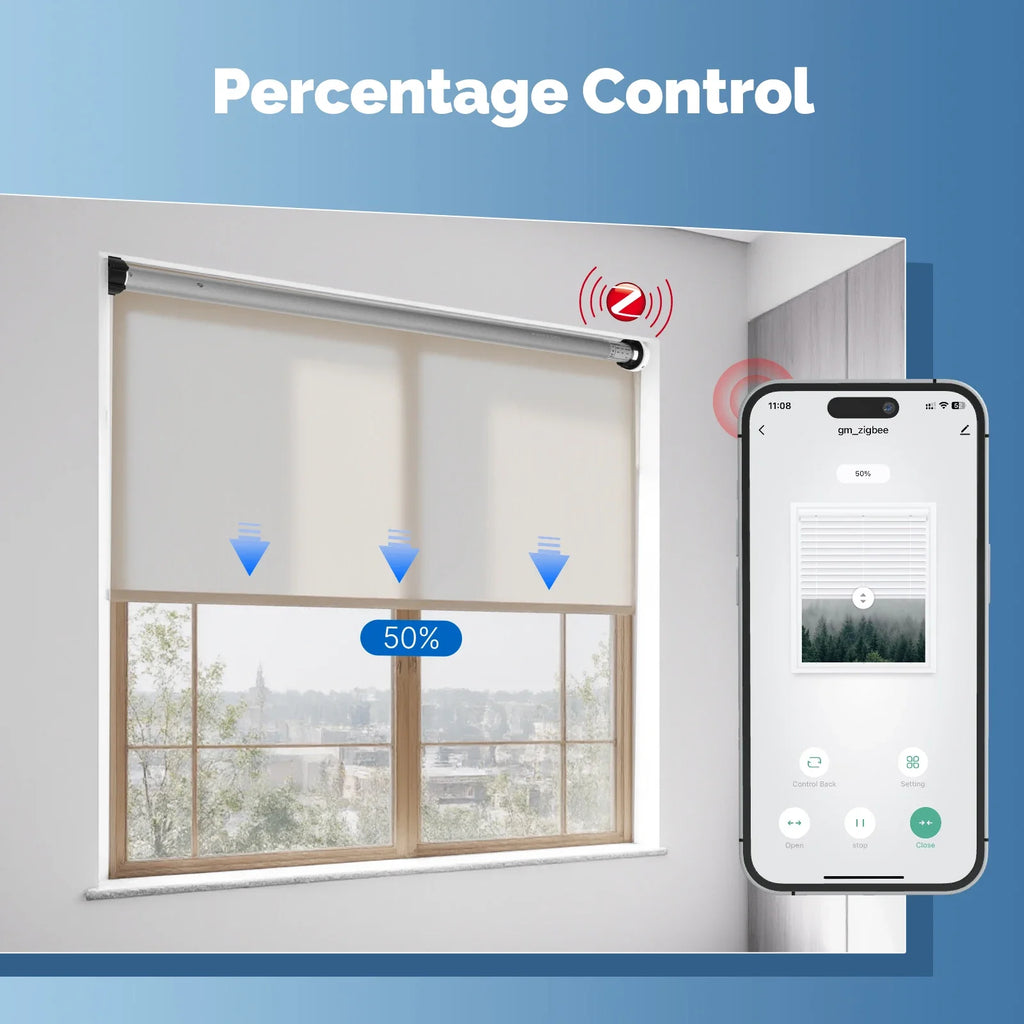

Percentage Control

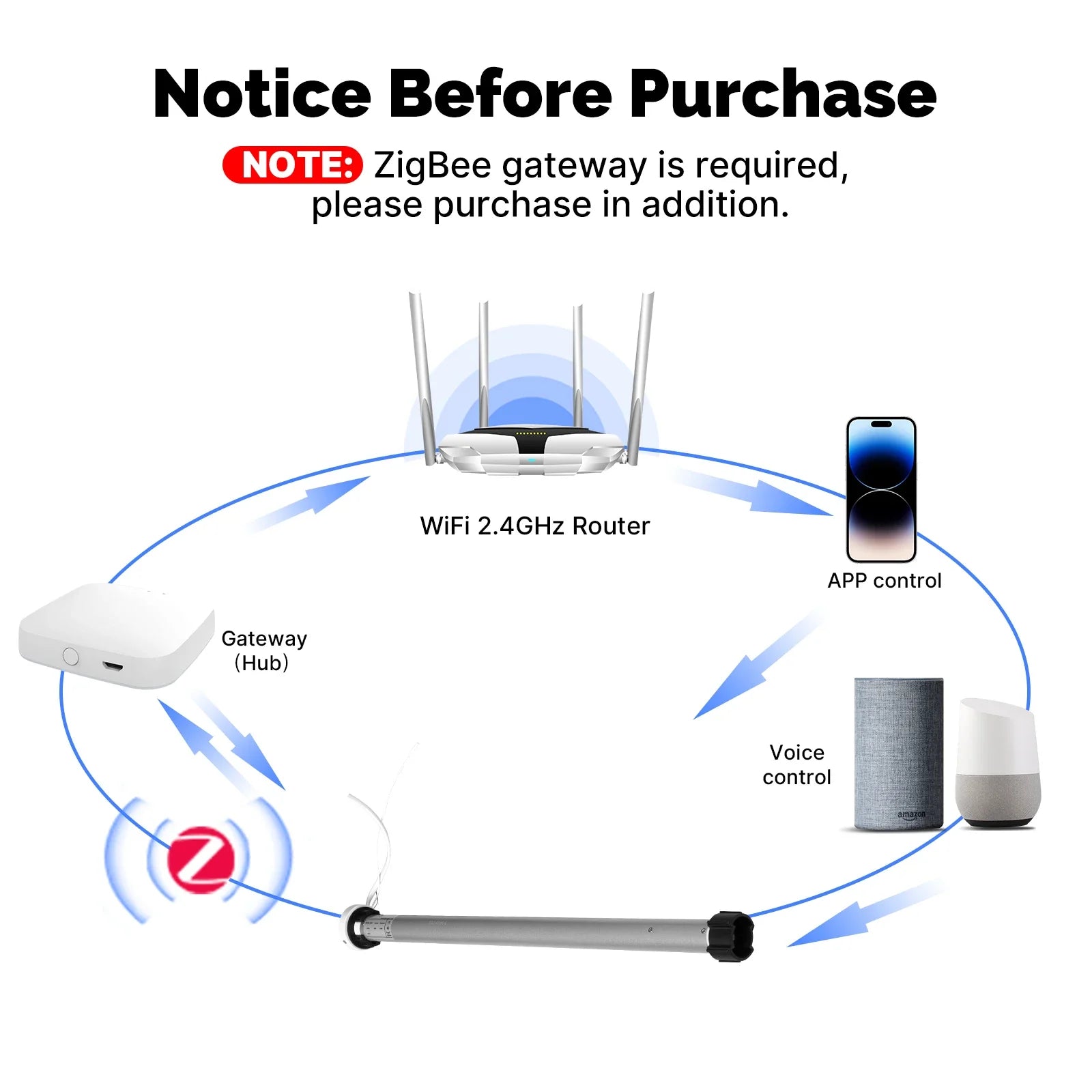

Notice Before Purchase

Note: ZigBee gateway is required,please purchase in addition.

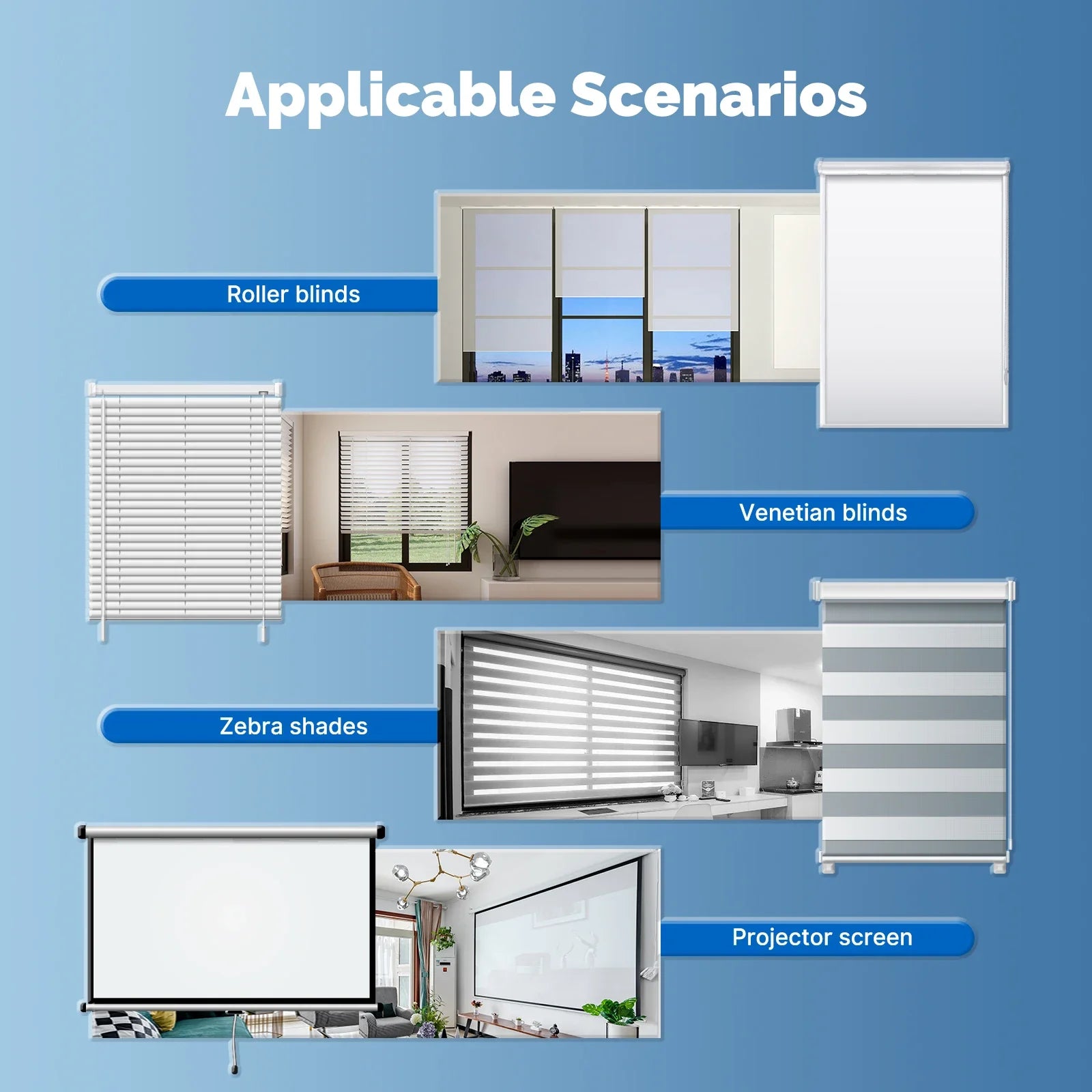

Applicable Scenarios

The versatile motor powers window blinds, projection screens and roller blinds. Its reliable performance and easy installation make it ideal for those seeking a convenient way to control coverings.

Smart Scene Linkage

The smart electric roller blind motor enables integration into a smart scene linkage such as smart light switches.

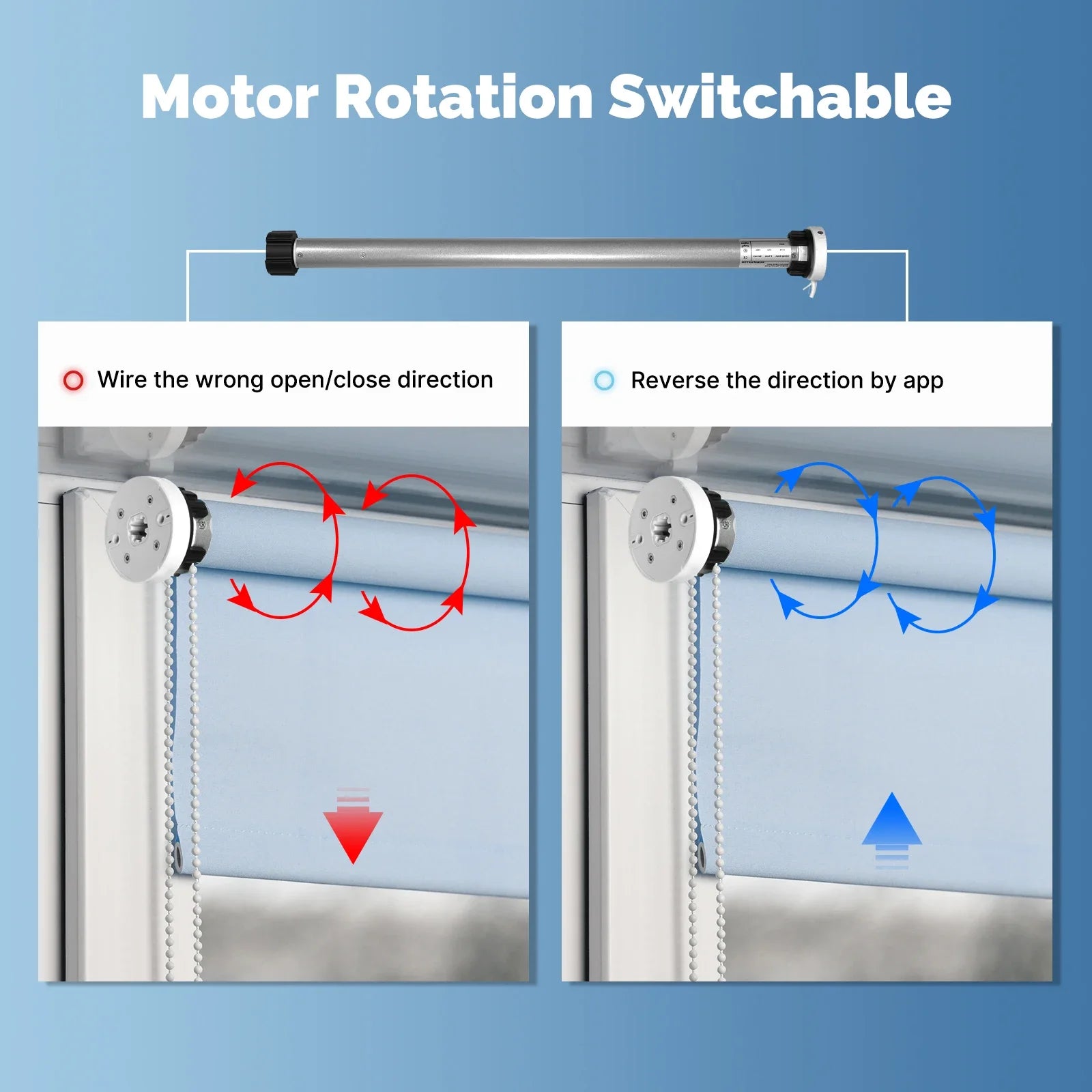

Motor Rotation Switchable

When you accidentally install the curtain motor in the wrong direction, choose reverse rotation in MOES App, then the App operation can be as normal direction.

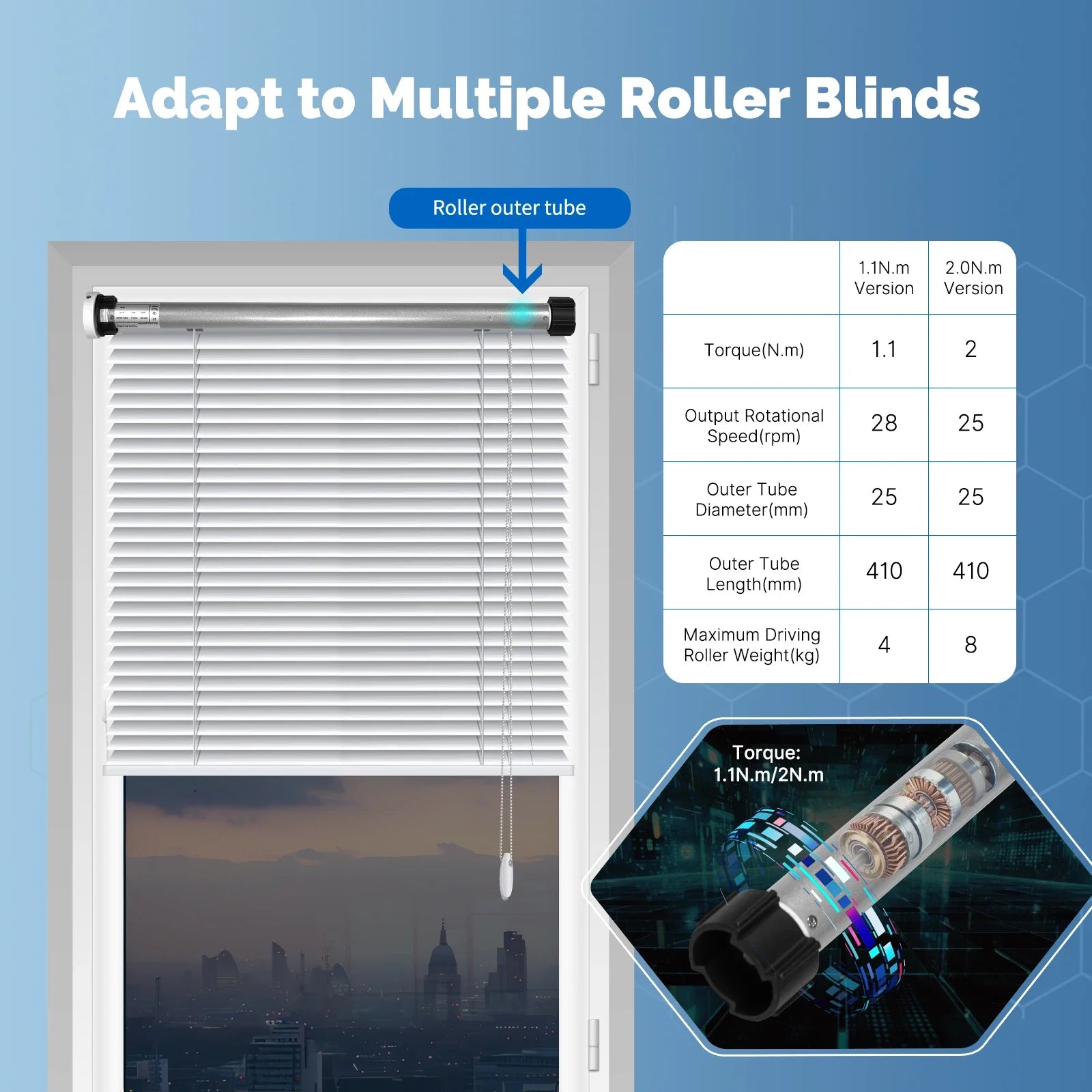

Comparison of The Data

There are two motor models in this link, both with an outer tube diameter of 25mm, but some of their data differ. Please refer to this chart for specific details.

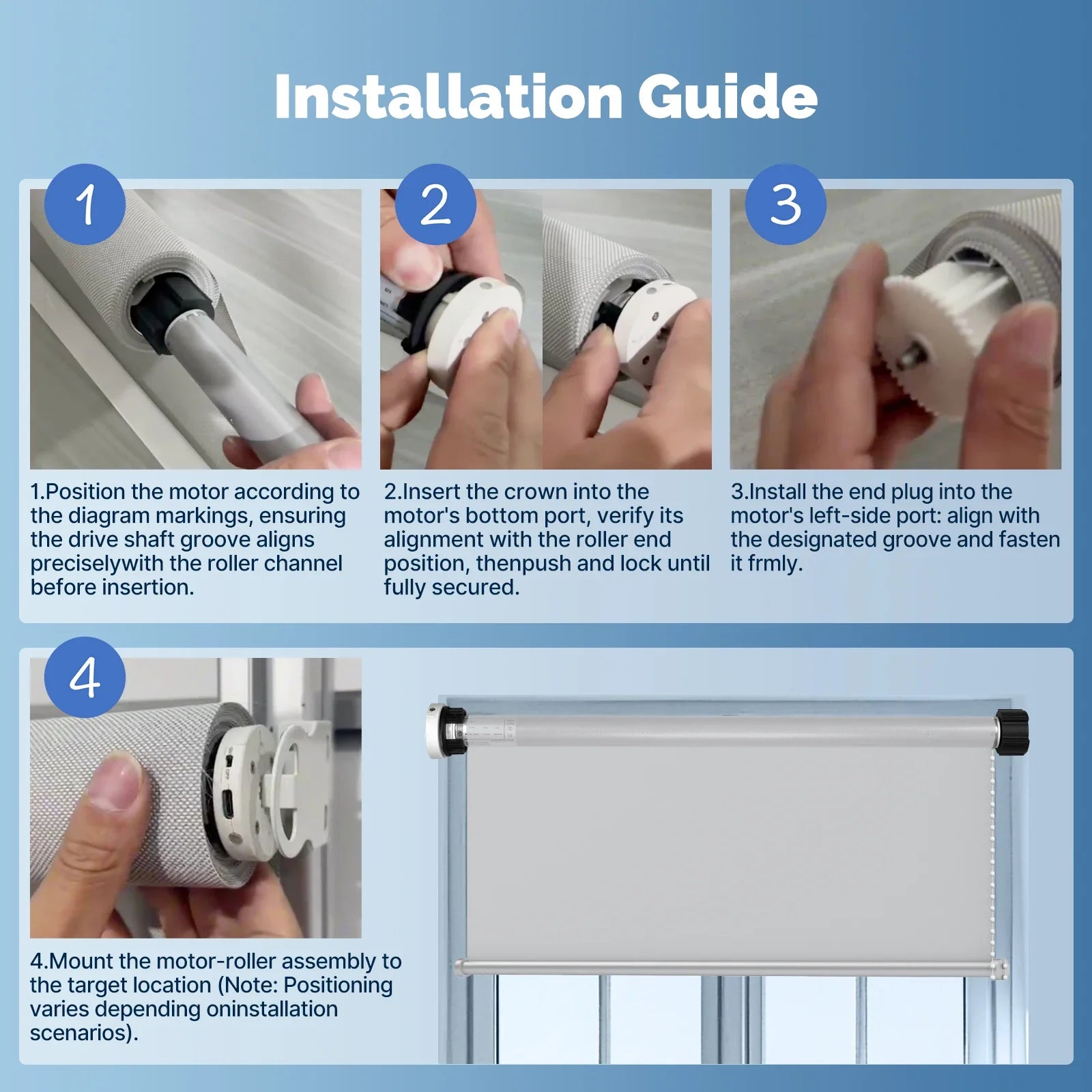

Installation Guide

There are four steps in total. lf you need further assistance, feel free to contact our customer service promptly.
1.Position the motor according to the diagram markings, ensuring the drive shaft groove aligns preciselywith the roller channel before insertion.
2.Insert the crown into the motor's bottom port, verify its alignment with the roller end position, thenpush and lock until fully secured.
3.Install the end plug into the motor's left-side port: align with the designated groove and fasten it frmly.
4.Mount the motor-roller assembly to the target location (Note: Positioning varies depending oninstallation scenarios).

Product Details

Dimensions

Technical Specifications:
Outer Tube Diameter: 25mm
Input voltage: 100-240/60-50V
Output voltage: 12V
Rated torque: 1.1/2N.m
Output Rotational Speed of 1.1N.m: 28rpm
Output Rotational Speed of 2N.m: 25rpm
Rated current of 1.1N.m: 1A
Rated current of 2N.m: 1.4A
Rated power of 1.1N.m: 12W
Rated power of 2N.m: 16.8W
Outer Tube Length: 410mm
Maximum Driving Roller Weight of 1.1N.m: 4kg
Maximum Driving Roller Weight of 2N.m: 8kg

Packing List:
Curtain motor *1
Crown *1
Wheel *1
Instruction manual *1
