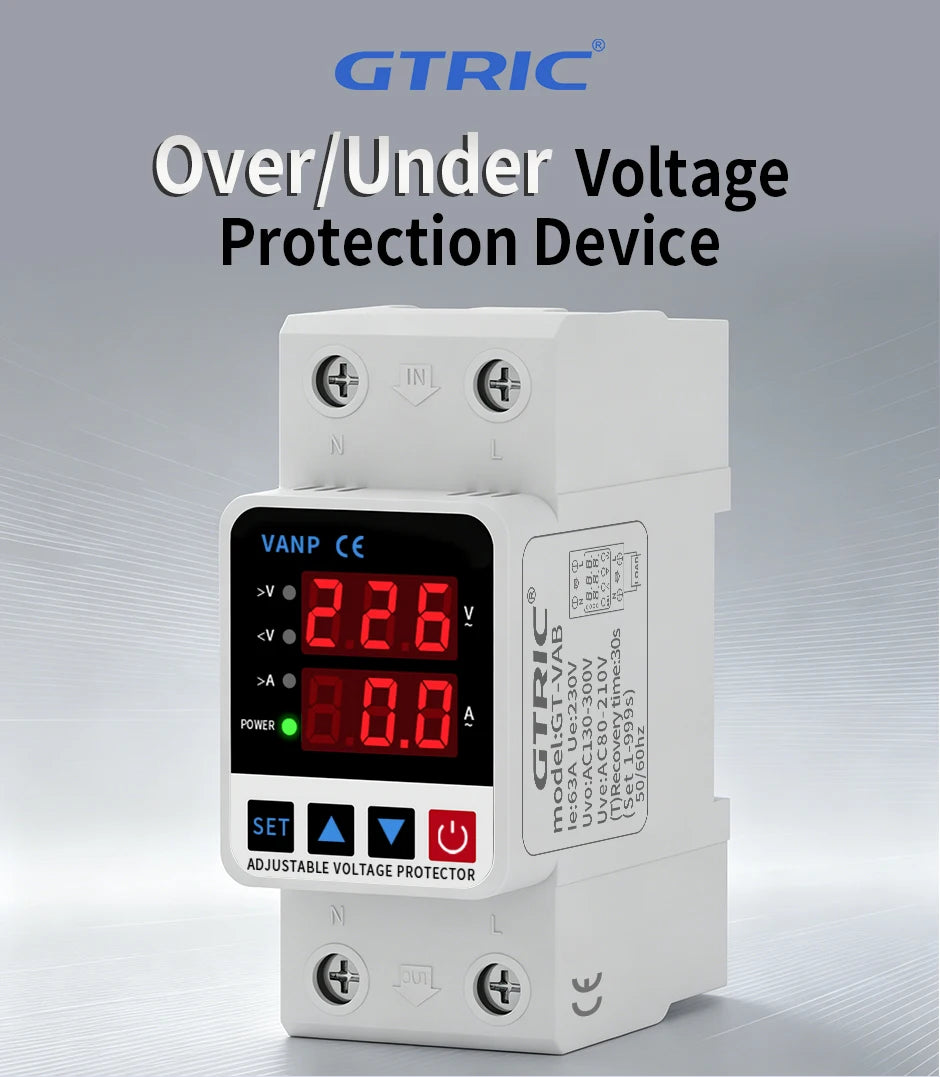

GTRIC Over Under Voltage Protector Adjustable Over Voltage 63A 220VAC Din Rail Under Voltage Protection Device Protector Relay

$21.53

$21.53 $0.00

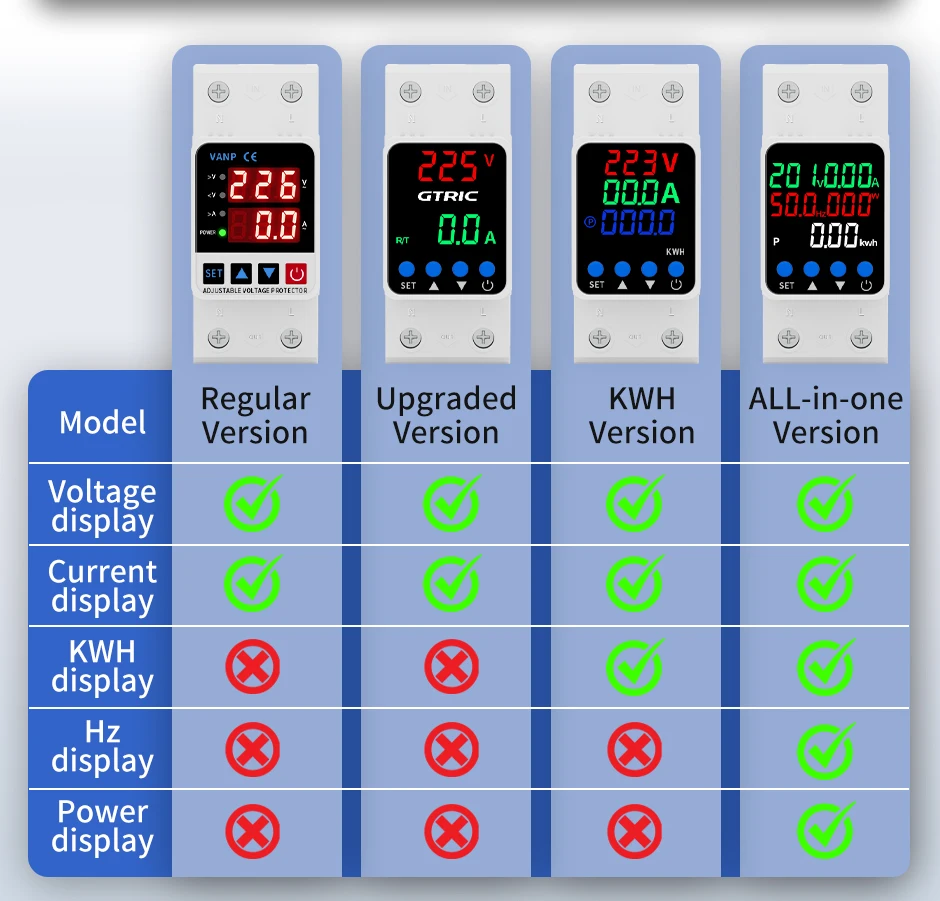

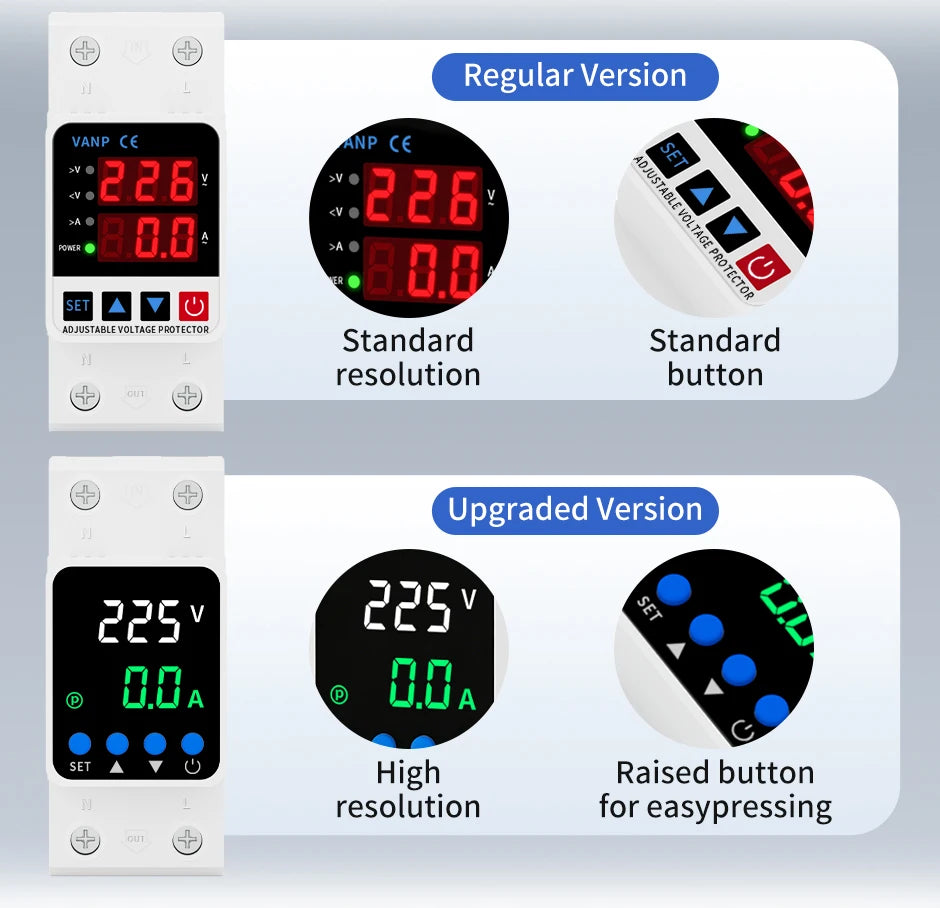

Rated Current Regular Version Upgraded Version

Ships FromChina Mainland

Poles Number AC220V 1-63A AC220V 1-40A AC220V 1-80A

SPECIFICATIONS

Ambient temperature: -25°C~+55°C

Brand Name: GTRIC

Certification: CE,RoHS

Choice: yes

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

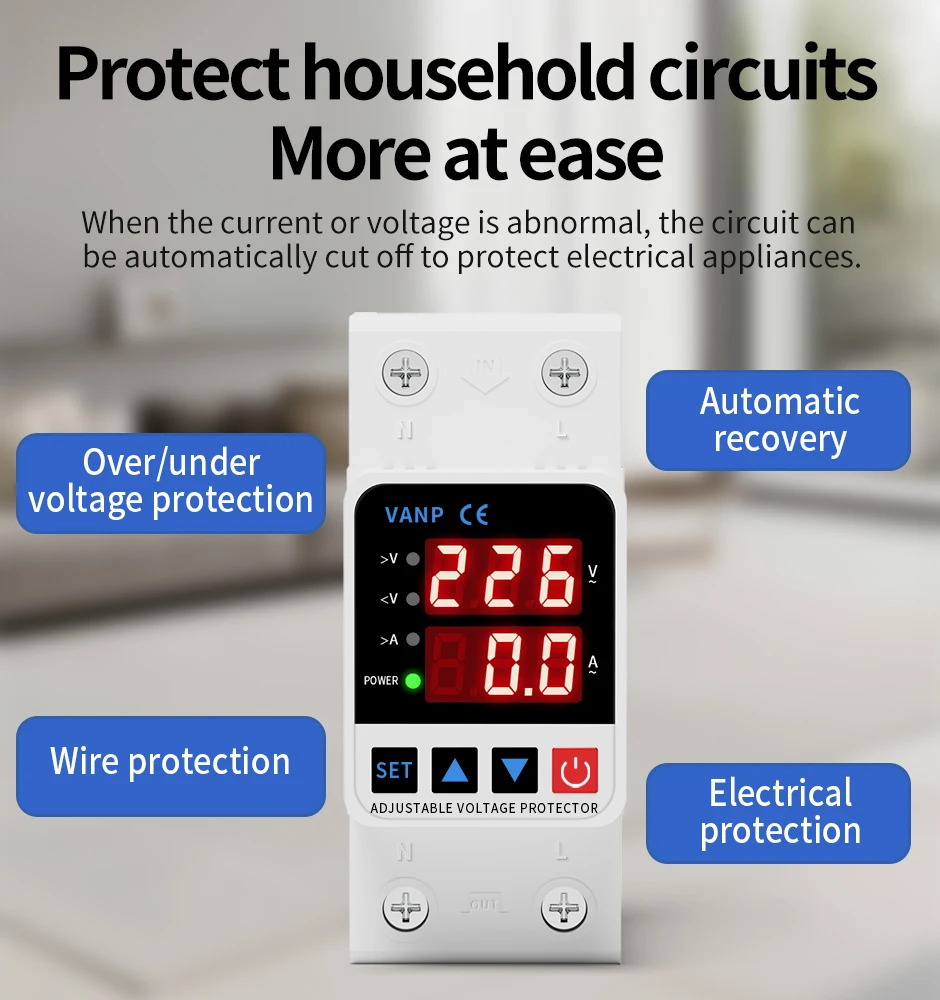

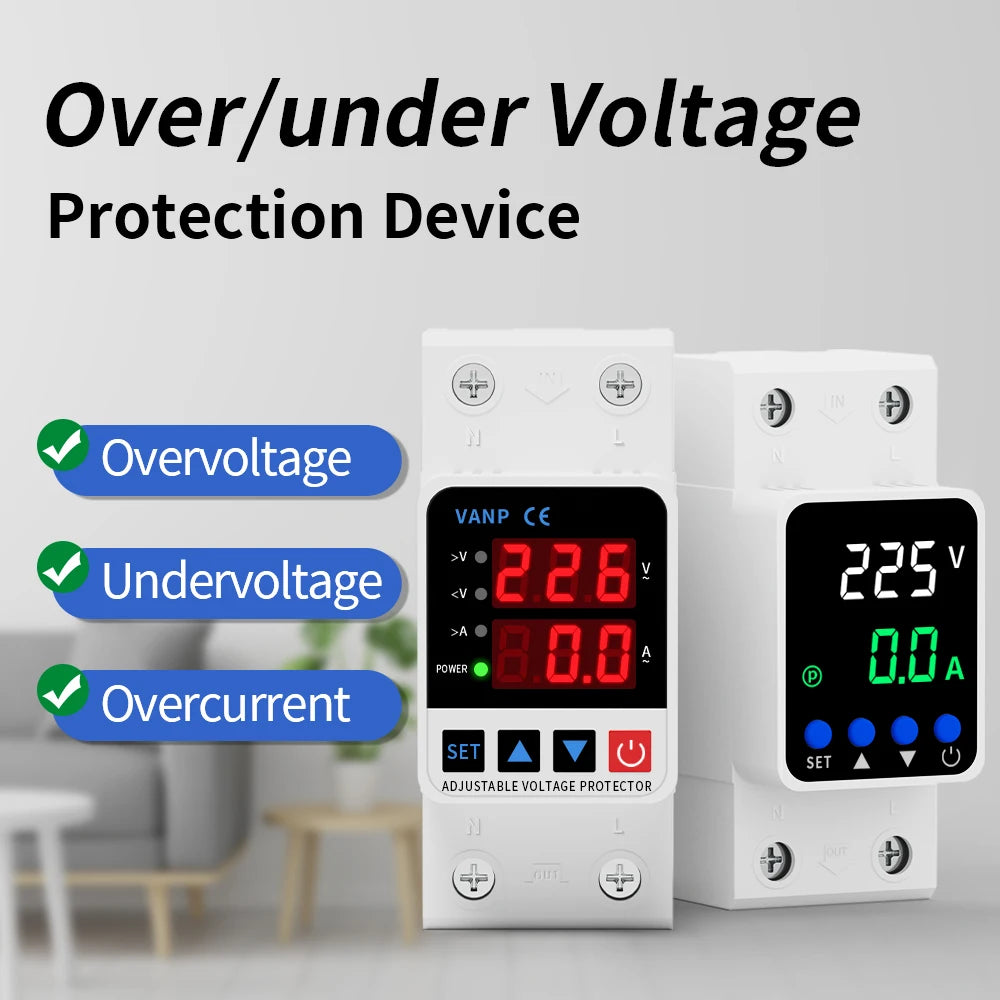

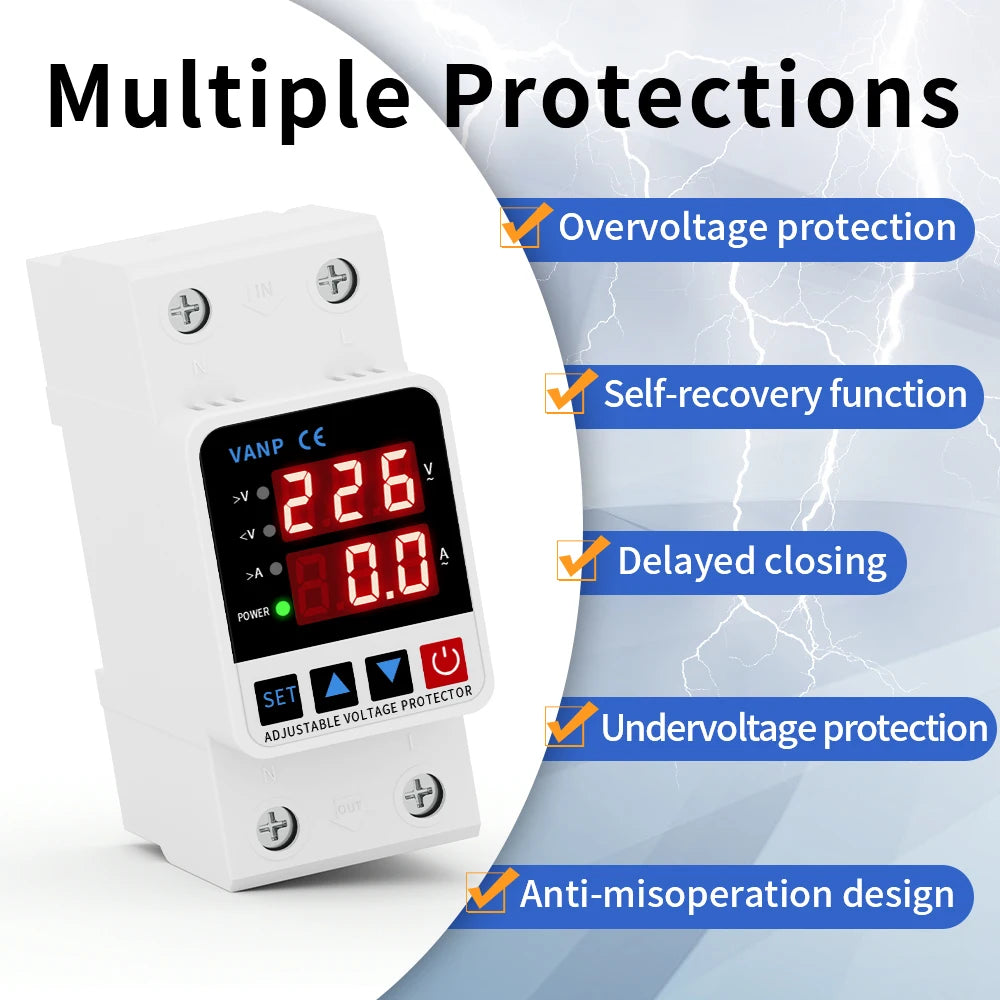

Function 1: Under voltage protection

Function 2: Over voltage protection

Function 3: Over current protection

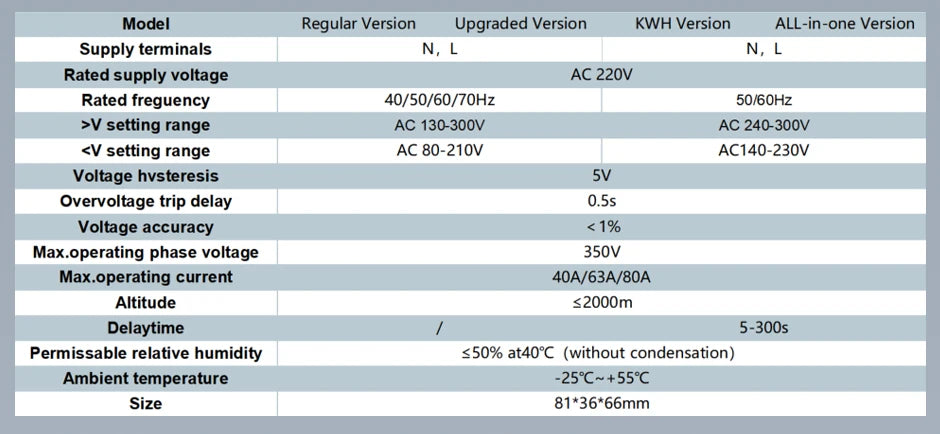

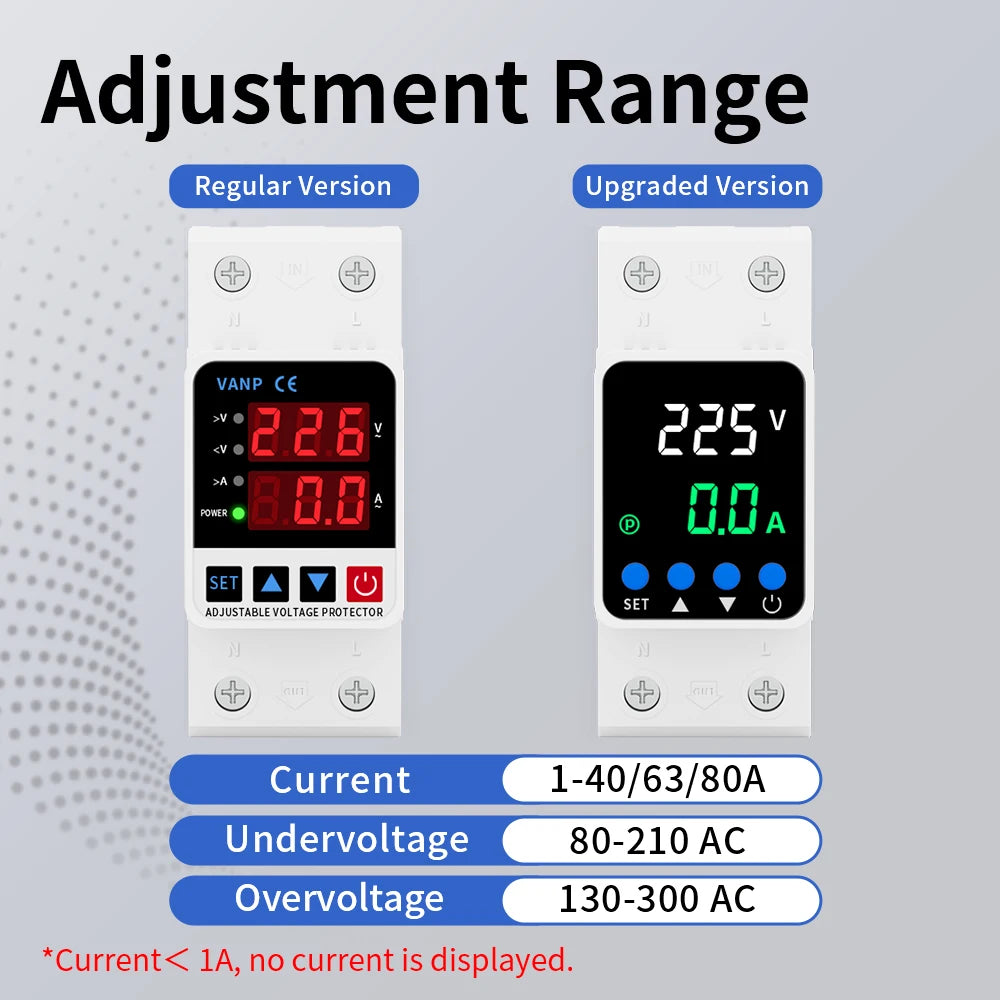

GT-VA Over voltage protection: AC130~300V (adjustable) (default: 270V)

GT-VA Under voltage protection: AC80~210V(adjustable) (default: 170V)

High-concerned chemical: None

Is Smart Device: no

Model Number: Adjustable Over Under Voltage Current Protective Device

Origin: Mainland China

Over current protection: 1A-40/63/80A (adjustable)

Overvoltage trip delay: 0.5s

Product Type: 220v voltage protection relay

Rated Voltage: 220V

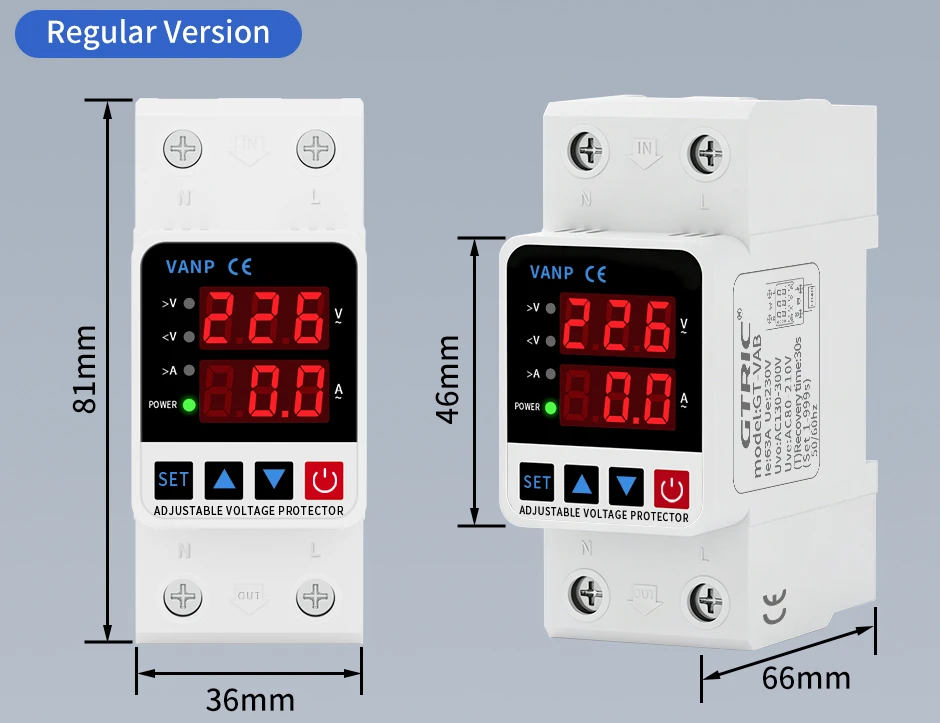

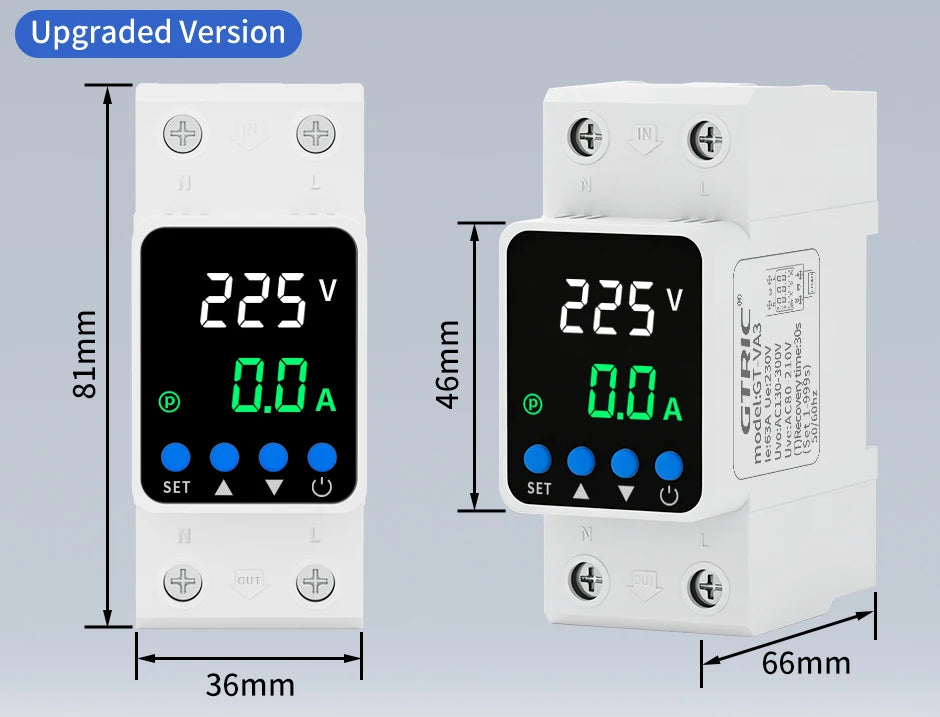

Size: 81*36*66mm

Type: Mini,Voltage relay

Voltage accuracy: <1%

is_customized: Yes

semi_Choice: yes

If you need a product instruction manual, please contact customer service!

If you need a larger quantity, please contact us first, we can provide better prices and faster transportation (DHL, UPS, Fedex...)

If you have any questions, you can contact us at any time, we will reply you online 24 hours a day! !

MAX.operating current: 40A/63A/80A 40/50/60/70Hz;

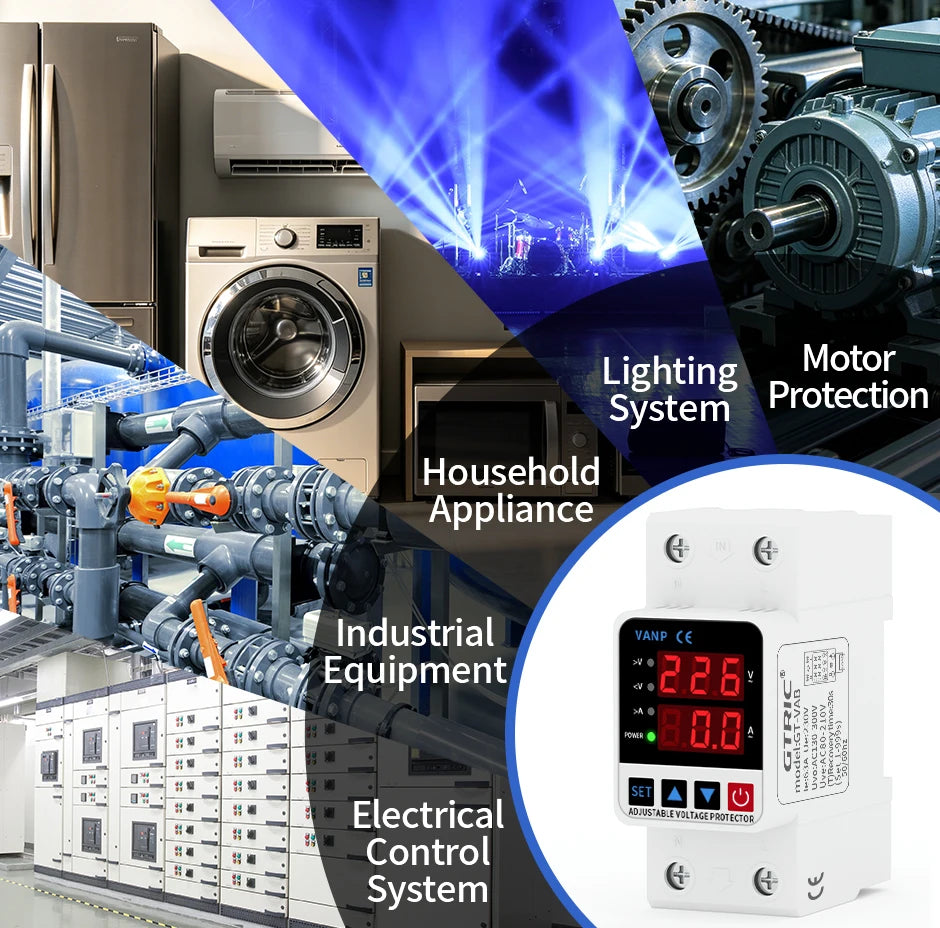

Application: Suitable for locations where the power grid voltage is unstable, the equipment is expensive and cannot be interrupted, or where there are high requirements for electrical safety.
