433Mhz Wireless Remote Control Light Switch DC 6V 12V 24V 30V 36V 10A Relay Receiver 500m Range,for LED Pumps Fan Magnetic Lock

Only 1 Panel-3gang

$5.35

Sale price $5.35 Regular price $0.00

Skip to product information

1/28

433Mhz Wireless Remote Control Light Switch DC 6V 12V 24V 30V 36V 10A Relay Receiver 500m Range,for LED Pumps Fan Magnetic Lock

$5.35

Sale price $5.35 Regular price $0.00

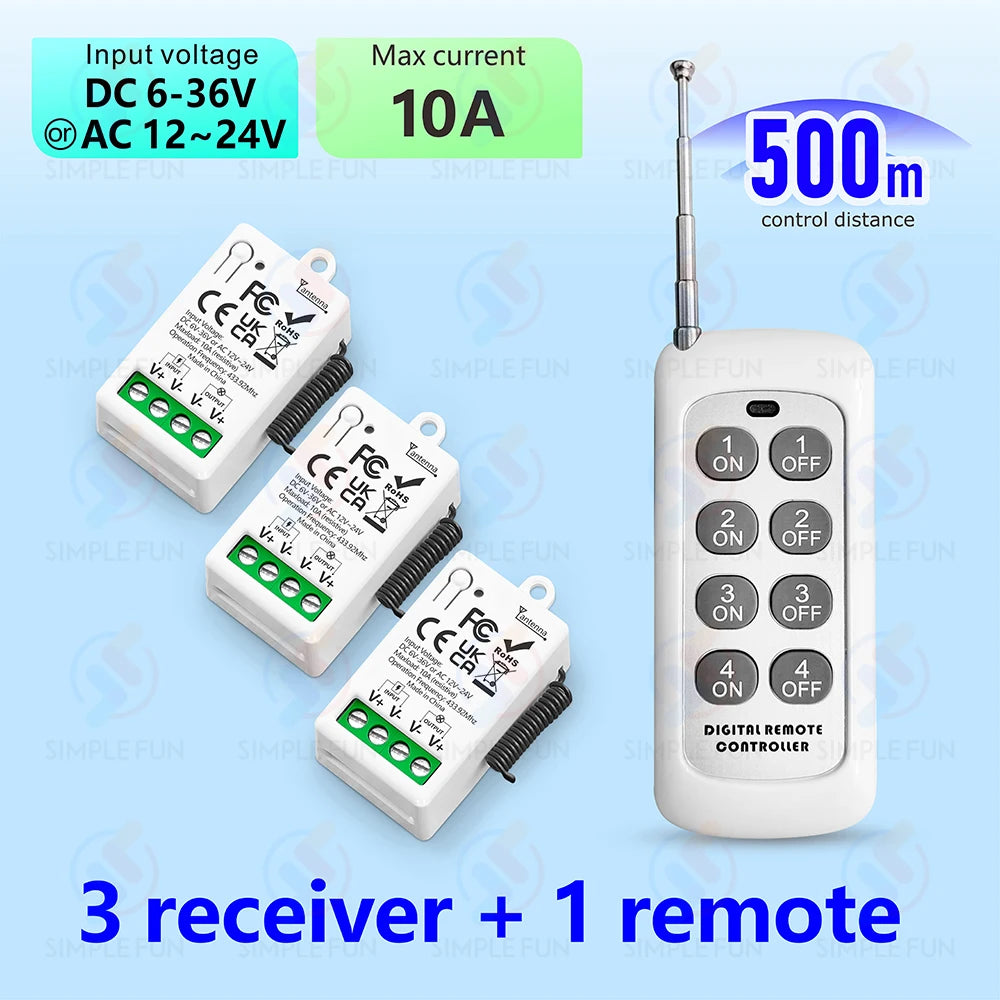

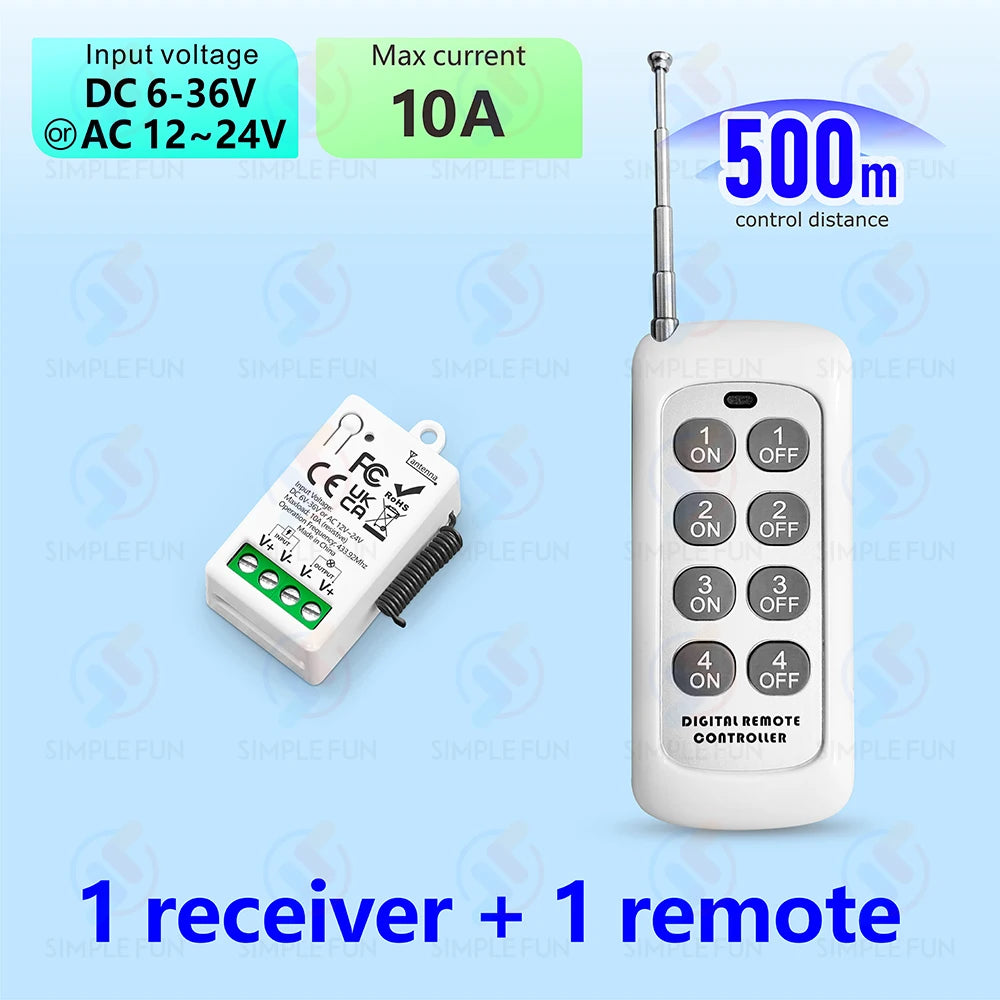

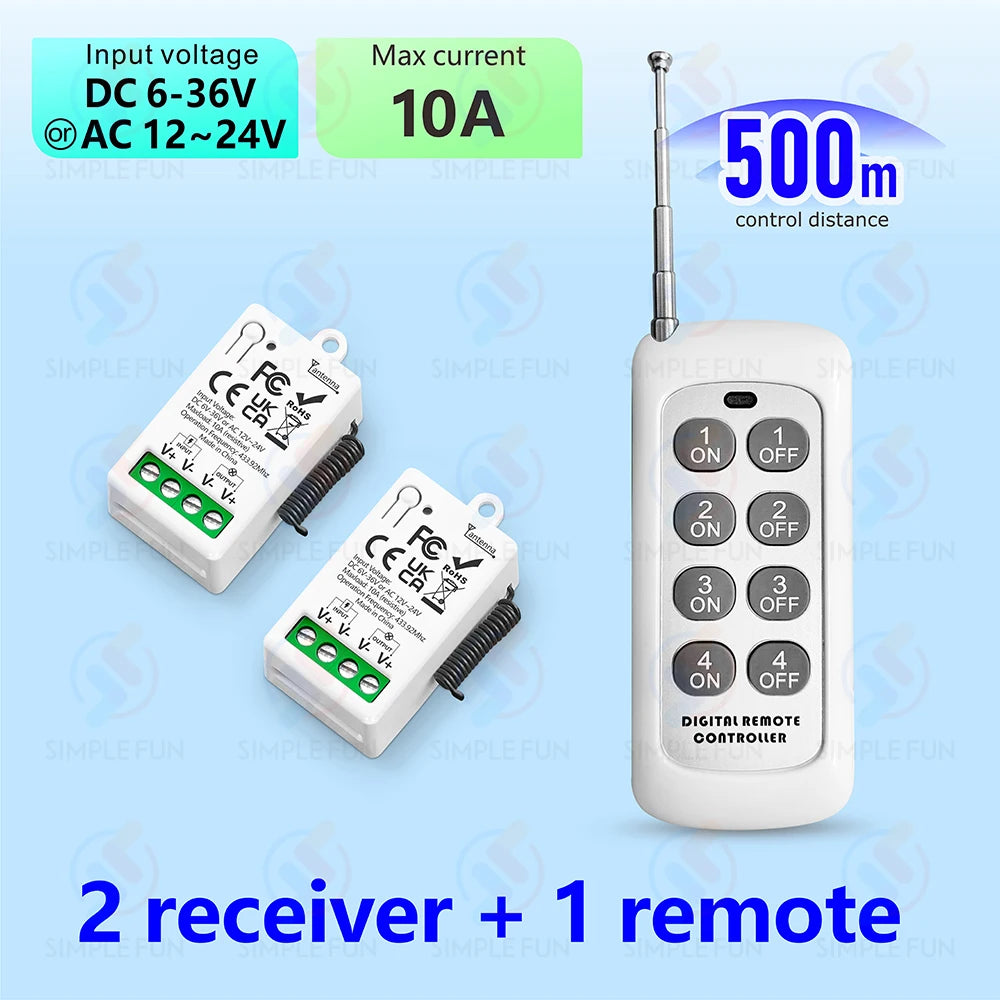

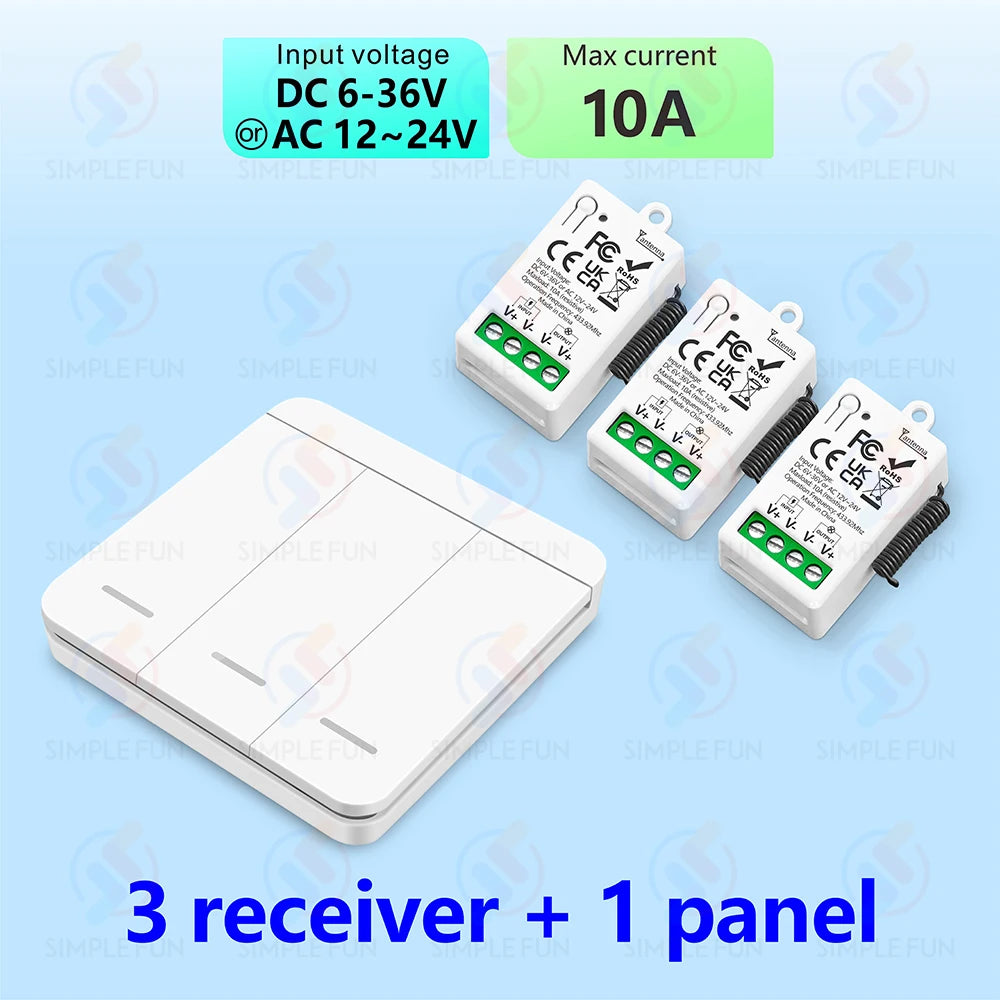

Color Only 1 Panel-3gang Only 1 remote Only 1 Panel-1gang Only 1 Panel-2gang 4Receiver 1T Only 1 Receiver 2Receiver 1T 3Receiver 1T 1Receiver 1Panel 1T 1Receiver 1T 2Receiver 1Panel 3Receiver 1Panel 1Receiver 1Panel

SPECIFICATIONS

Amount of storage remote controls: About 15 pieces

Application: Fan, Fish tank, Light, LED, Magnetic Lock, Motorcycle Switch,Pumps,

Application scenario: Family, Farm, Factory, Office, Supermarket

Brand Name: SLMPLEFUN

Certification: RoHS,FCC,CE,ce,FCC

Choice: yes

Code: ev1527 learning code

Controller terminal: V+ V-

Current: 10A

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Feature1: Customize the device status after power-off and restart

Feature2: 10A high power ,widely used

Feature3: RF wireless control

Feature4: Long Distance Control

High-concerned chemical: None

Item Type: SWITCHES

Material: Plastic

Max current: 10A

Model Number: 5301F+WP07+PT22628ON

Modulation Mode: ASK superheterodyne wireless reception

Origin: Mainland China

Quiescent Current: less than 5mA

RF Frequency: 433.92MHz

Remote Distance: 50-500m,up to 50m/500m (theoretical distance)

Remote operating mode: Momentary/Toggle/Latched Mode

Switch Shell: YES

Switch Type: Remote Control

Switch Working Voltage: DC 6V-36V or AC 12V~24V

Switch size: 28*22*47 mm

Working Temperature: -30~+80 Celsius

remote control Range: up to 50m/500m (theoretical distance)

remote control Battery: 27A 12V / 23A 12V(Included)

remote control Size: 28*59*12mm/90*40*14mm

semi_Choice: yes

！！NOTE ！！
●Hello, friend, In order to meet the needs of different customers,our purchase page has multiple options to choose from.

It includes options for a single receiver and a single remote control. Please verify your order carefully before making the payment. Thank you.

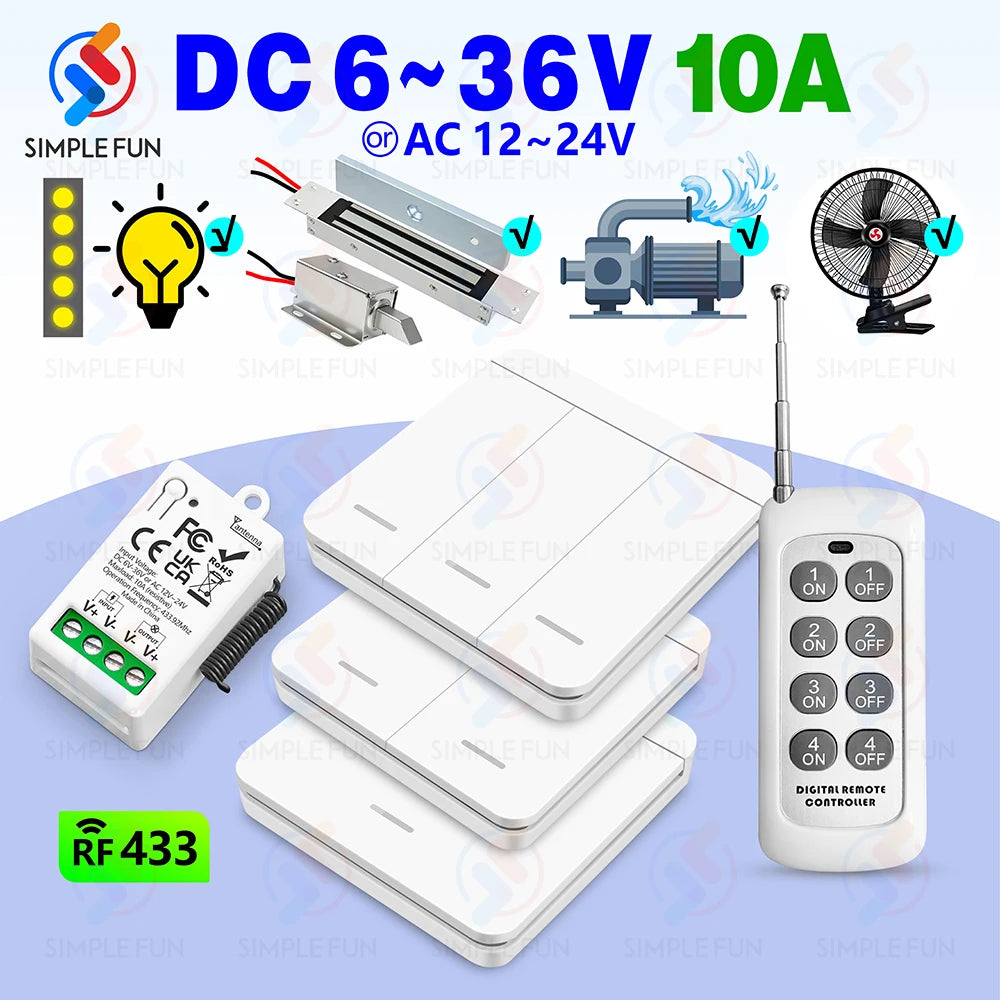

433Mhz Wireless Remote Control Light Switch DC 6V 12V 24V 30V 36V 10A Relay Receiver 500m Range,for LED Pumps Fan Magnetic Lock

Product advantages:

▶ Mini size. It may be the smallest module on the market, which is convenient to install in various places.

▶ The input voltage is DC 6V~36V or AC 12V~24V , the maximum load is 10A, and is suitable for a wide range of electrical equipment.

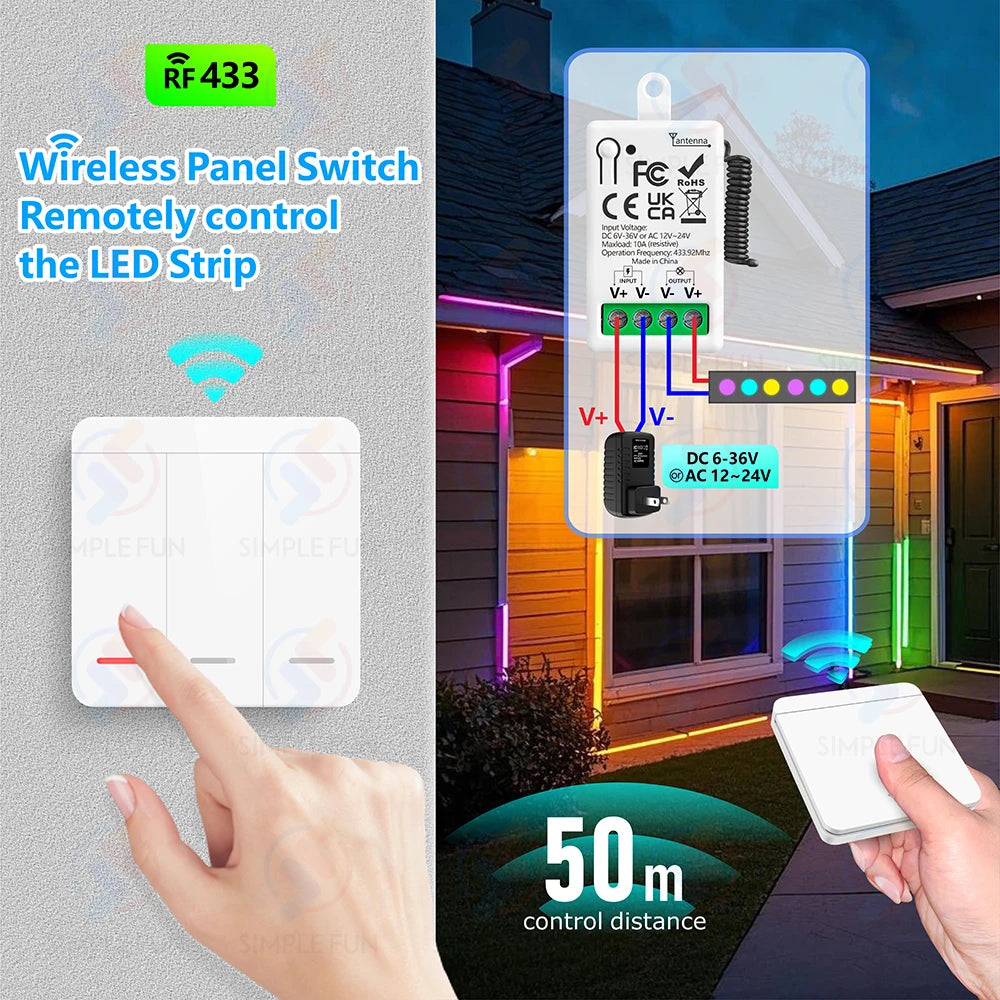

● For example, it can remotely control the LED light strips in the garden, the LED light strips for outdoor camping, and so on.

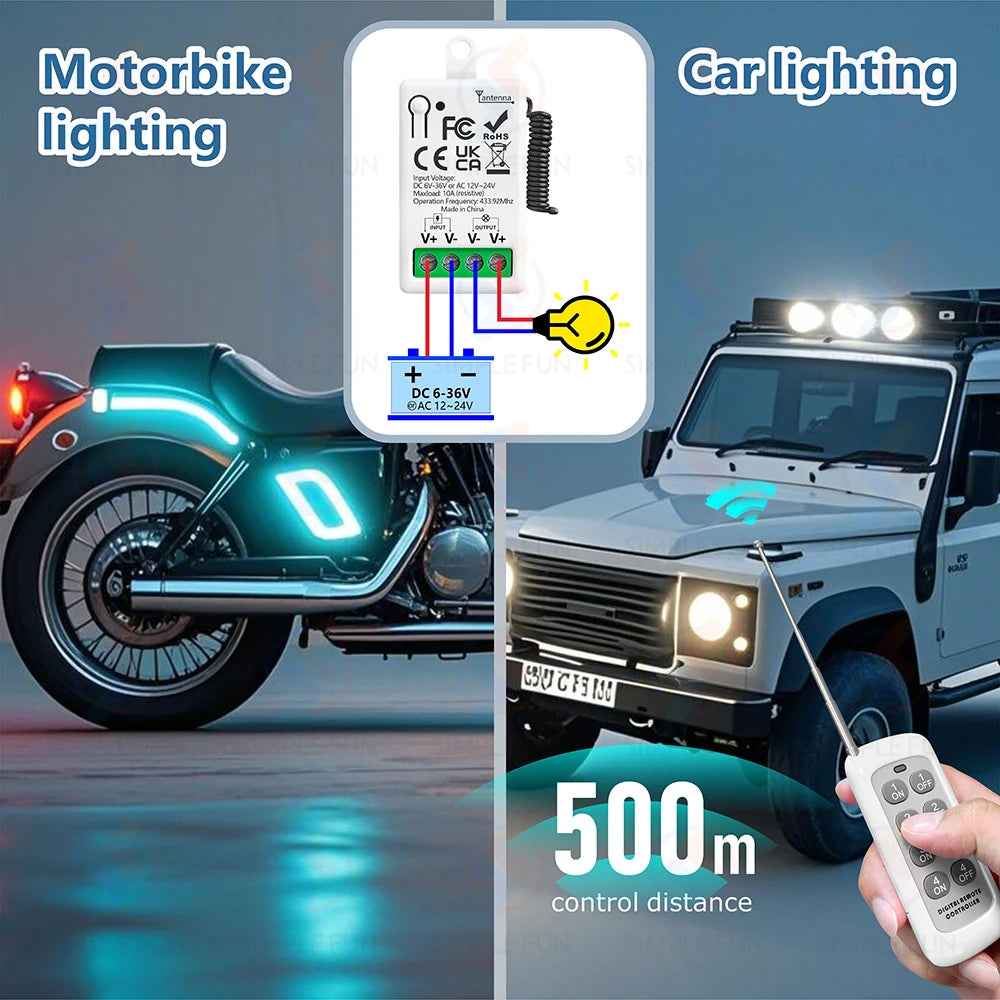

● For example, it can remotely control the LED lights of motorcycles, the searchlights of trucks and off-road vehicles, and various other types of lighting fixtures.
● For example, it can remotely control car-mounted electric fans, and other DC electric fans as well.

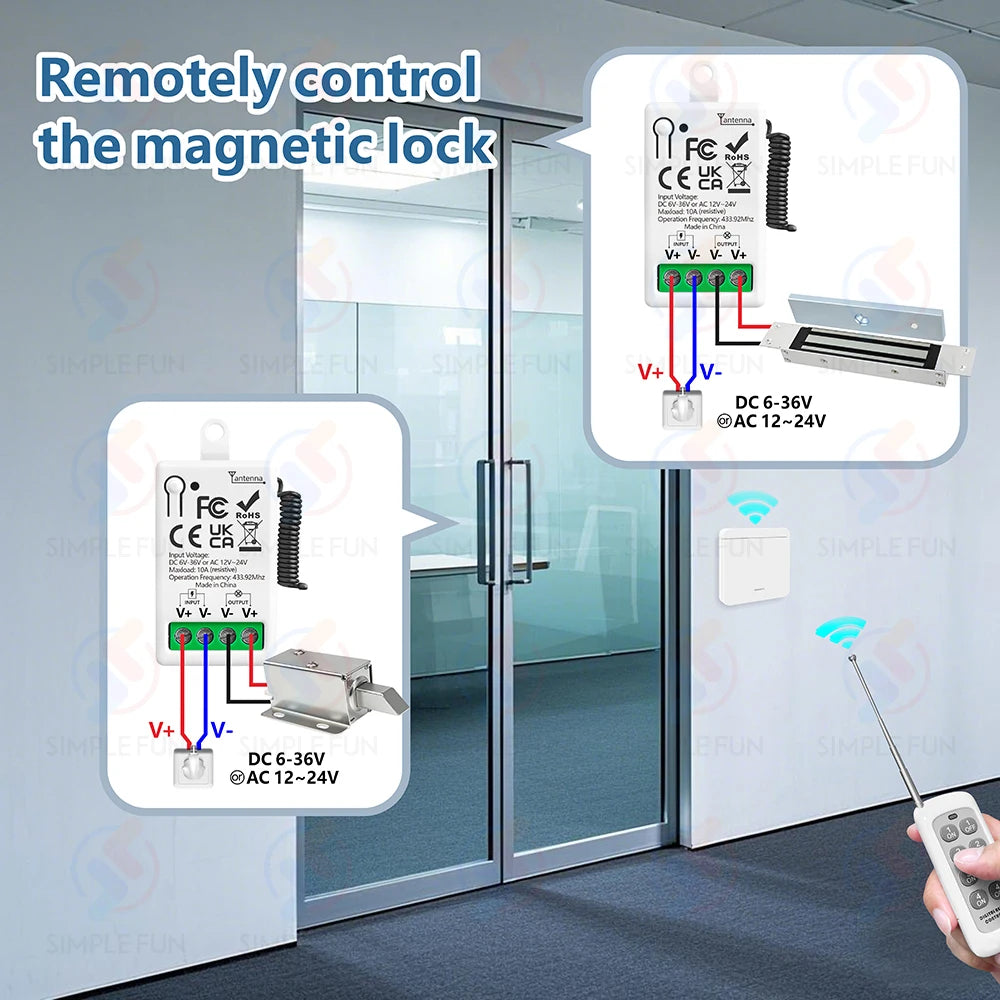

● For example, it can remotely control the electromagnetic lock of your access control system, which can be applied in various places such as offices, apartments, factories, gardens and so on.

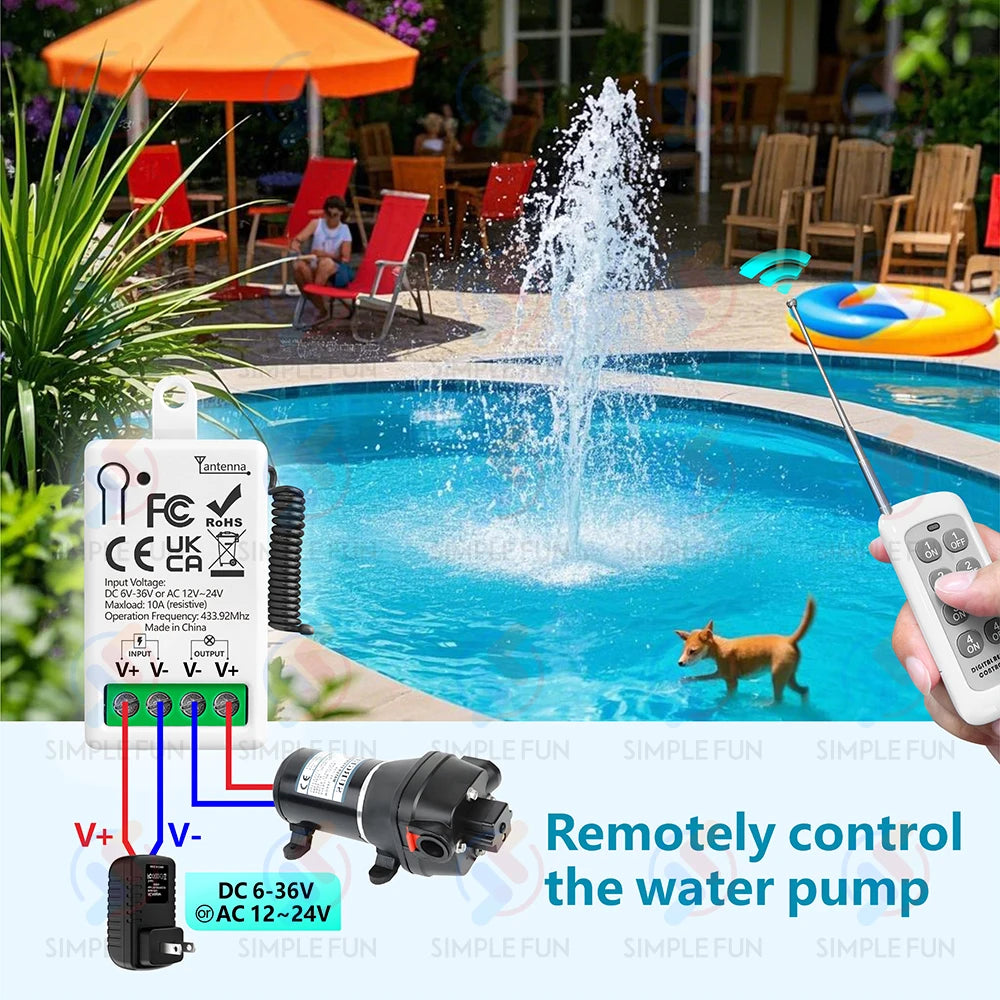

● For example, you can remotely control your DC water pump, which is applicable to your fish pond, garden fountain, irrigation, and so on.

▶ 3 usage modes: Momentary/Toggle/Latched Mode, which can meet all kinds of your usage needs.
▶ You can set the status of the device to either "on" or "off" when the power is restored after a power outage. There is no need to worry that the device will not work when the power is restored after a power outage. This is especially applicable in the case of water pumps, for example.

▶ The receiver can store 15+ remote controls, which means you can use 15+ remote controls to control the receiver.
▶ Remote control distance up to 50 meters /500 meters(open space).
▶ The remote control has a high-quality battery built-in , and the batteries can last for more than two years.

▶ Comprehensive after-sales and service
The product has passed CE, CCC and RoHS certification. Please don't worry about product quality;
Our after-sales service team can provide the most professional solution to any of your problems.

Details

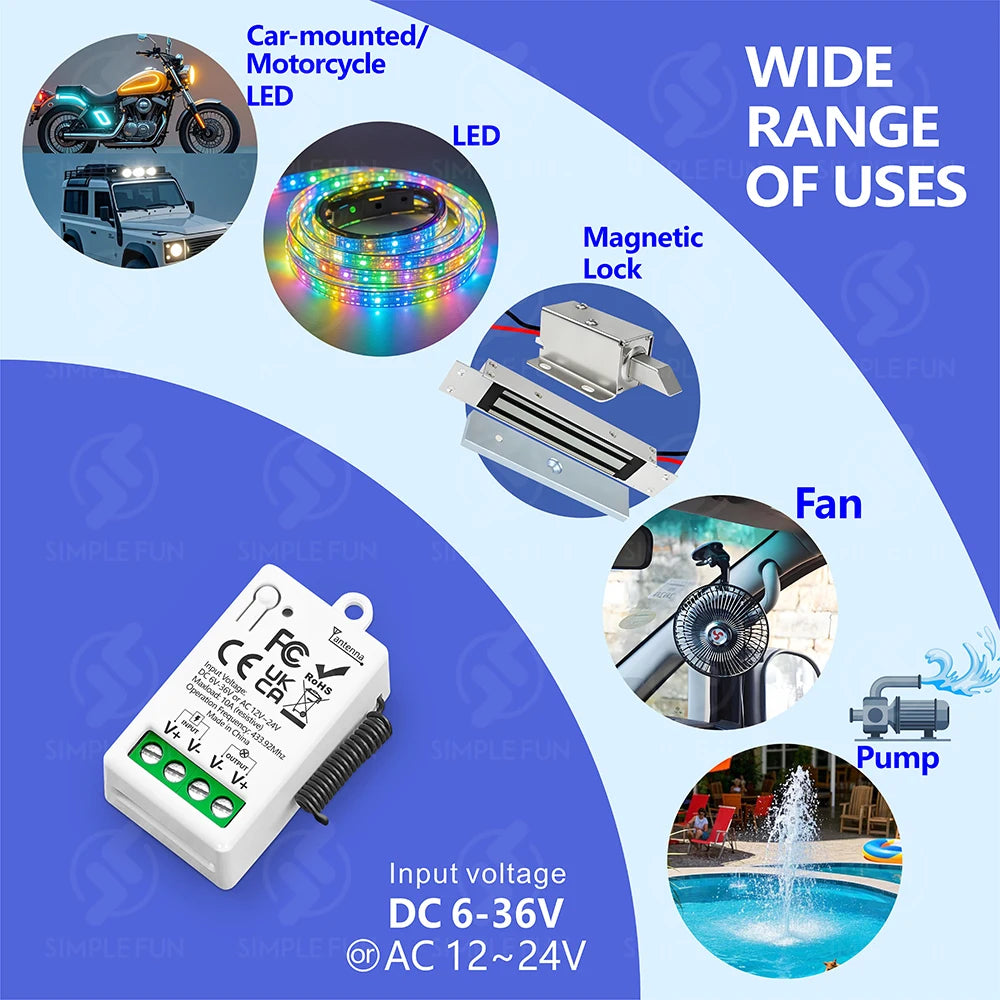

Wide Range of Application Scenarios.
The products can be used in homes, farms, factories, offices, laboratories, supermarkets, etc. You can remotely operate electric locks, electromagnetic doors, fans, lamps, lighting, ventilation, water pumps, signal transmission and DIY remote control switches, etc.

For example, it can remotely control the LED light strips in the garden, the LED light strips for outdoor camping, and so on.

For example, it can remotely control the LED lights of motorcycles, the searchlights of trucks and off-road vehicles, and various other types of lighting fixtures.

For example, it can remotely control car-mounted electric fans, and other DC electric fans as well.
For example, it can remotely control the electromagnetic lock of your access control system, which can be applied in various places such as offices, apartments, factories, gardens and so on.

For example, you can remotely control your DC water pump, which is applicable to your fish pond, garden fountain, irrigation, and so on.

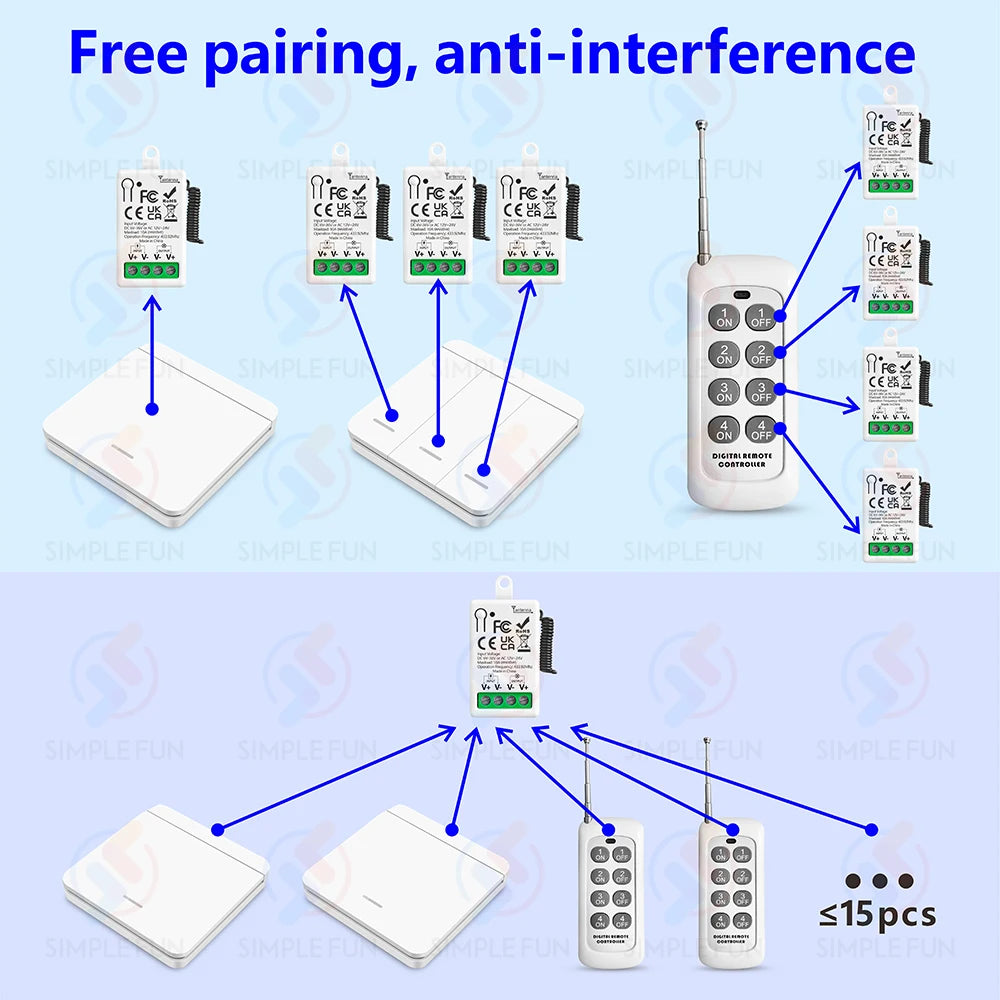

The receiver can store 15+ remote controls, which means you can use 15+ remote controls to control the receiver.
Remote control distance up to 50 meters/ 500 meters (open space).The signal can pass through walls, floors and doors.

！！！You can set the initial state to “on” or “off”. After power restoration, there are two states:

1. “Off” state: The light remains off upon repowering.

2. “On” state: The light turns on automatically after repowering.

Set up:

To switch between the two states, click the learning button 6 times.

**Note: Wait 6 seconds after a power outage before repowering to activate the setup.**

3 Working Modes

●Momentary Mode:

1. Press and hold one button on the wireless panel switch or the remote controller, relay will turn on;

2. Release the button, this relay will turn off.

Set up

1. Click the learning button(on the receiver) 4 times.

Wait for 3 seconds;

2. Press one button on the wireless panel switch or the remote controller. Succeed.

●Toggle Mode:

1. Press button one button on the wireless panel switch or the remote controller, relay will turn on;

2. Press the same button again, this relay will turn off.

Set up

1. Click the learning button(on the receiver) 2 times.

Wait for 3 seconds;

2. Press one button on the wireless panel switch or the remote controller. Succeed.

●Latched Mode:

1. Press button "ON", relay will turn on;

2. Press button "OFF", this relay will turn off.

Set up

1. Click the learning button(on the receiver) 3 times.

Wait for 3 seconds;

2. Press button "ON" on the remote control.

Wait for 3 seconds.

3. Press button "OFF" on the remote control. Succeed.

★Reset:
Press the learning button (on the receiver) 8 times. succeed.

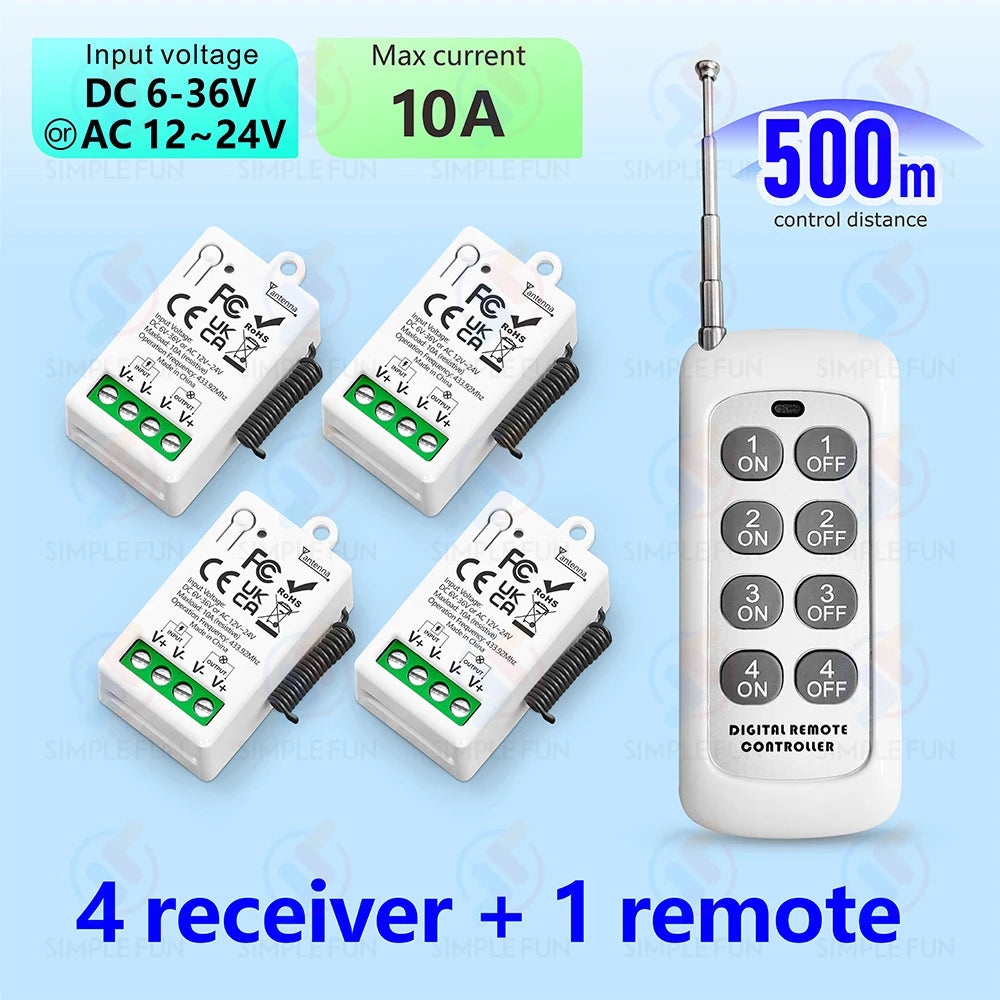

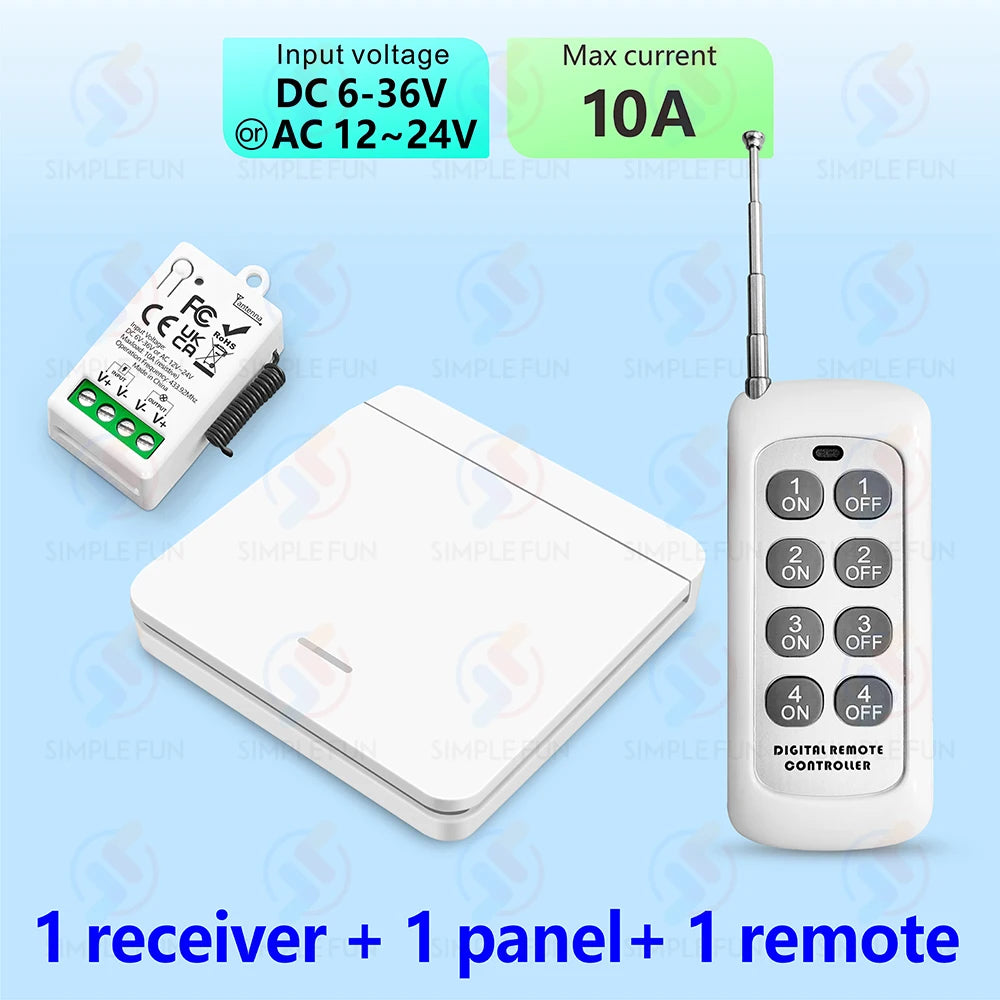

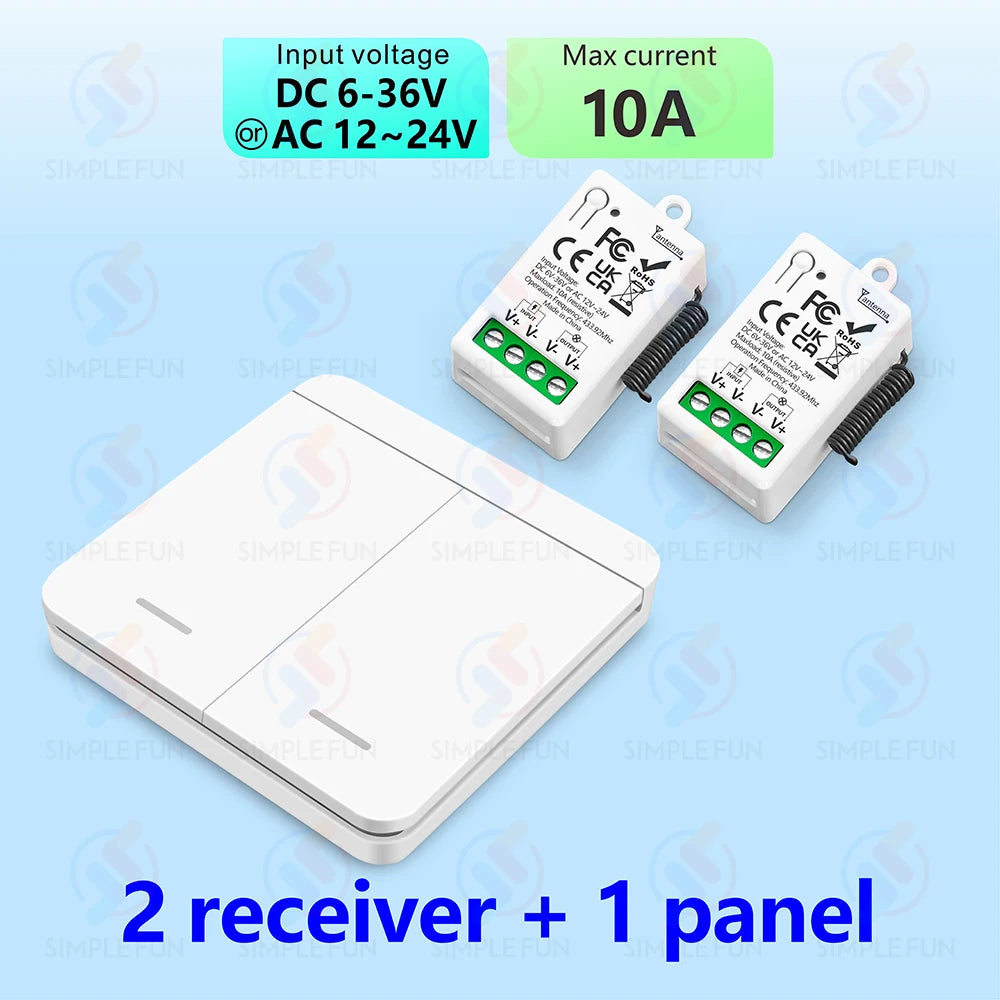

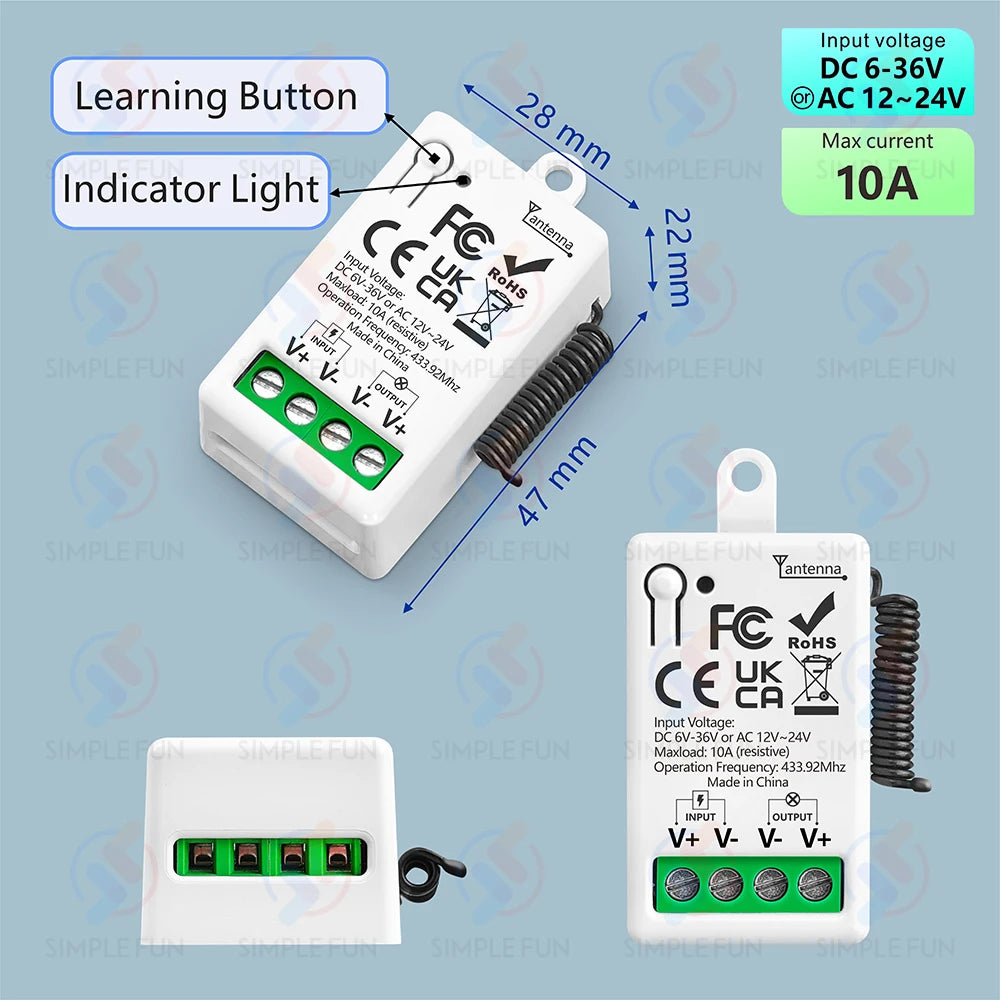

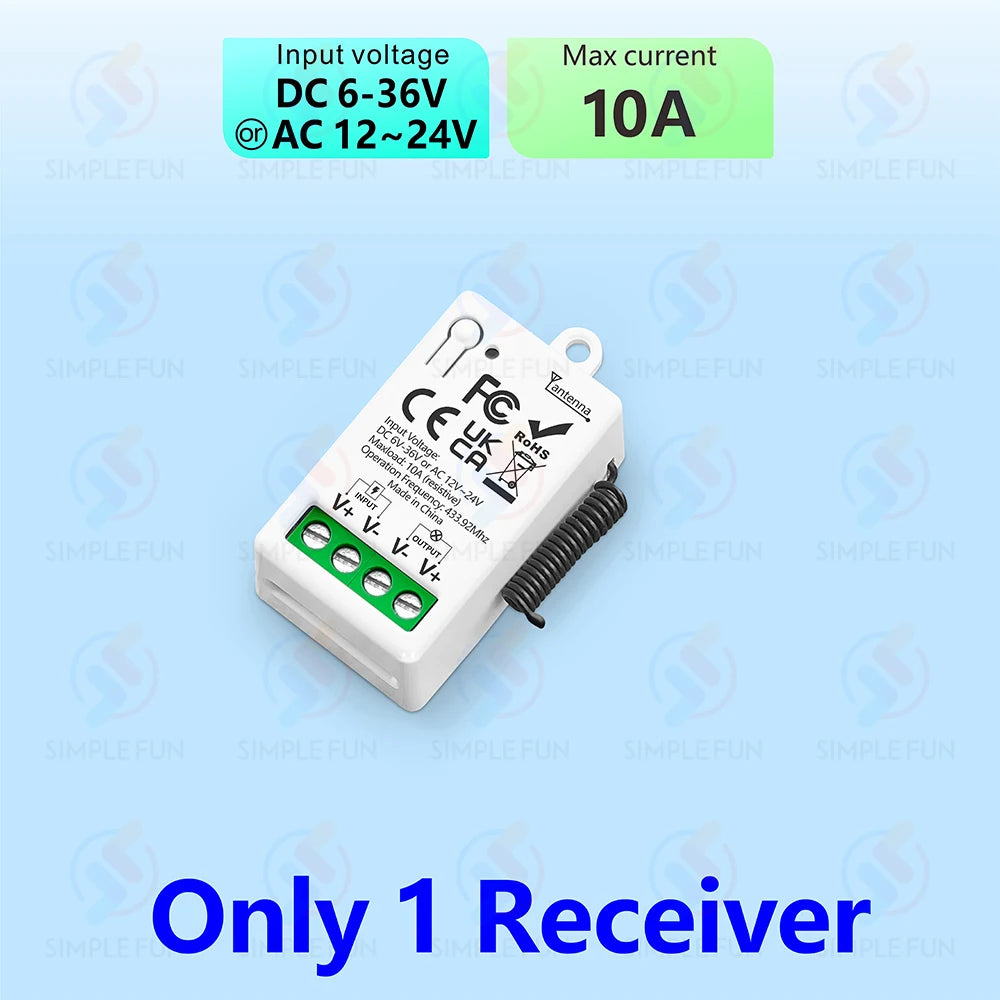

Mini Relay Receiver Board Parameter

●Input voltage : DC 6V~36V or AC 12V~24V

●Max current : 10A

●RF frequency : 433.92Mhz

●Receiver size : 28*22*47 mm

●Working temperature : -30~+80 Celsius

●Receiving Sensitivity : >-97dbm

●Amount of storage remote controls :15 pieces

●Support encoding : EV1527 Learning code

●RF Operating mode : ASK superheterodyne wireless reception

●Remote operating mode : Momentary Mode / Toggle Mode / Latched Mode

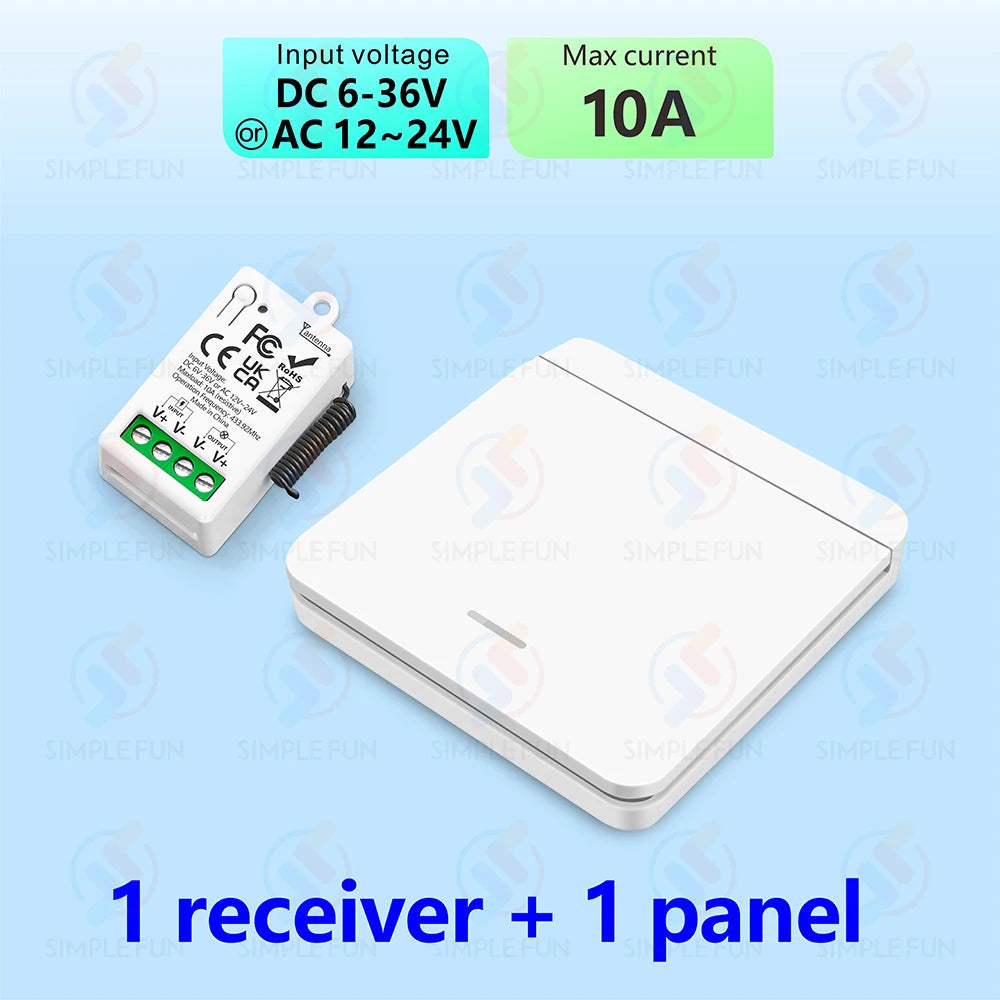

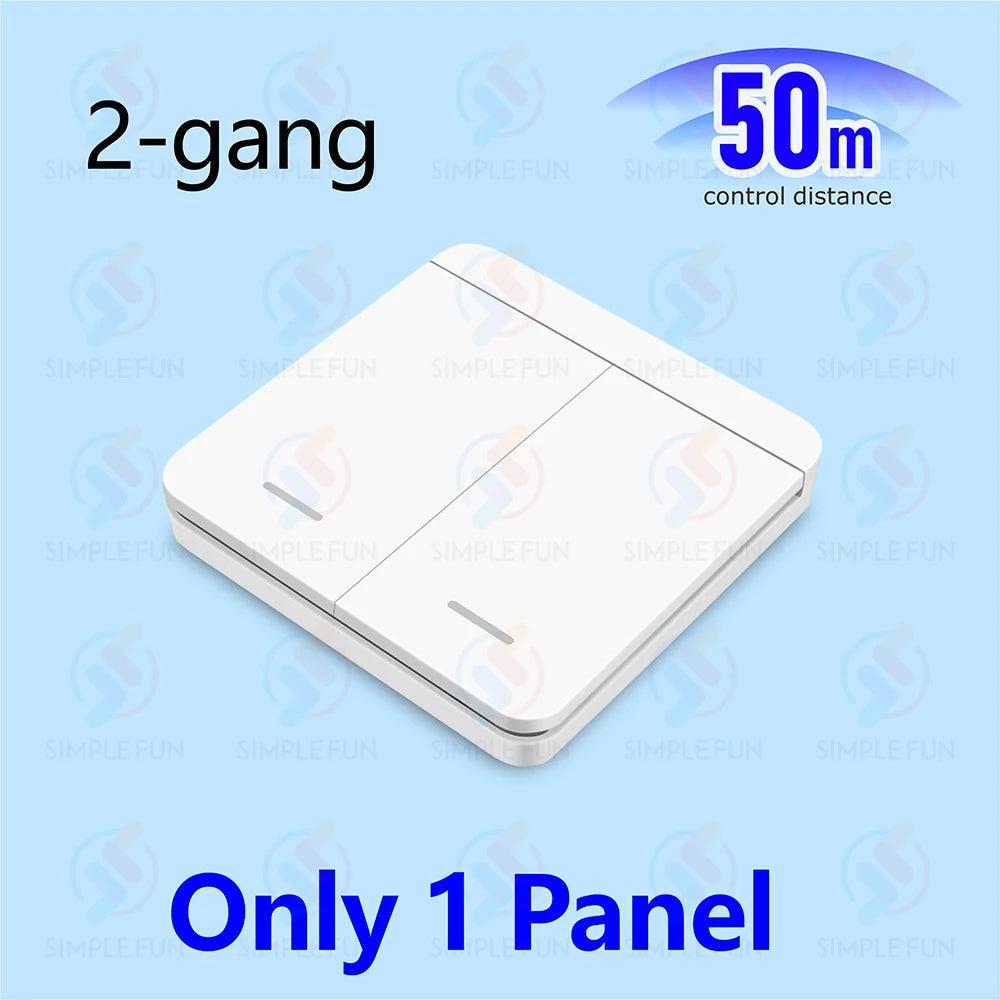

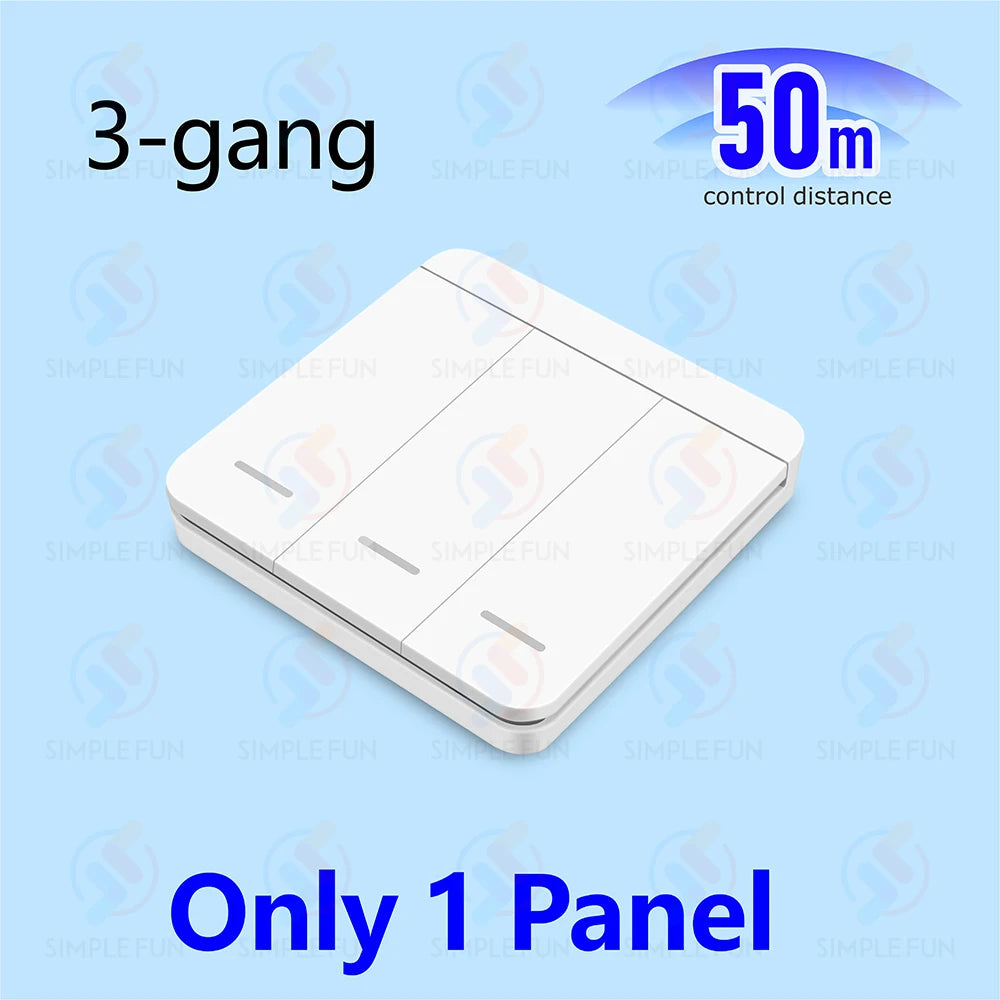

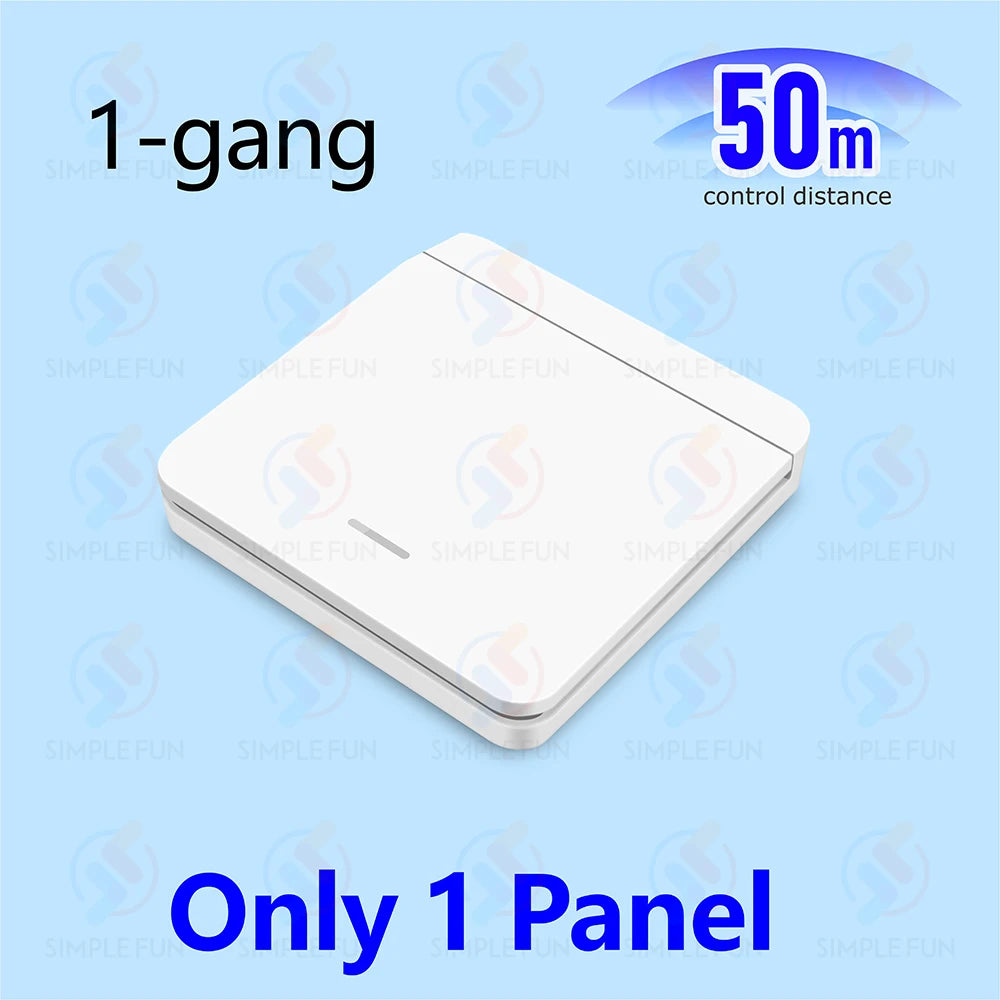

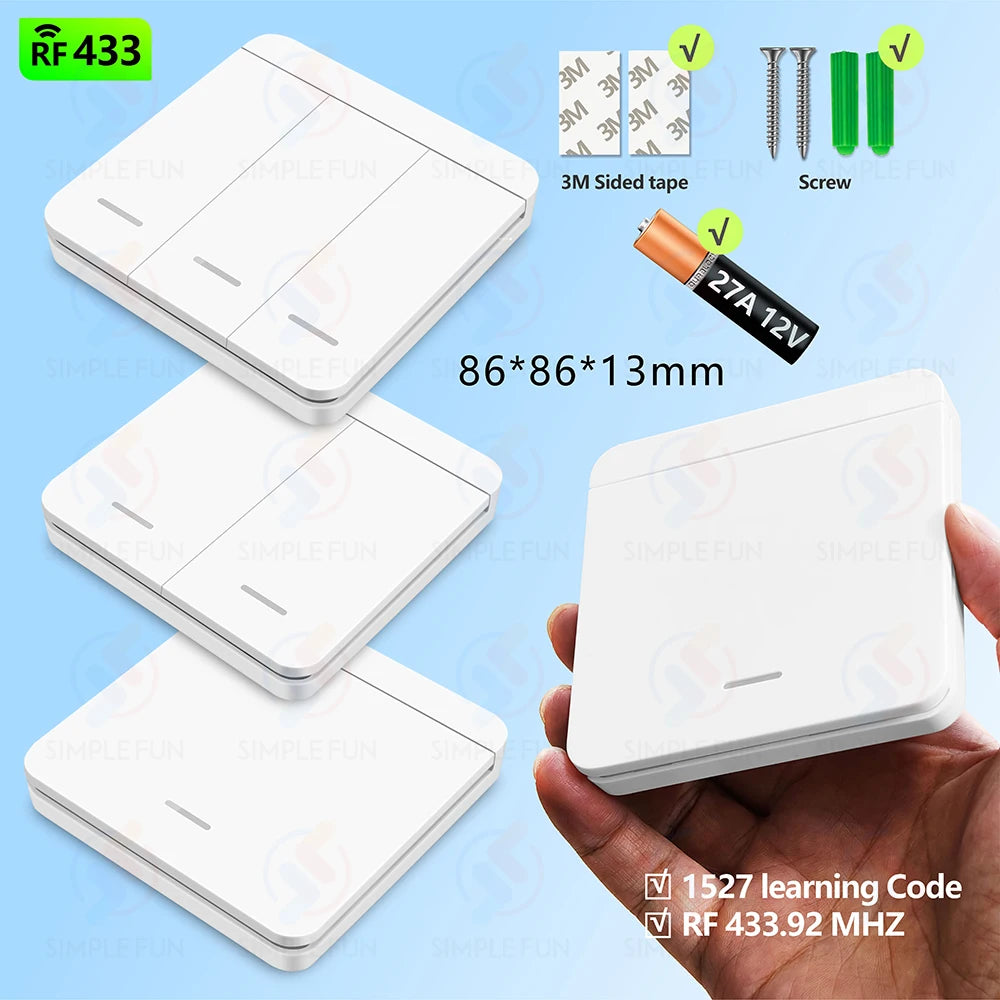

Wireless panel switch Parameter
● RF frequency : 433.92MHz
●Support encoding : EV1527 Leaning code
●Remote distance : up to 50m (theoretical distance)
●Battery : 27A 12V (included)
●Size:86*86*13mm

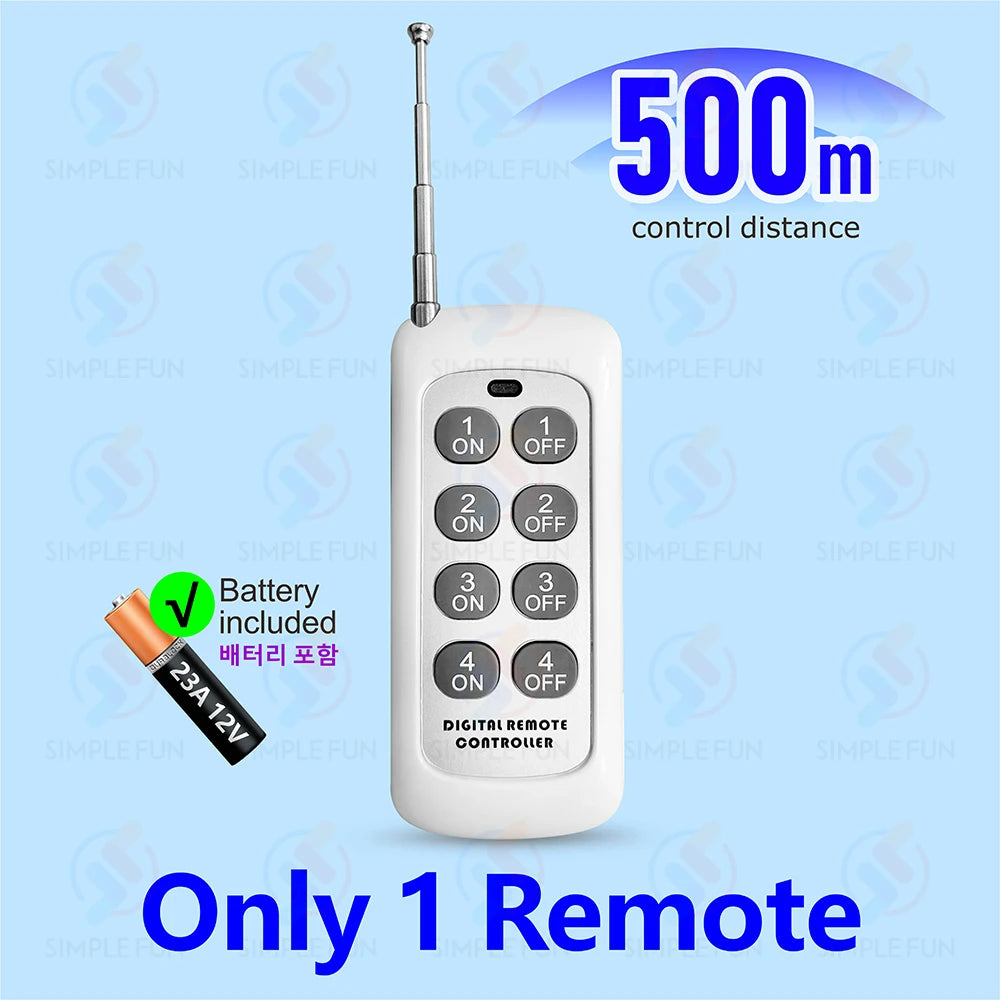

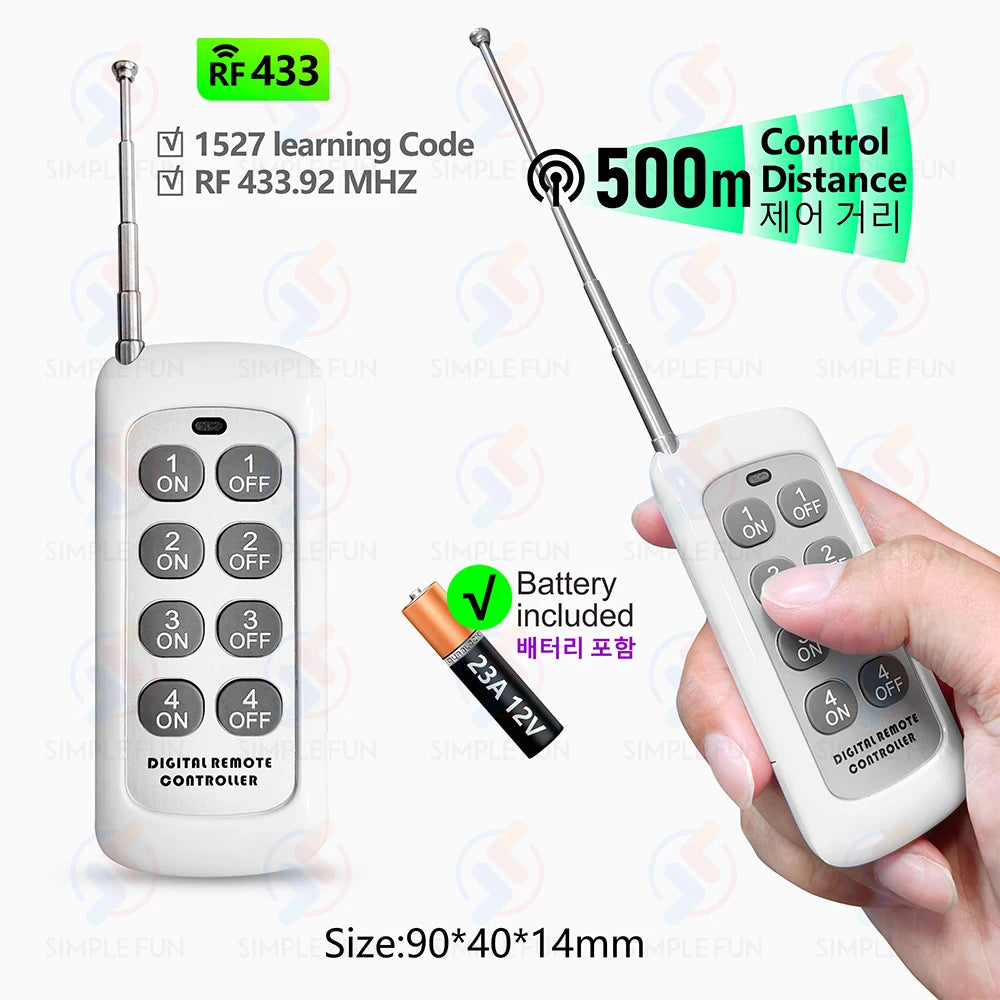

Remote controller Parameter
● RF frequency : 433.92MHz
● Support encoding : EV1527 Leaning code
● Remote distance : up to 500m (theoretical distance)

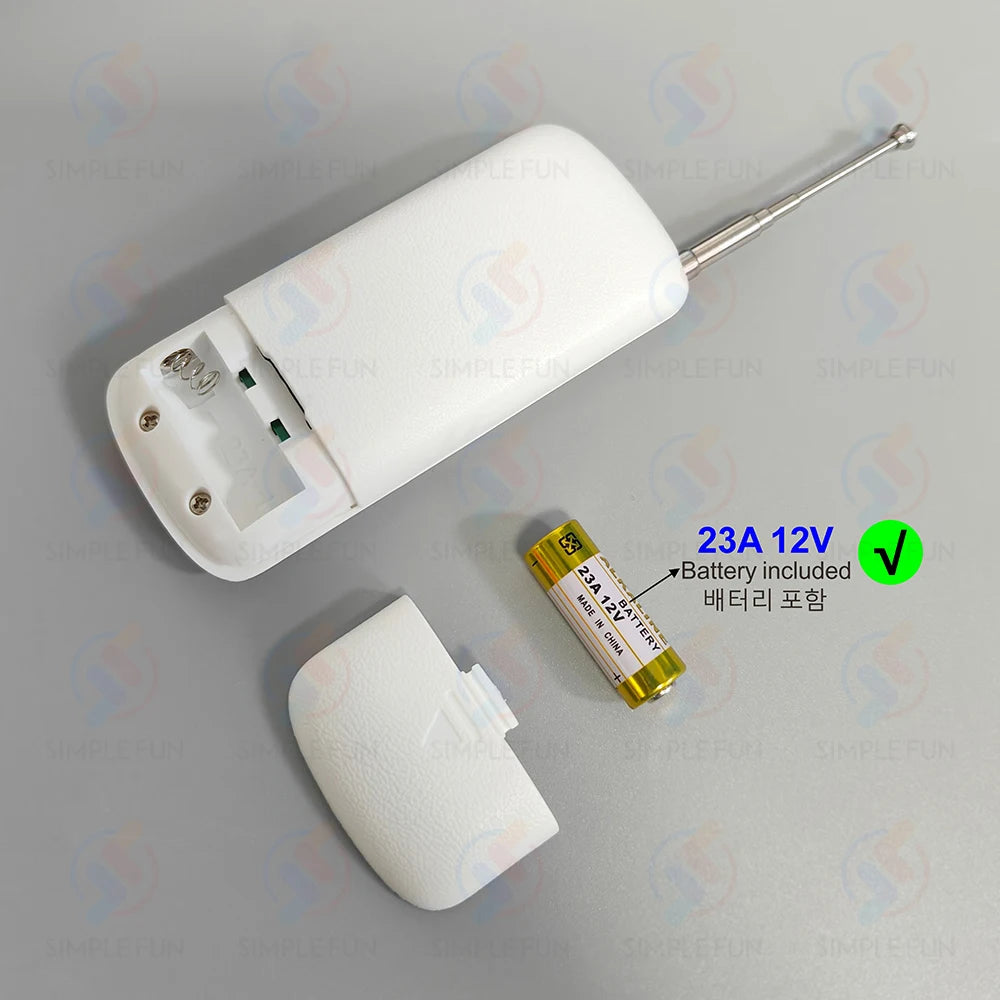

● Battery : 23A 12V (included)
● Size:90*40*14 mm

▶Please contact with us if you have any questions.Thank you.

▶We have own factory,if you want to do ODM OEM bussiness,please contact with us.
