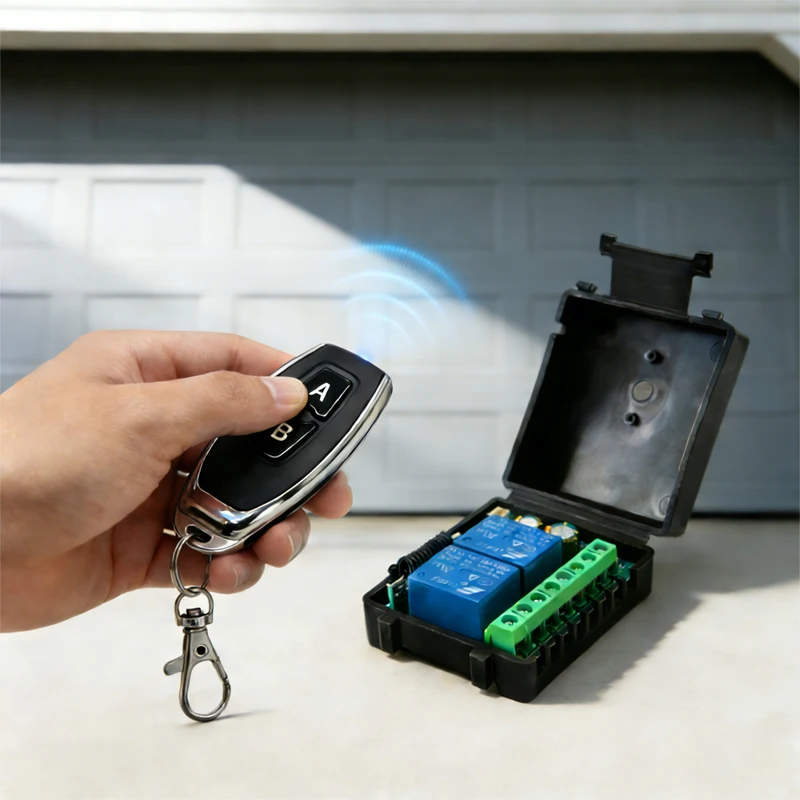

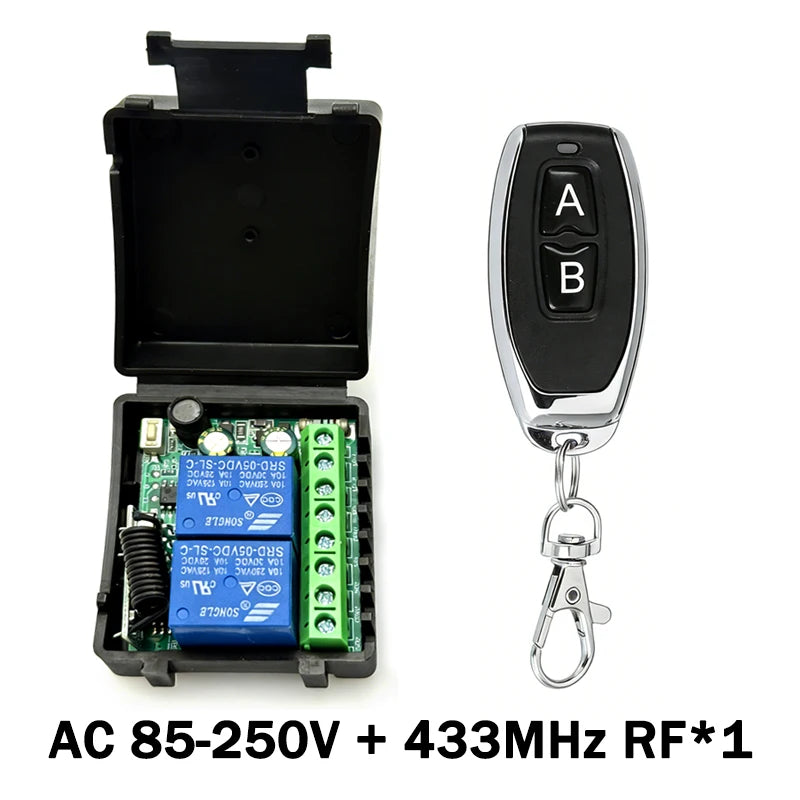

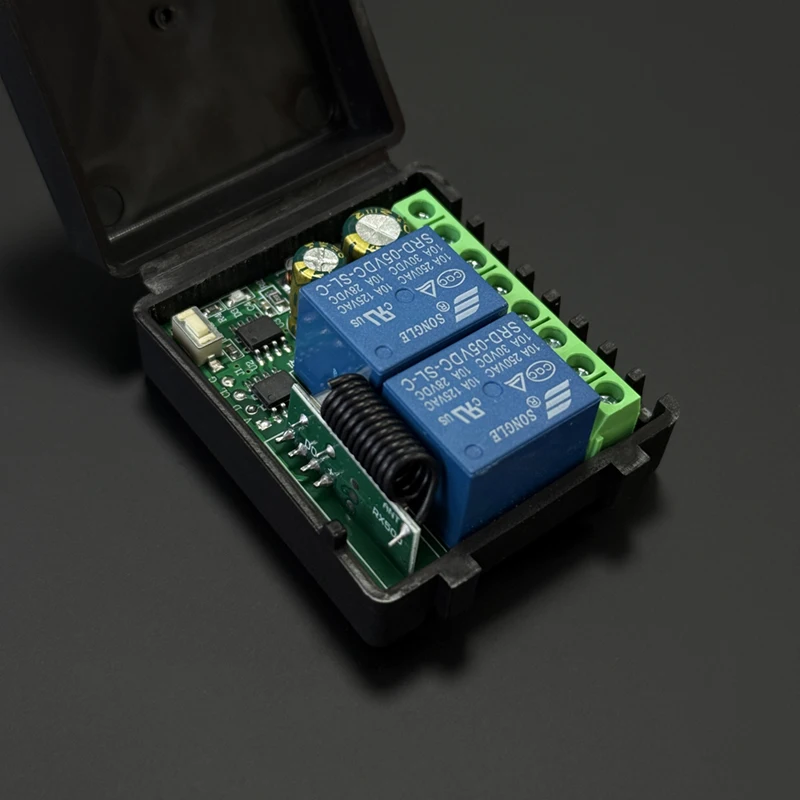

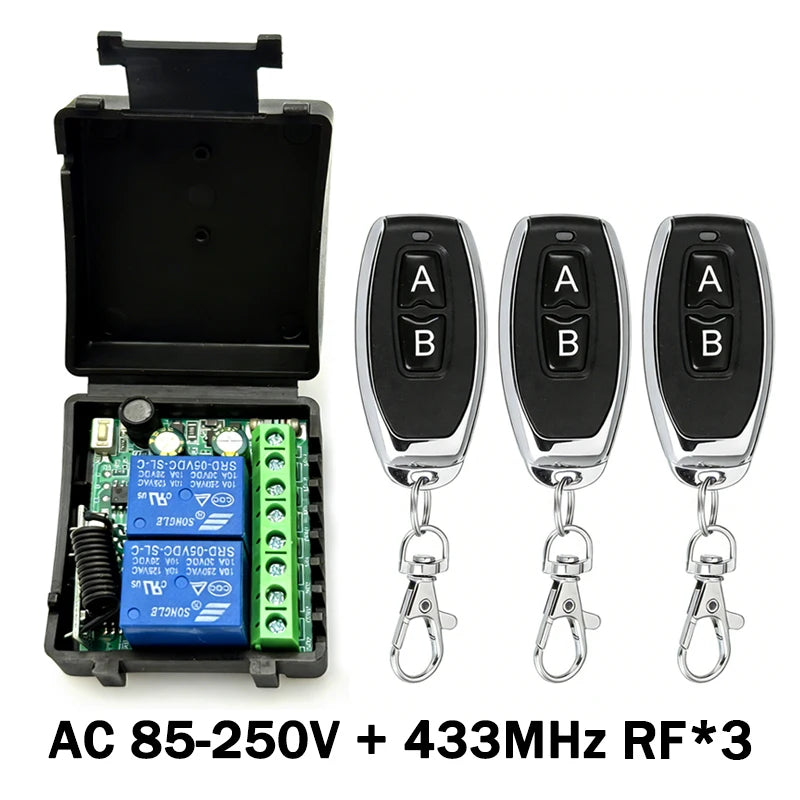

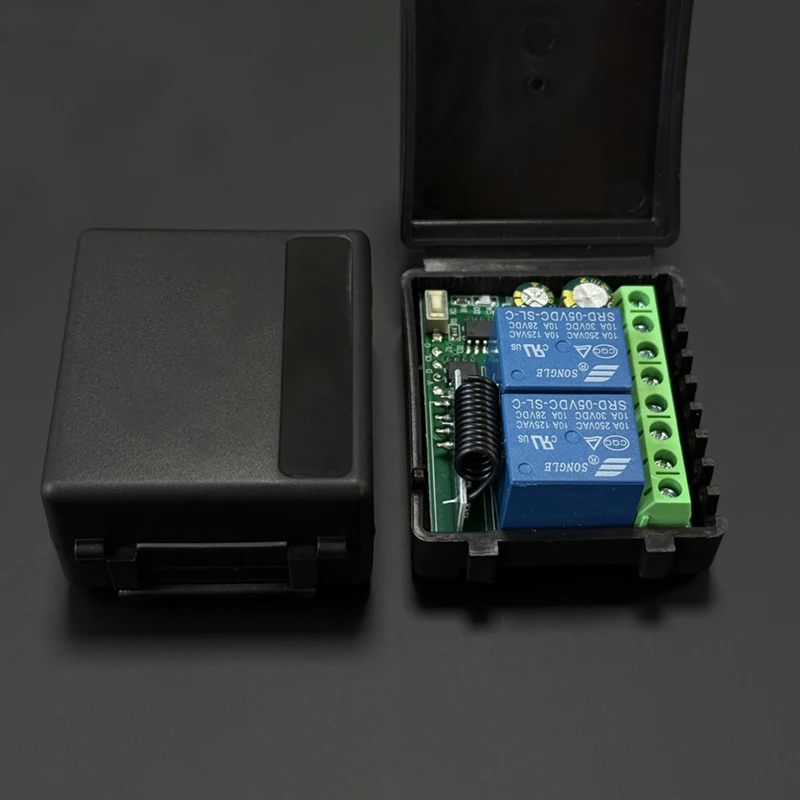

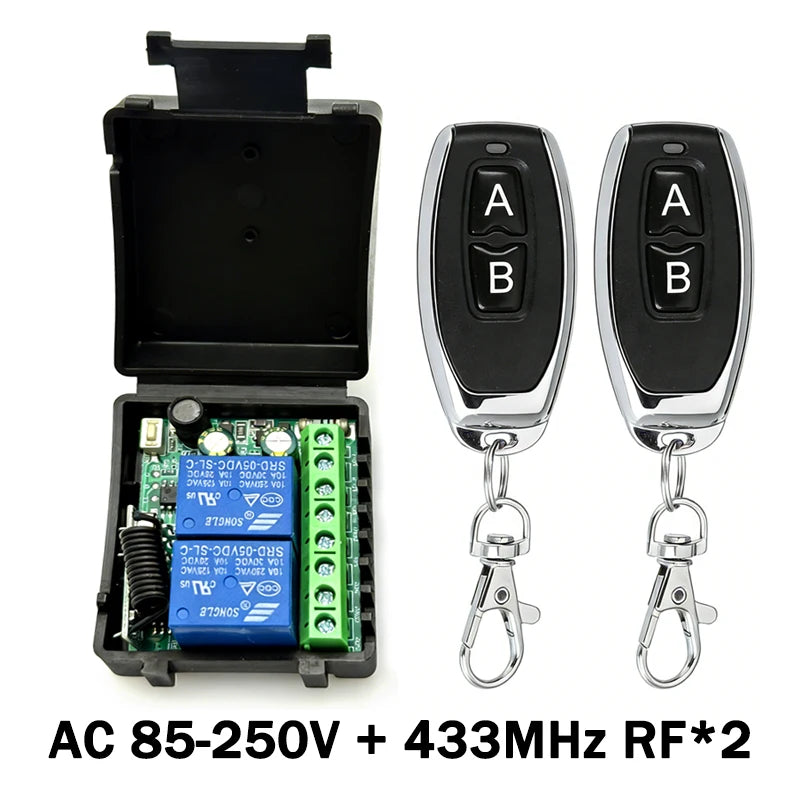

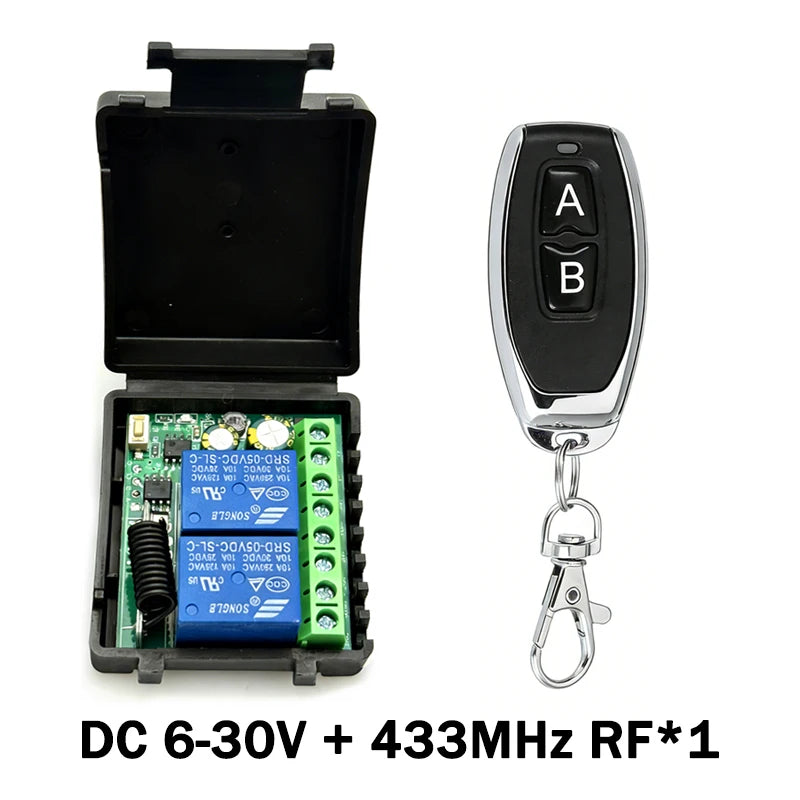

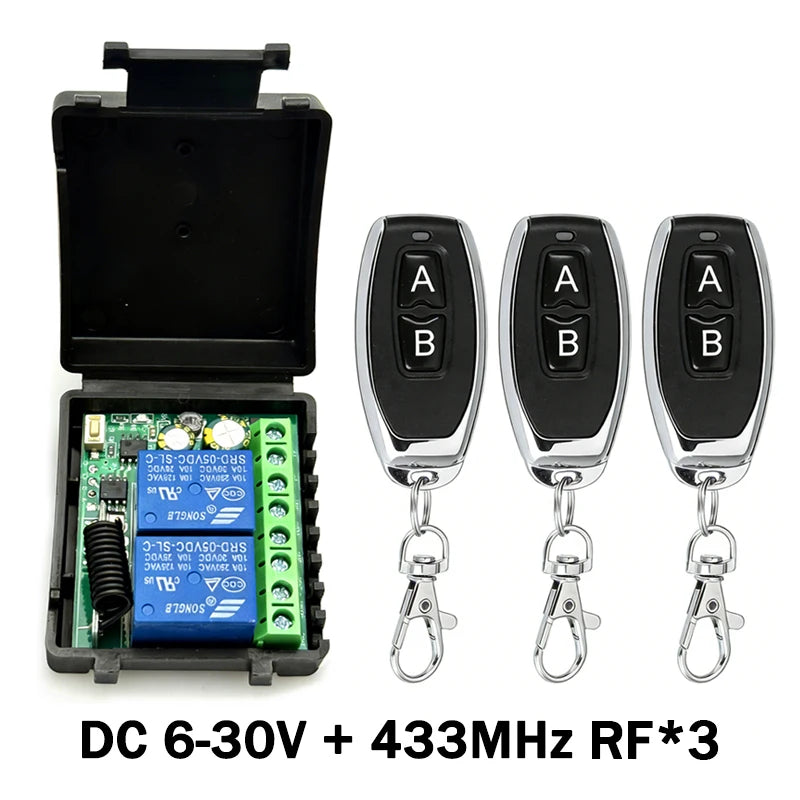

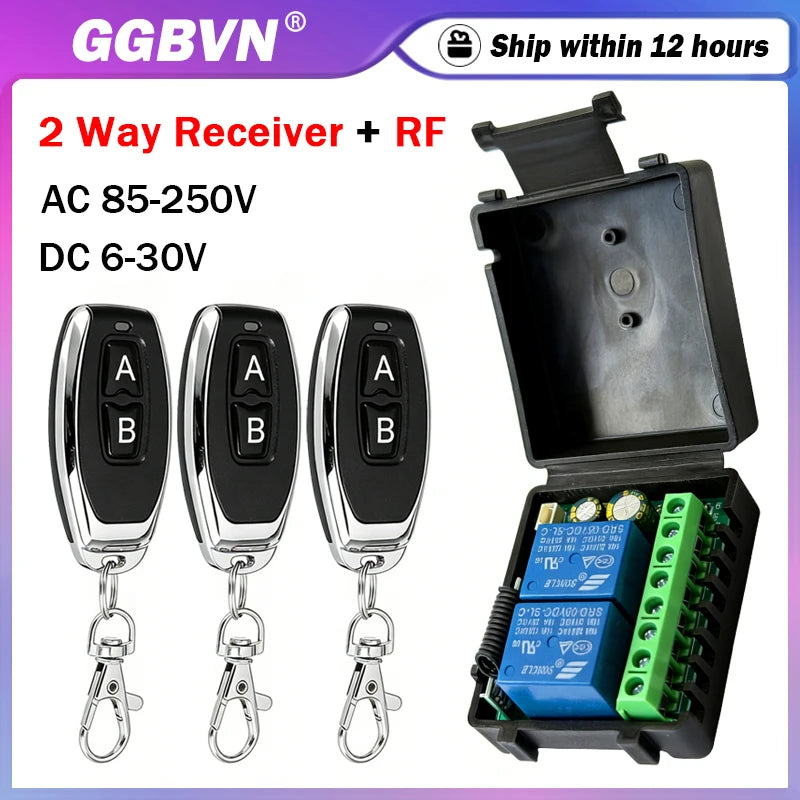

433MHz RF Wireless Remote Control Switch 6-30V 85-250V 2CH Relay Receiver For Door Electromagnetic lock Motors Lighting DIY etc

NOTE-NOTE-NOTE

The receiver is only compatible with 433MHz learning code remote controls.

It is best to use this receiver with our remote control; otherwise, it may be incompatible with other remote controls.

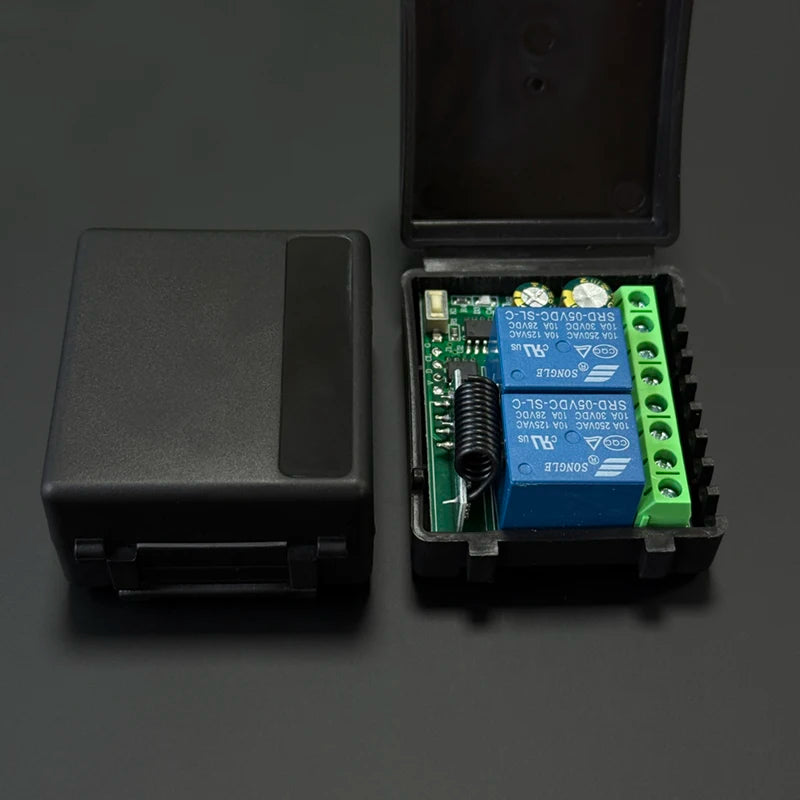

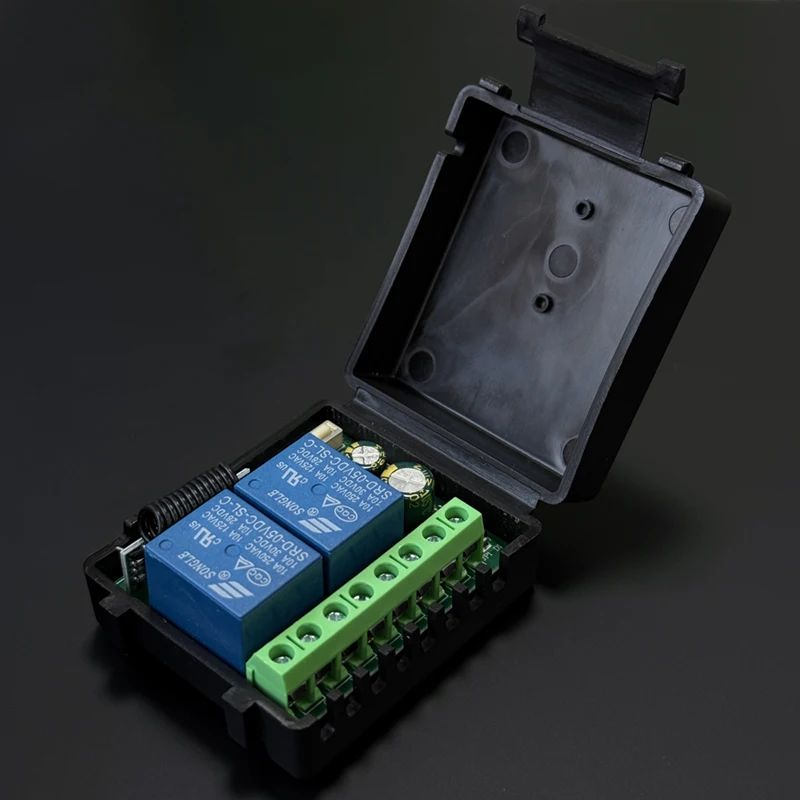

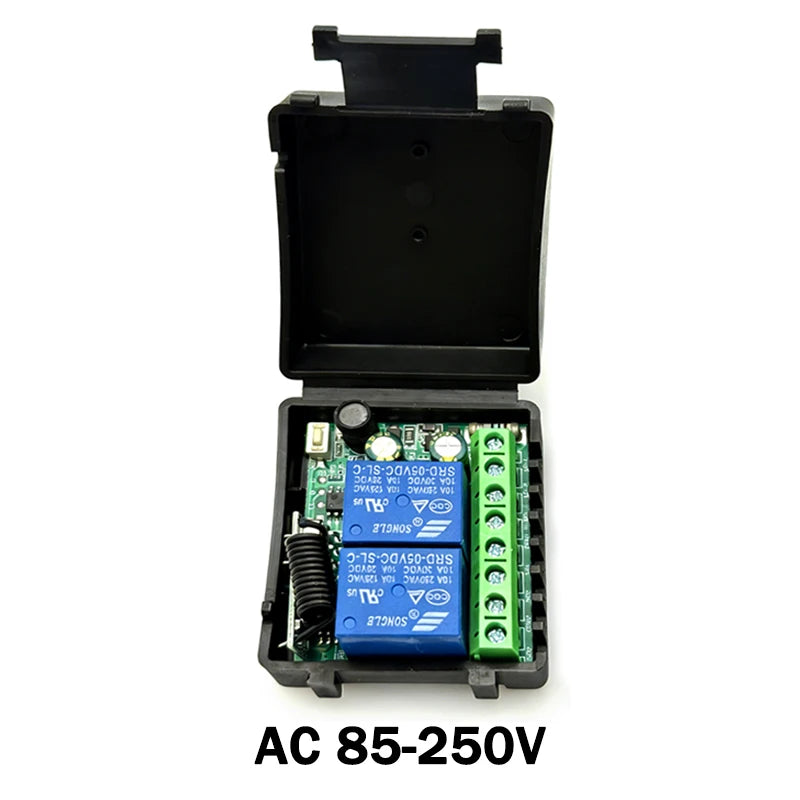

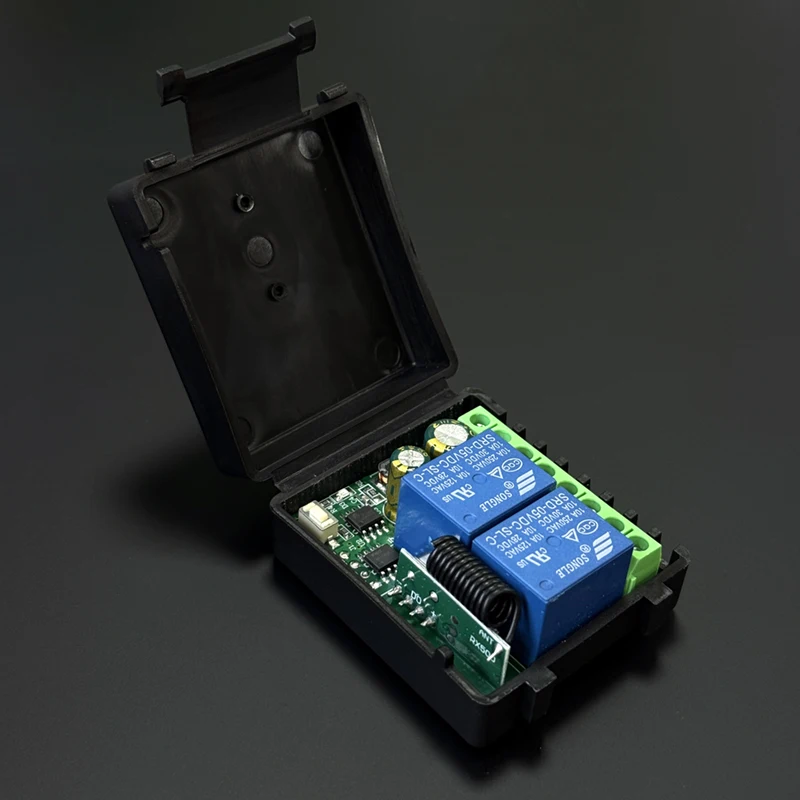

Specification For Receiver

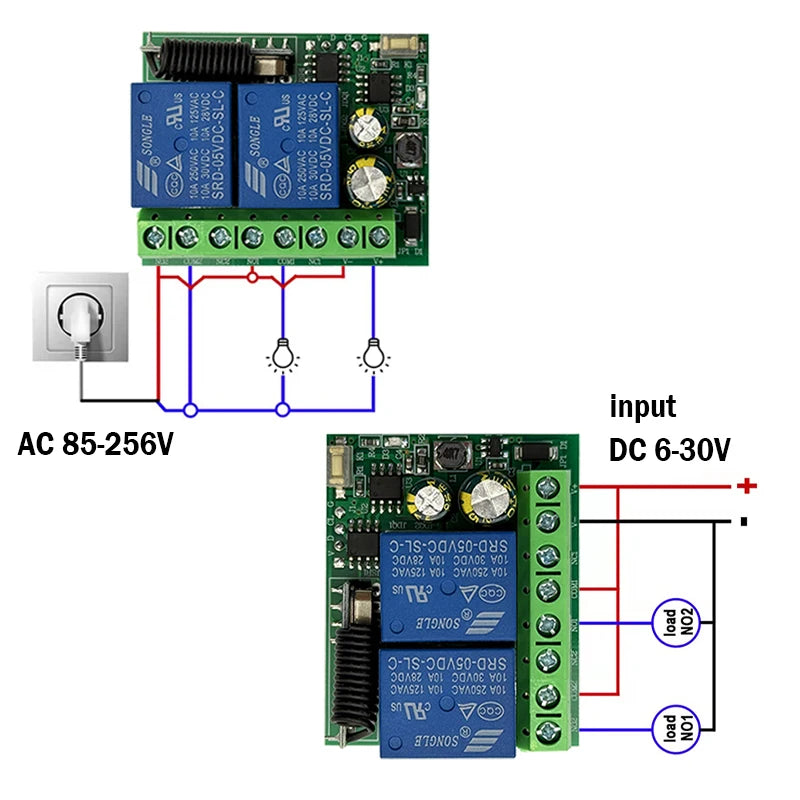

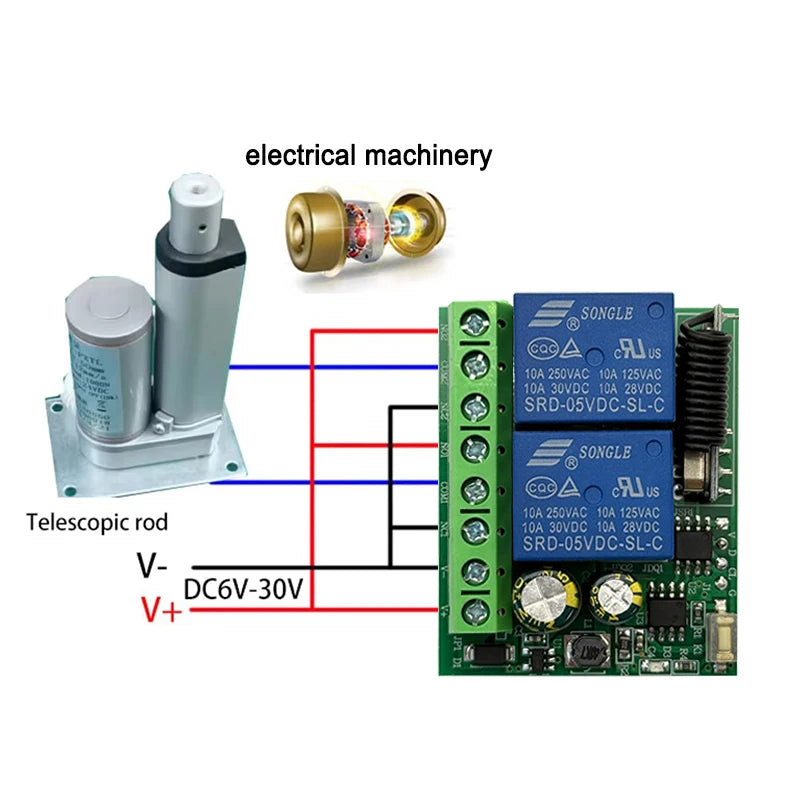

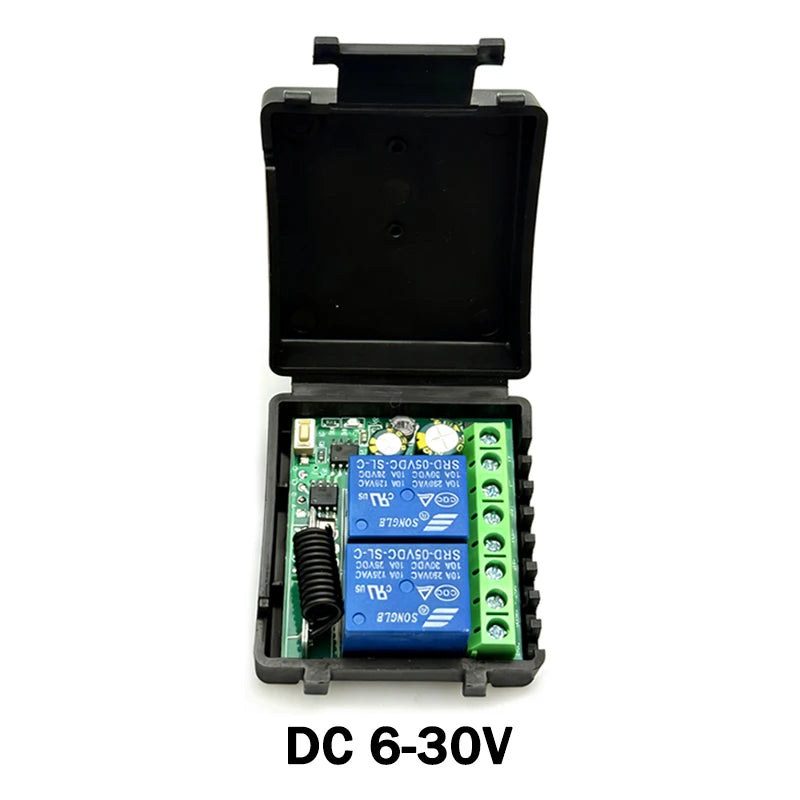

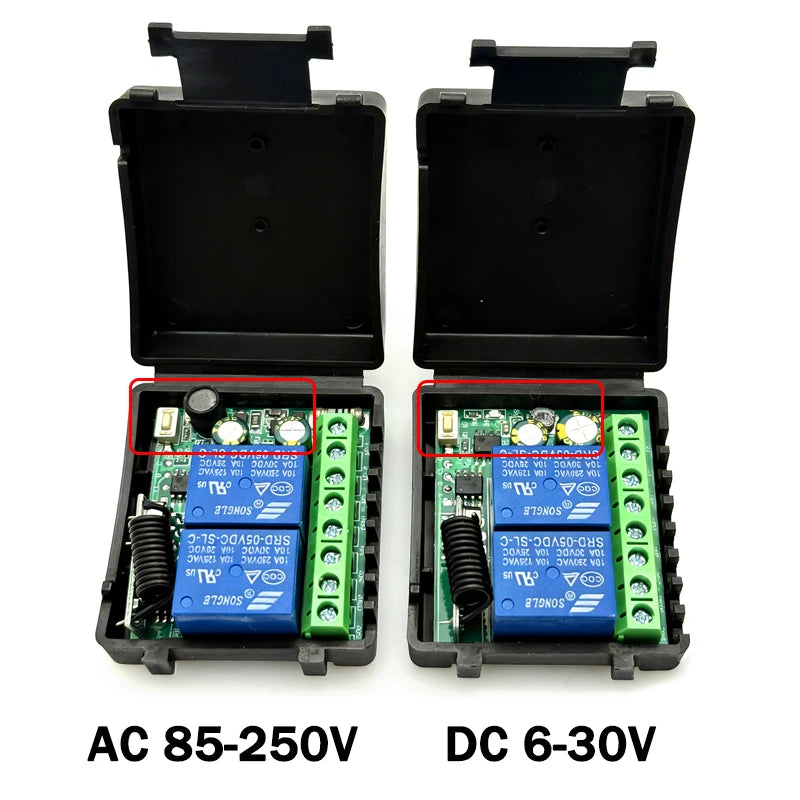

* Operating voltage：DC 6V-30V / AC 85V~265V
* tatic working current：≤10mA
* Operating temperature：-40℃-+80℃
* Receive sensitivity：≥-100dB
* Operating frequency：433.92MHZ
* Output current：≤10A

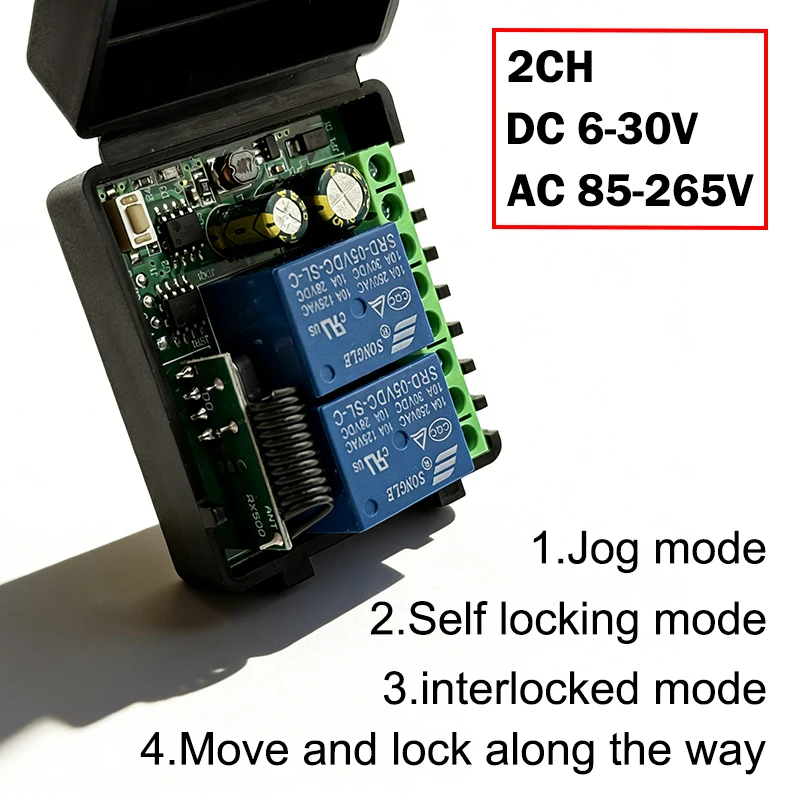

* Working mode: point movement, interlock,self-locking, and delay Move and lock along the way

1.Clear code

Press the control board code matching button 8 times in a row, and wait
for the LED indicator light to automatically flash continuously for 4 times
to return to normal. This will complete the code clearing and clear all
previously learned remote control key codes.

2.Jog mode

Press the code matching button on the control board once, wait for the LED indicator light to
turn off, and then press the remote control A button that needs to be matched. The LED indicator
light on the control board will flash continuously for 3 times. The A button successfully matches
the code, and the indicator light will turn off to enter the second button learning state. At this
time, press the remote control B button,and the LED indicator light on the control board will flash
continuously for 3 times. The B button successfully matches the code, and the indicator light
will remain on continuously, completing the code matching.

3.Self locking mode

Press the control board code matching button twice in a row, wait for the LED indicator light to
turn off, and then press the remote control A button that requires code matching. The control
board LED indicator light will flash continuously for three times. The A button successfully
matches the code, and the indicator light will go out to enter the second button learning state.
At this time, press the remote control B button, and the control board LED indicator light will
flash continuously for three times. The B button successfully matches the code, and the indicator
light will stay on for a long time. The code matching is completed.

4.interlocked mode

Press the control board code matching button three times in a row, wait for the LED indicator
light to turn off, and then press the remote control A button that needs to be matched. The
control board LED indicator light will flash three times in a row. The A button successfully
matches the code, and the indicator light will turn off to enter the second button learning state.
At this time, press the remote control B button, and the control board LED indicator light will
flash three times in a row. The B button successfully matches the code, and the indicator light
will remain on for a long time. The code matching is completed.

5.Move and lock along the way

Press the control board code matching button 4 times in a row, wait for the LED indicator light
to turn off, and then press the remote control A button that needs to match the code. The
control board LED indicator light will flash continuously for 3 times. The A button successfully
matches the code, and the indicator light will turn off to enter the second button learning state.
At this time, press the remote control B button, and the control board LED indicator light will
flash continuously for 3 times. The B button successfully matches the code. The indicator light
remains on and the code is completed.

Wide range of applications

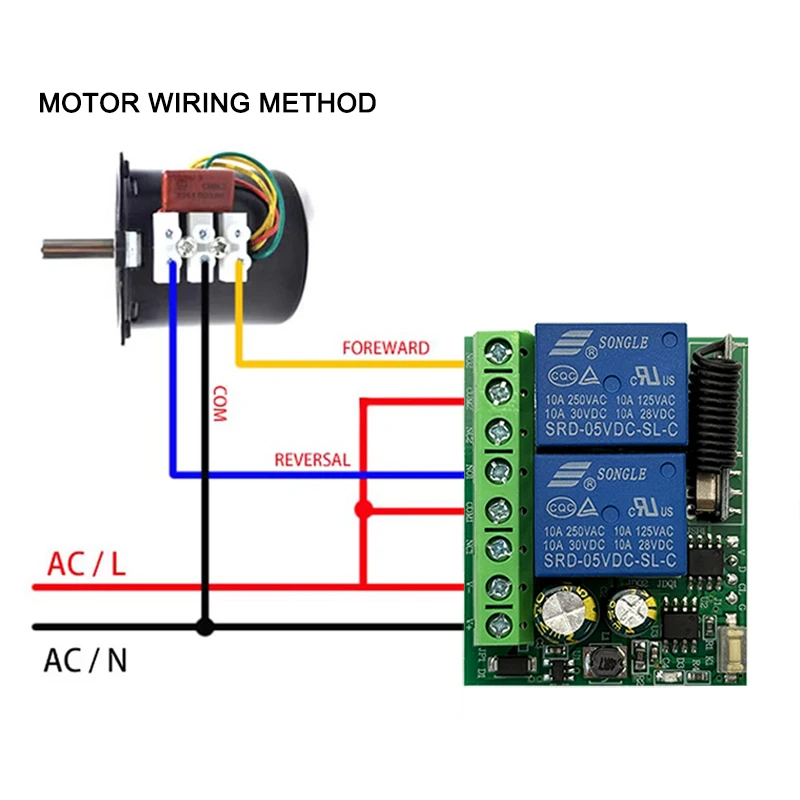

1，garage doors，Gate Doors，Electric Gate，Swing gate

2，motorcycles，car alarm products

3，home security products，short-range wireless remote control products

4，industrial control products，Alarm Systems etc

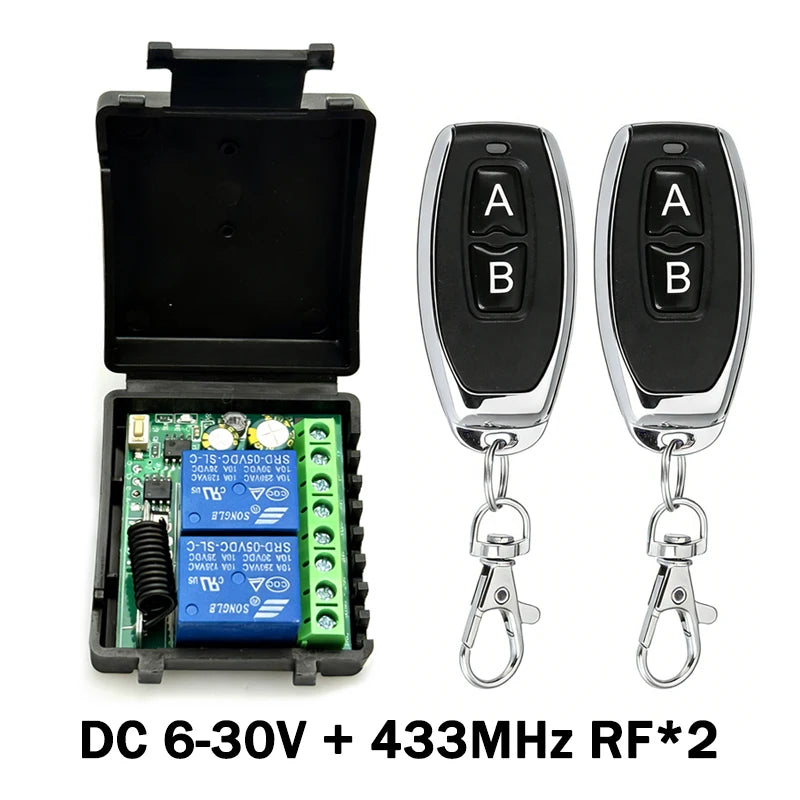

Include

Receiver
English Manual

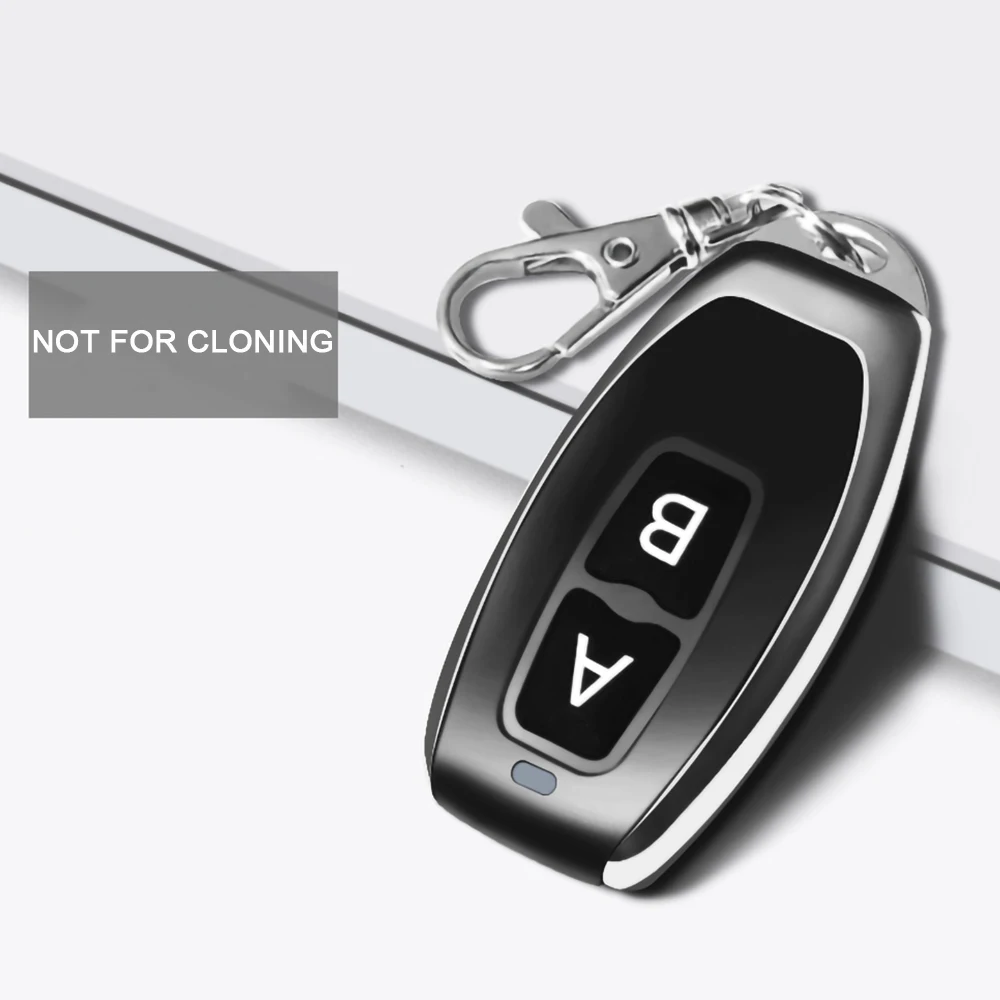

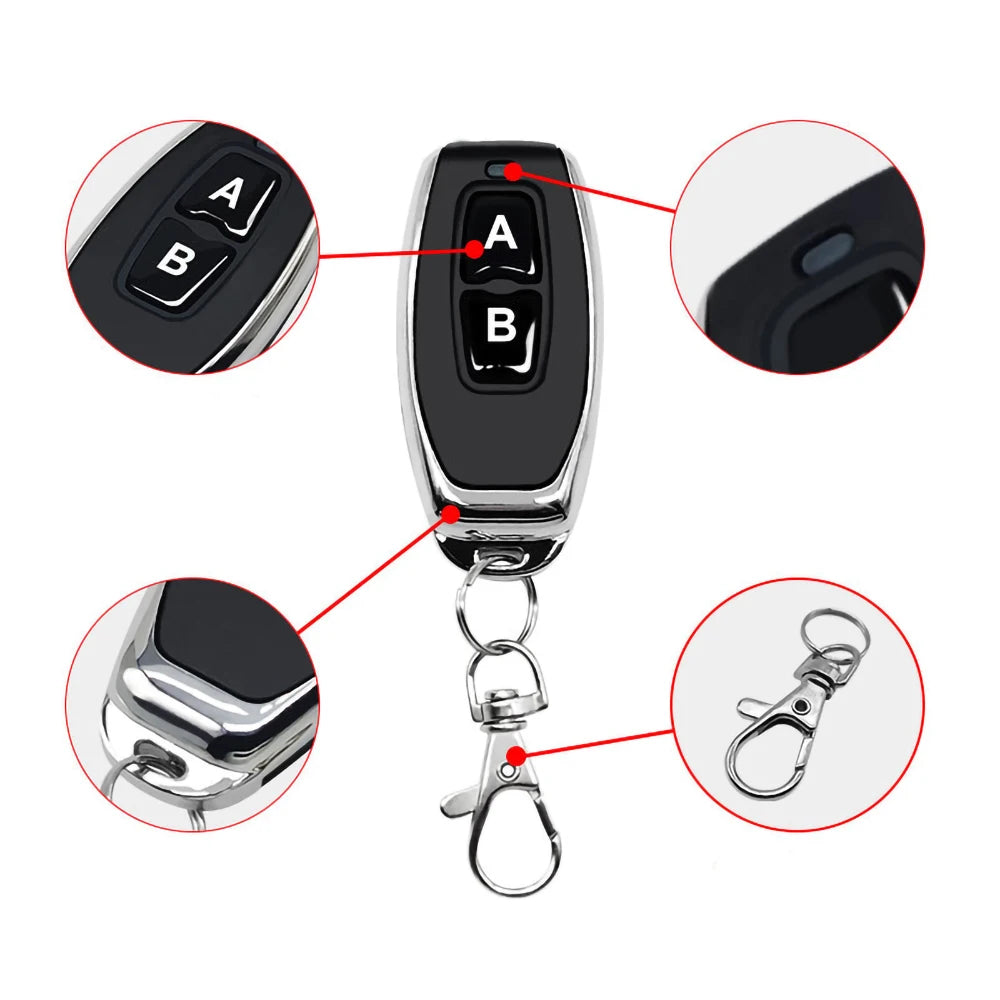

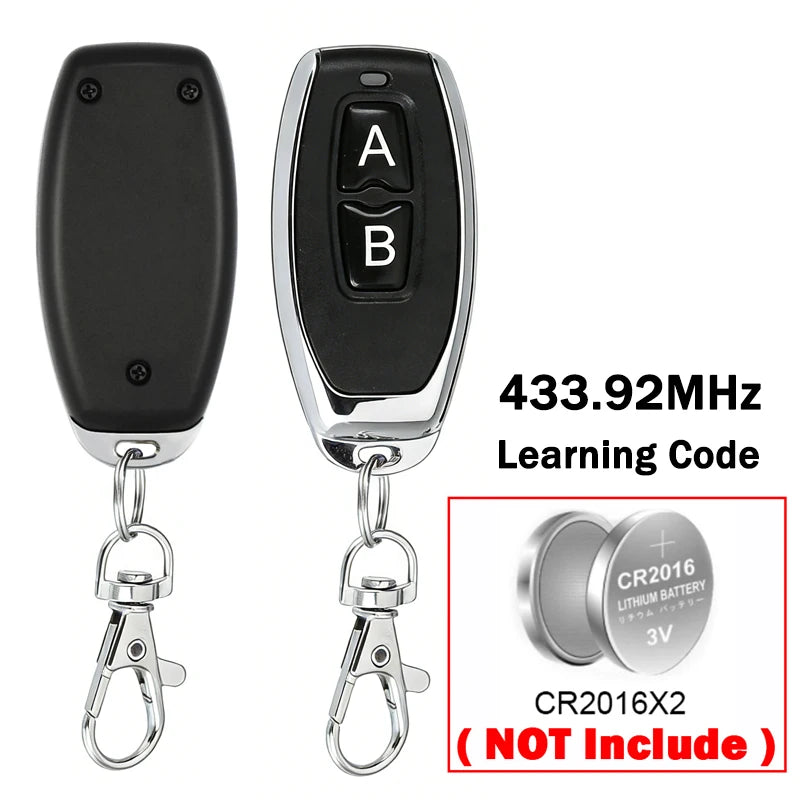

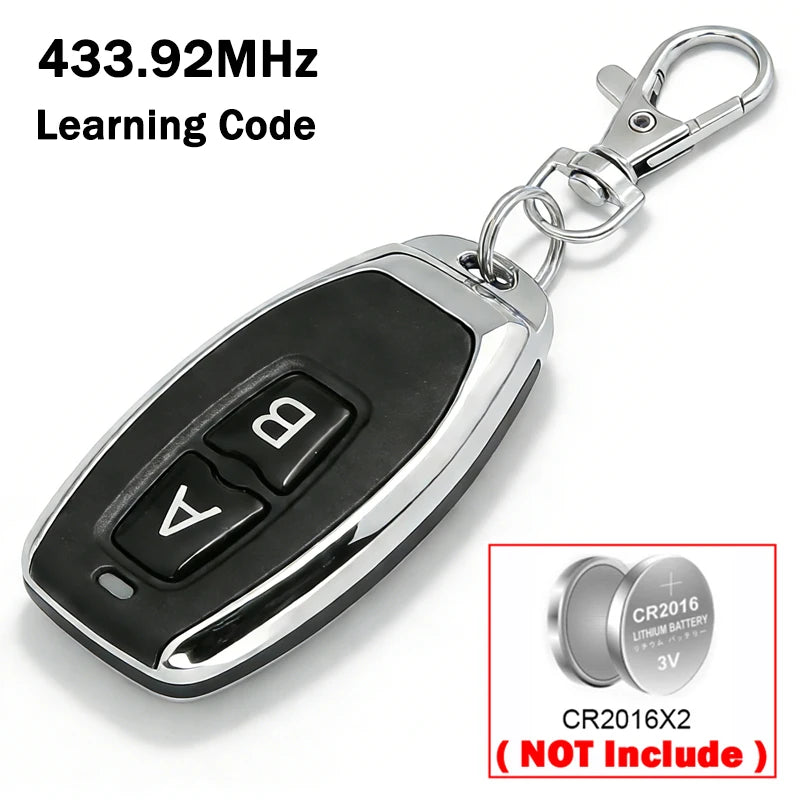

Description For Remote Control

Operating frequency: 433MHz
Battery: Battery not included ,
Material: PVC.
Button: 2 buttons
Encoding type: 433MHz 1527 Learning Code.
Transfers distance: 10-100m

Remote Control:No battery
