SPECIFICATIONS

10 inch Monitor: supports 5GWifi, 2.4Wifi

10inch touch screen: add 1pcs 32G Card

Access Control: Password

Answering Mode: Hands-free

Brand Name: HSmartcam

Camera: COLOR

Camera Sensor type: CCD

Certification: CE

Choice: yes

Communication Interface: Wired

Connection Method: Wired

Display Screen Size(inch): 10

Display Screen Type: Color Touch Screen

Doorbell: Yes

Doorbell Material: Aluminum alloy+ABS rain cover

Doorbell Operating Tempe: -40℃ ~ + 60℃

Doorbell Perspective: 140°

Electronic Locks Connection: Support

HD 1080P Camera: View Angle lens:2.1mm 140 Degree

HD 1080P Resolution: 10 inch IPS LCD Touch Monitor

High-concerned chemical: None

IP Camera Interface: Yes

Installation: Wall Mounting

Keypad: Touch button

Kit Configuration: One to One video doorphone

Material: metal

Model Number: W07-IP10YS

Motion Detection: Support

Origin: Mainland China

Outdoor Camera: Support night vision

Outdoor Camera Resolution: AHD 1080P

Power (W): 220v

Remote Control Support: Iphone,Android Phone,Ipad,PC

Resolution: 1080p

Samrt Home Interface: No

Sensor Size(Inch): 1/3

Size: 10" IPS LCD video doorphone

Smart home platform: Tuya

Technology: DIGITAL

Tuya smart app: support video door phone intercom system

Type: intercom system

Type Intercom System: Waterproof: Yes

Viewing Angle (°): 140

Waterproof: Yes

Waterproof Camera: Support Inductive Card Unlocking

Zone Input: None

semi_Choice: yes

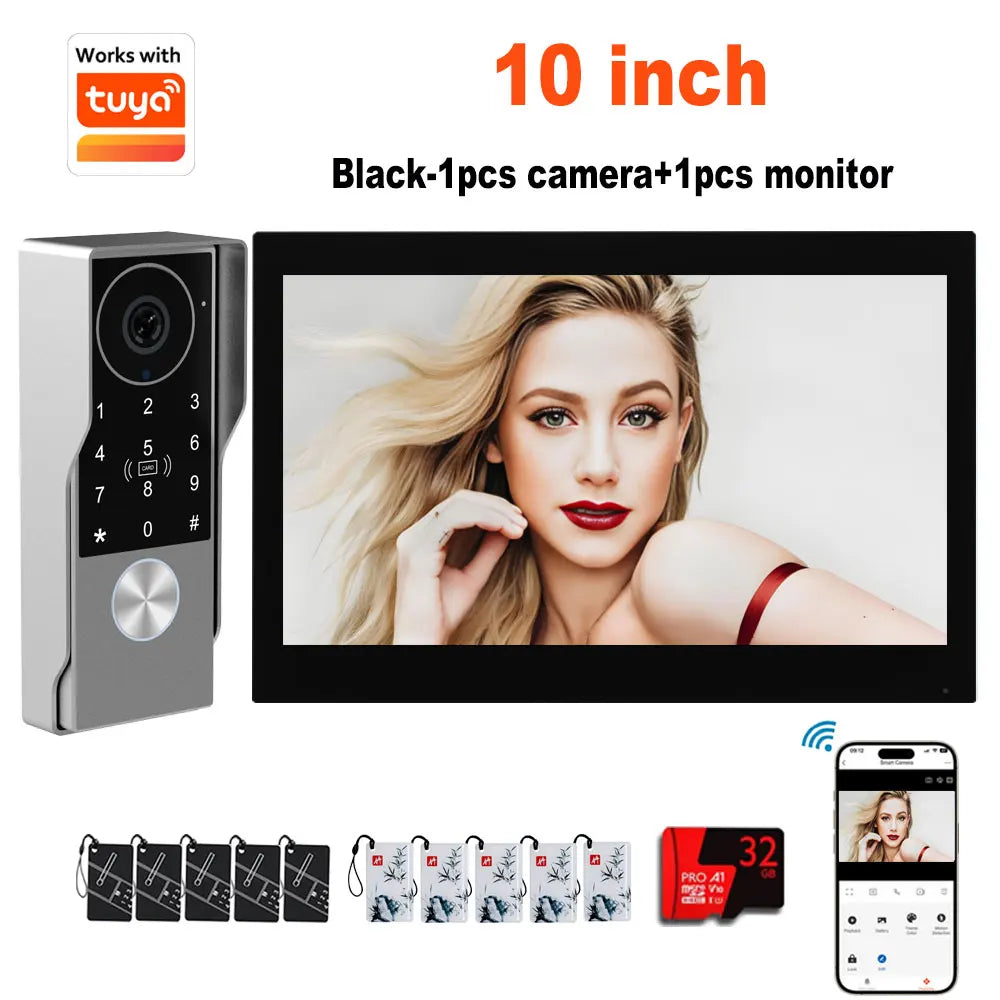

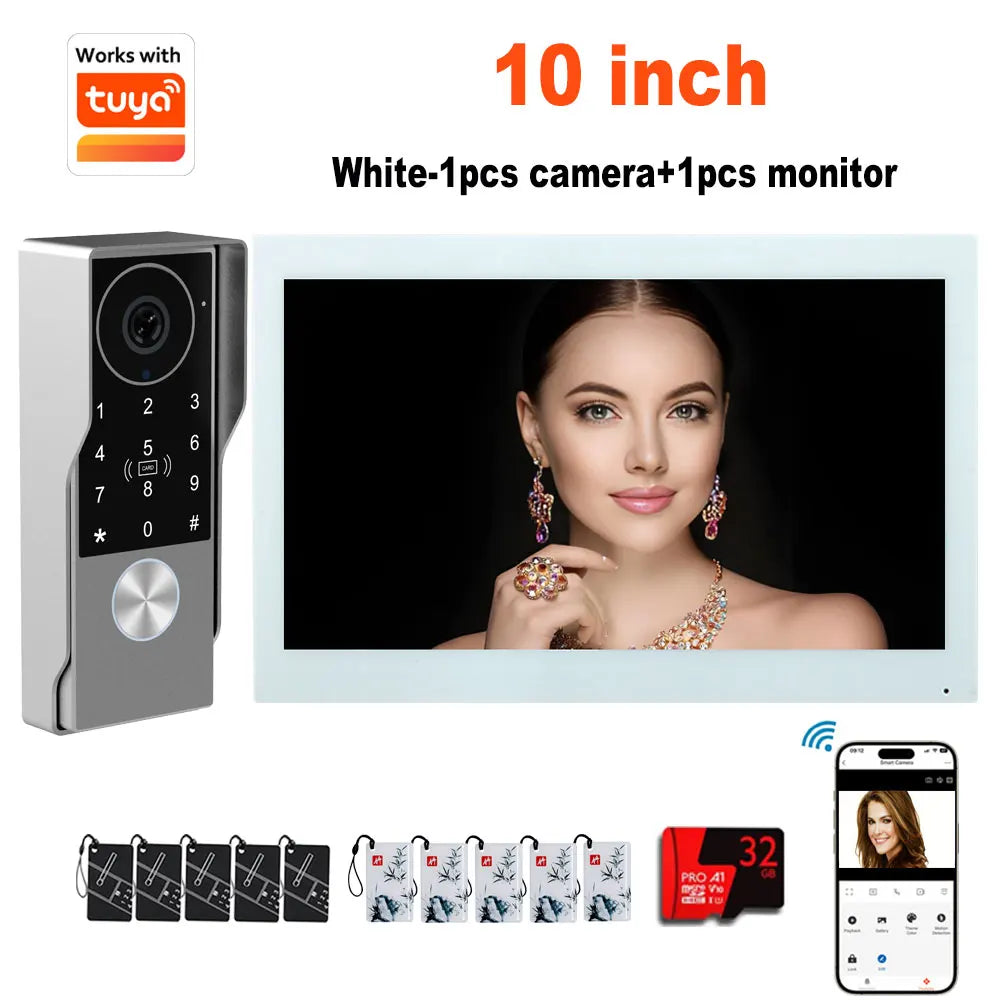

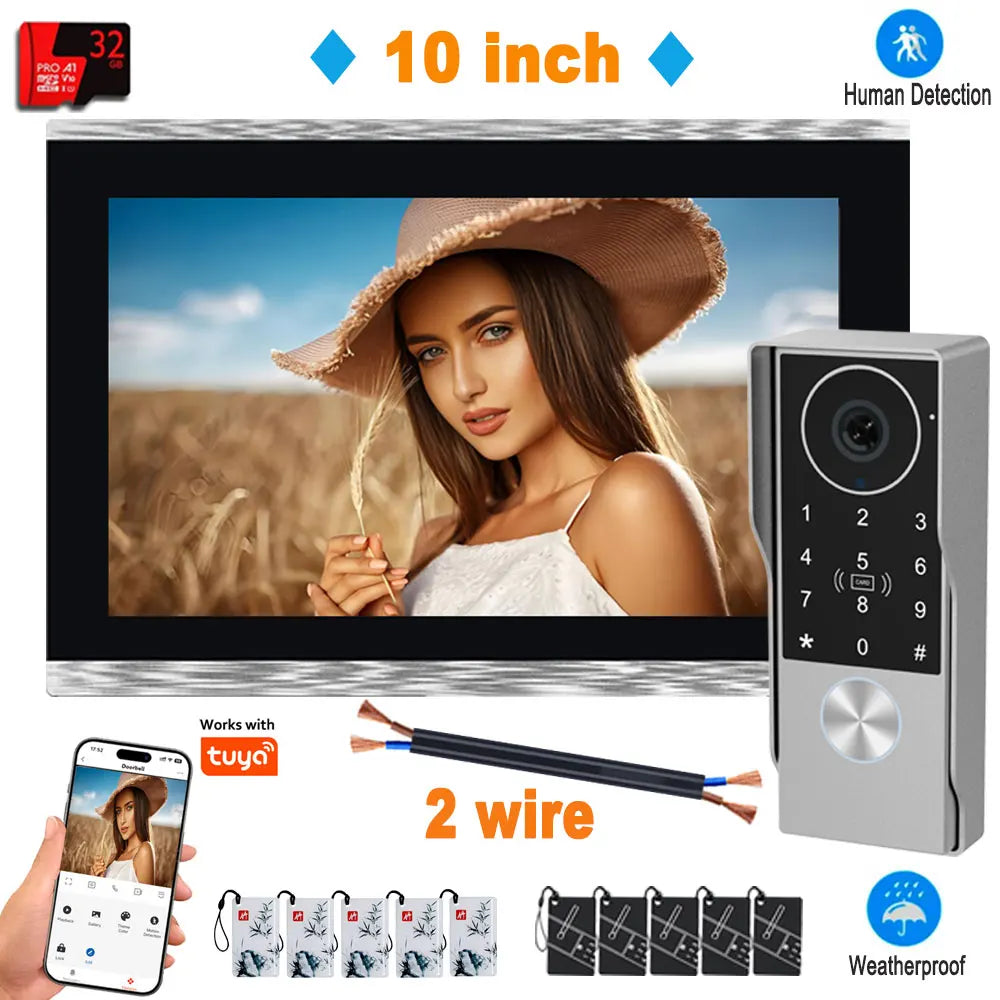

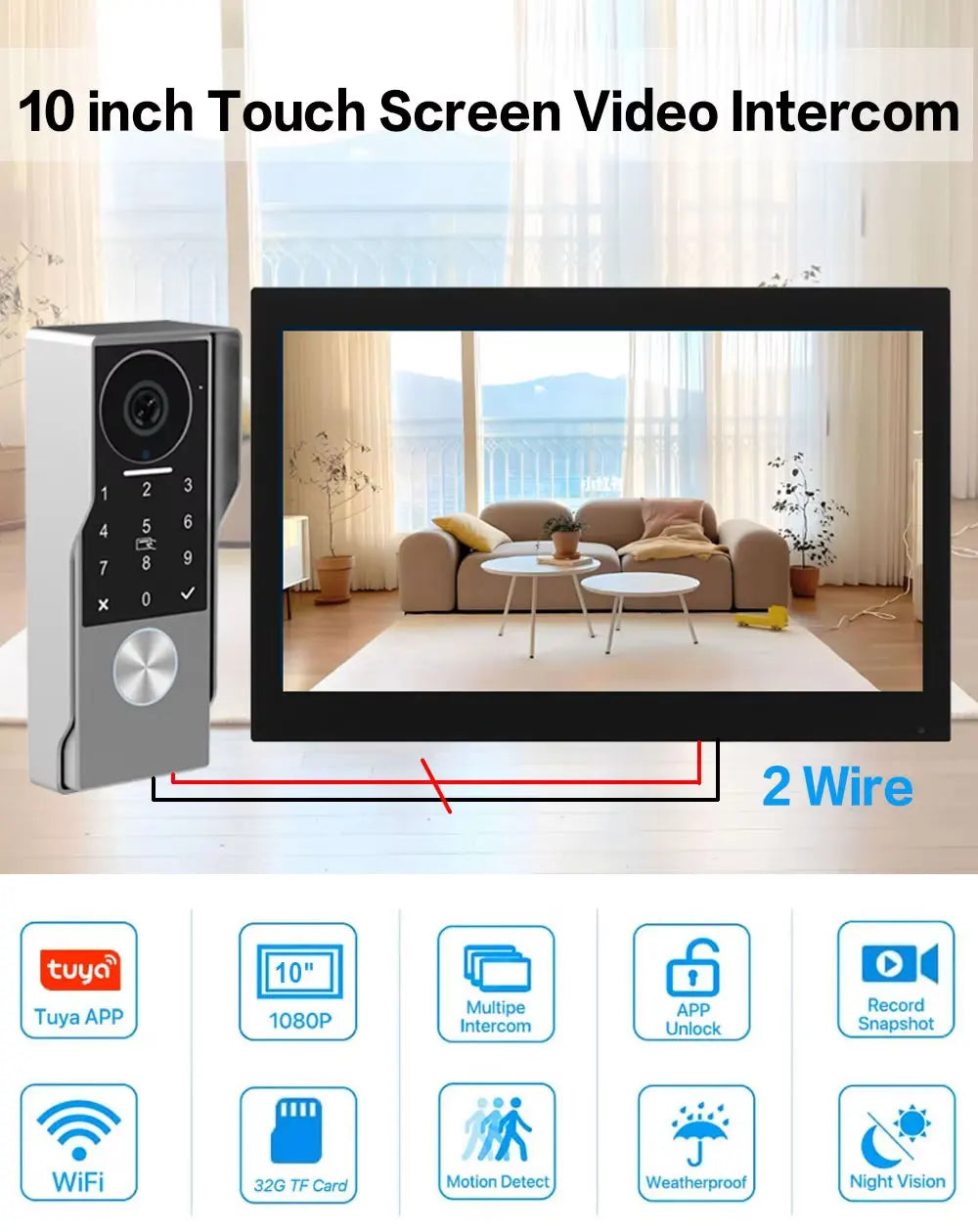

2 Wire Tuya App 10'' Touch Monitor Video Door Phone 1080P Camera IC Card PIN Unlock Support 5G Wifi Smart Video Intercom System for Home

2-Wire TUYA Smart Video intercom doorbell 1080P Waterproof Camera 5G Wifi 7/10inch Touch Screen Support Password Inductive Card2-Wire TUYA Smart Video intercom doorbell 1080P Waterproof Camera 5G Wifi 7/10inch Touch Screen Support Password Inductive Card

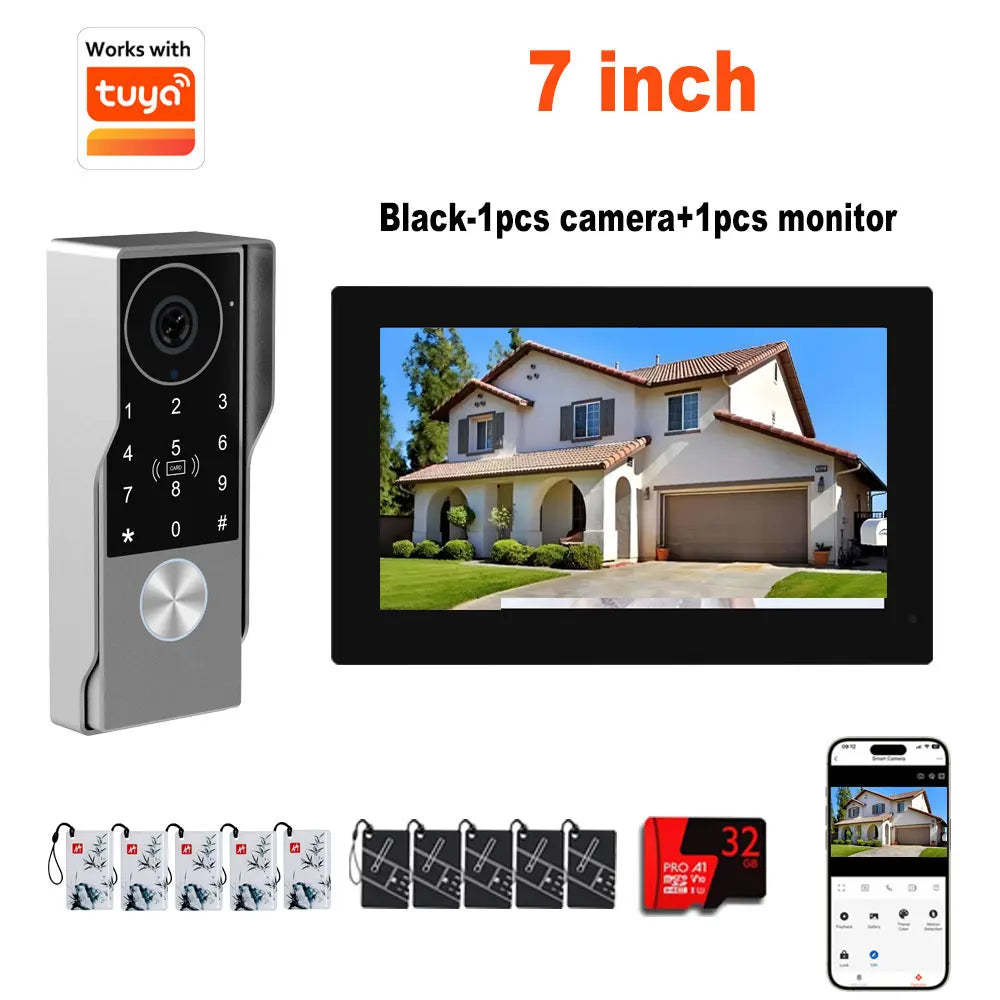

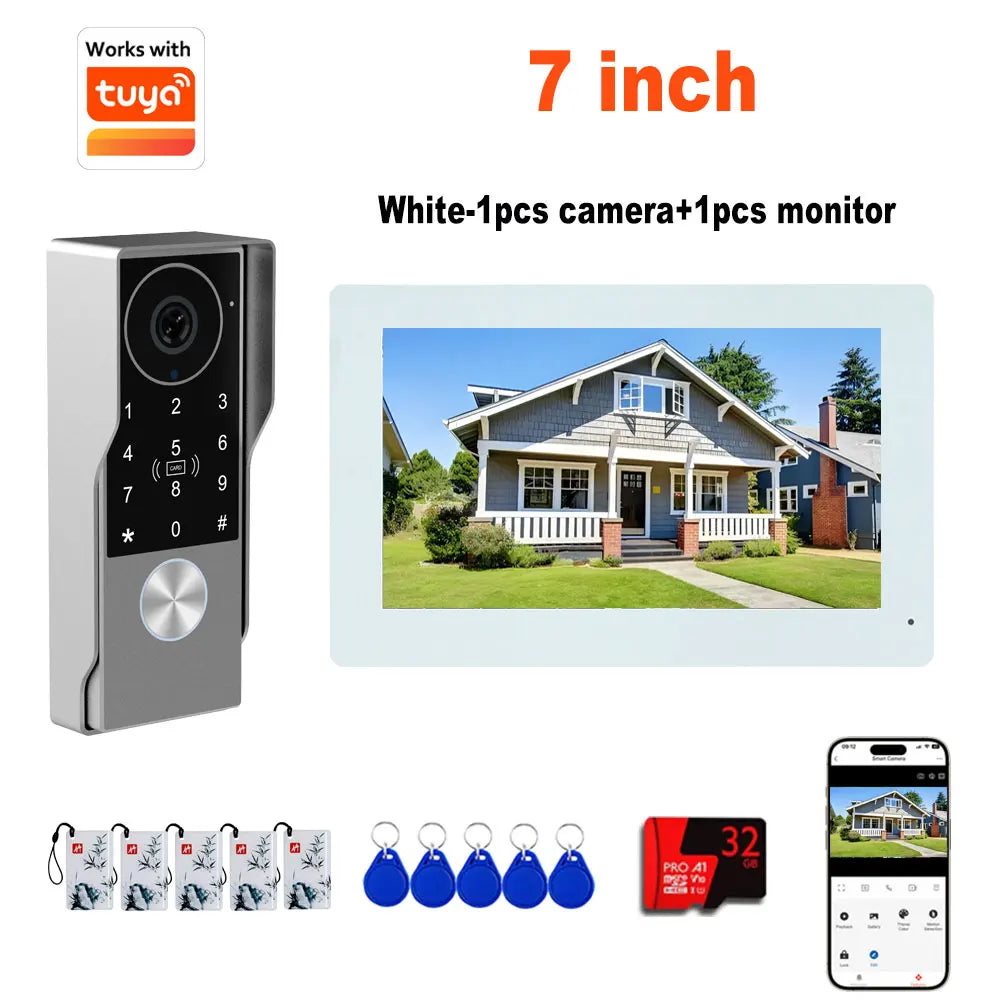

1pcs Camera add 1pcs 7 inch LCD (optional)

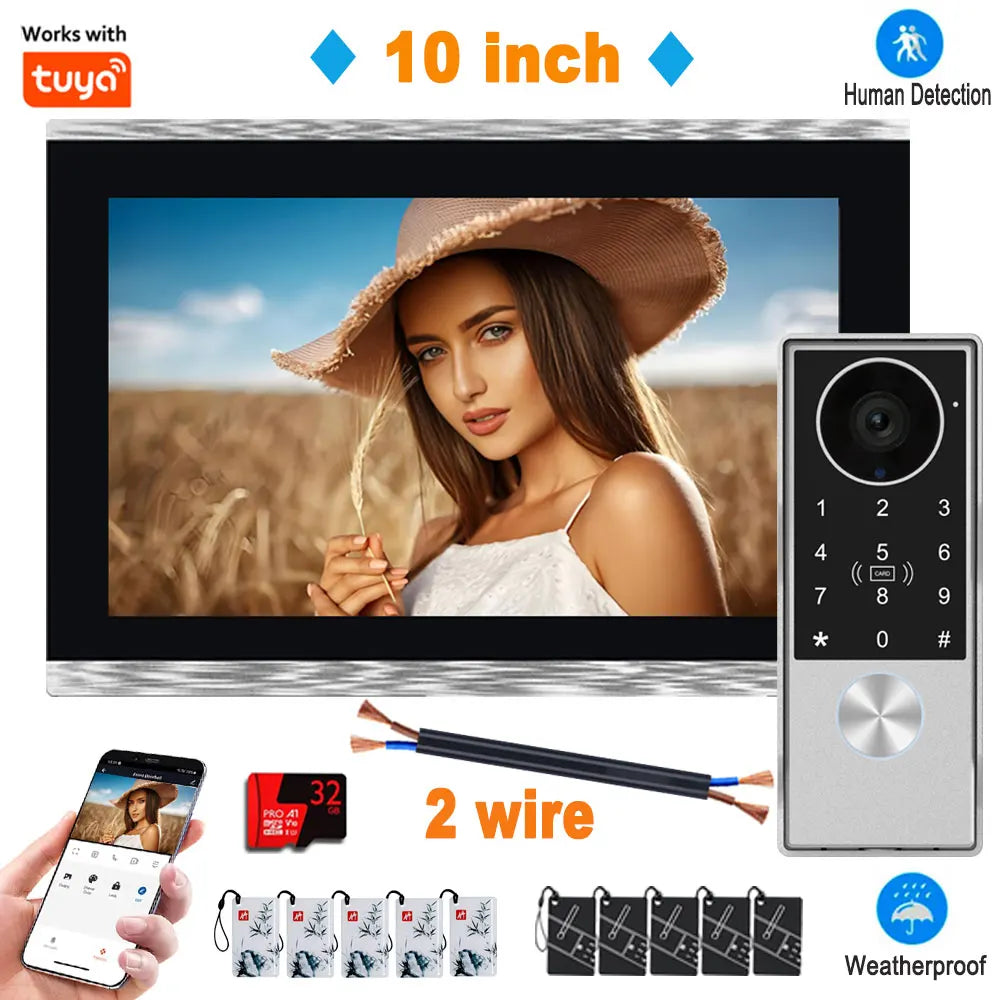

1pcs Camera add 1pcs 10 inch LCD (optional)

Features

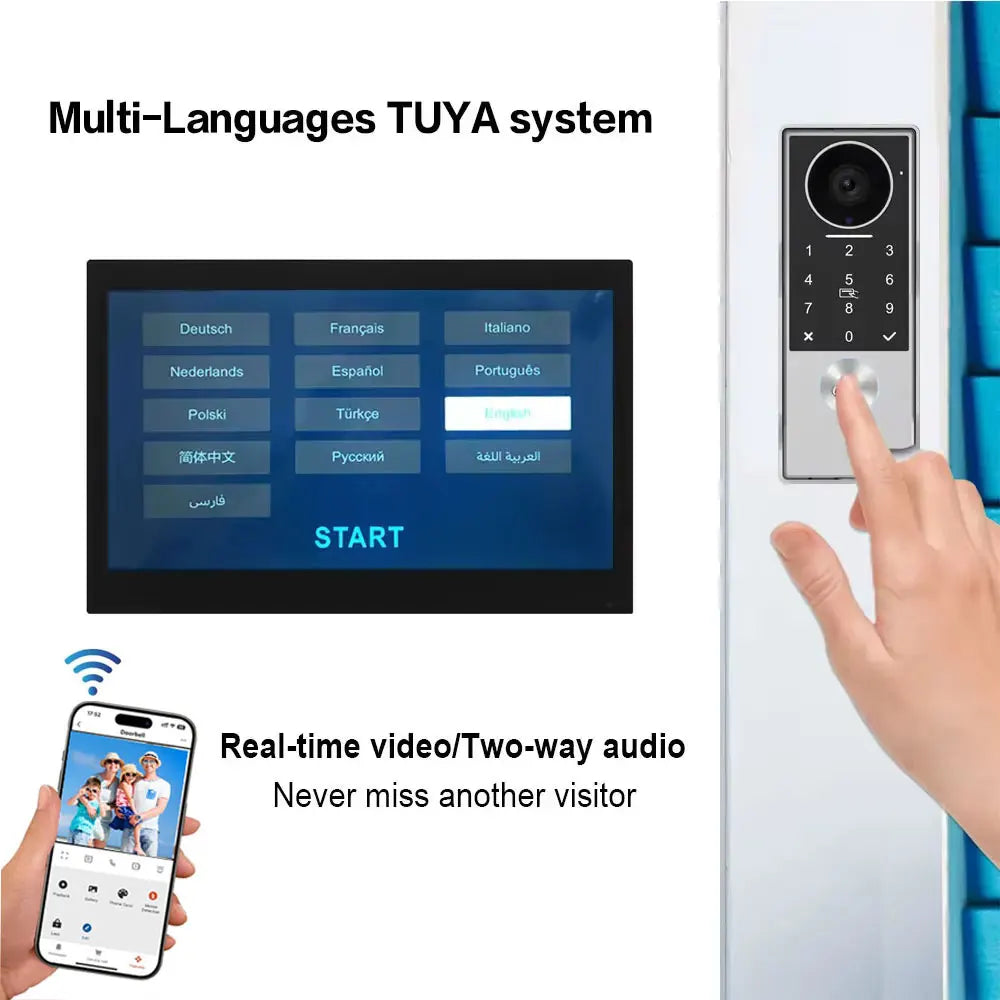

Monitor

- 7” or 10.1” IPS touch screen with 1024 x 600 resolution

- Supports Class 10 Micro SD card, up to 512GB capacity

- Dual-band 2.4 GHz and 5 GHz IEEE 802.11 b/g/n/ac

- Current consumption: 150mA, Power consumption: 3.5W

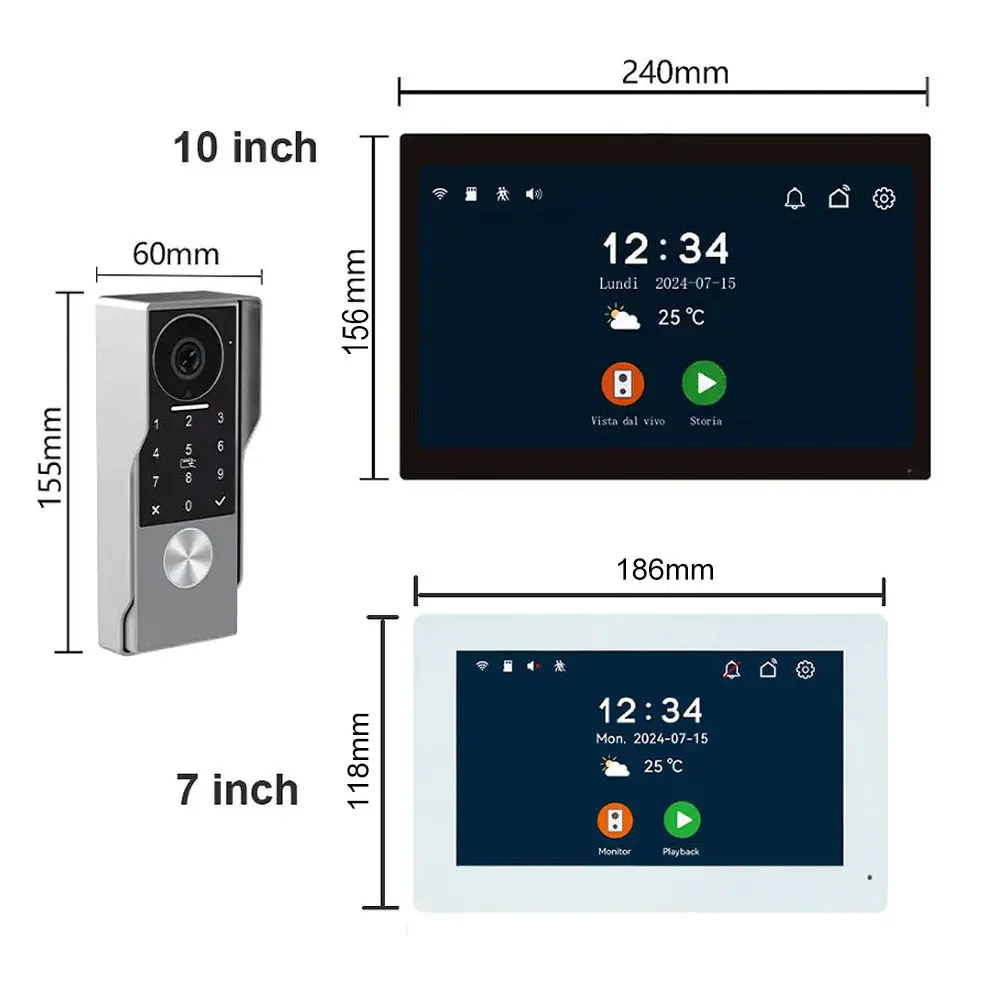

- 7inch monitor dimensions: 118 (h) x 186 (w) x 18.5 (d) mm

- 10.1inch monitor dimensions: 156 (h) x 240(w) x 18.5 (d) mm

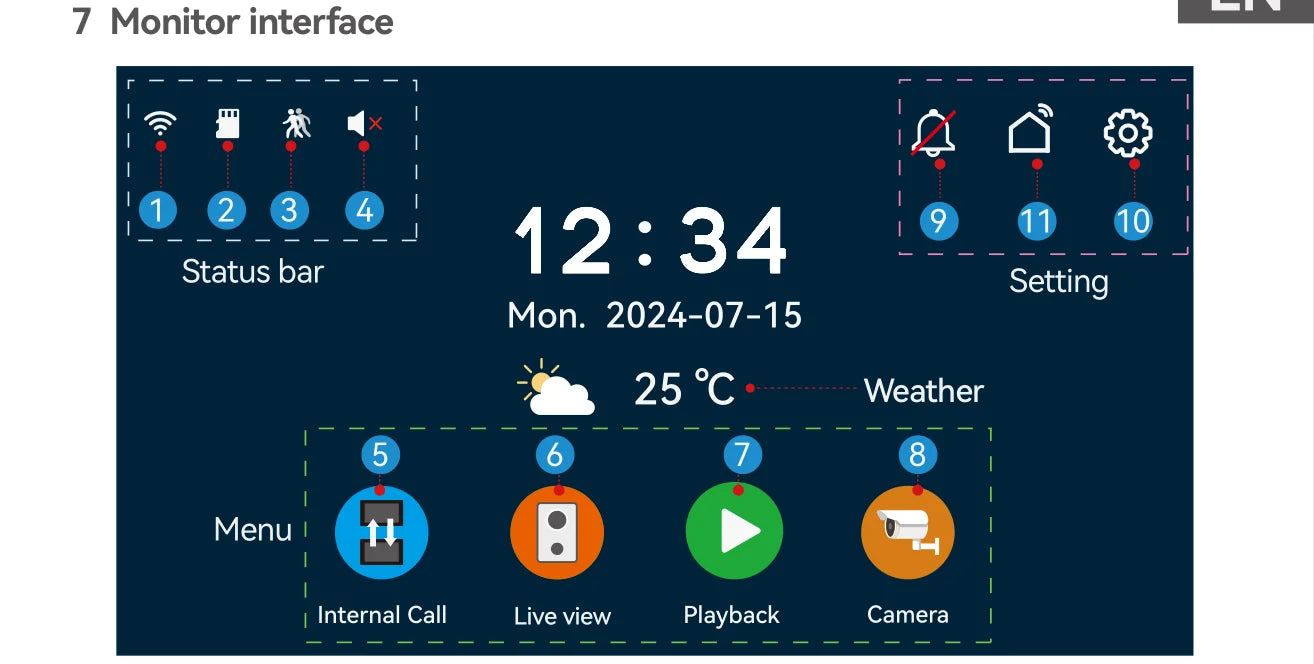

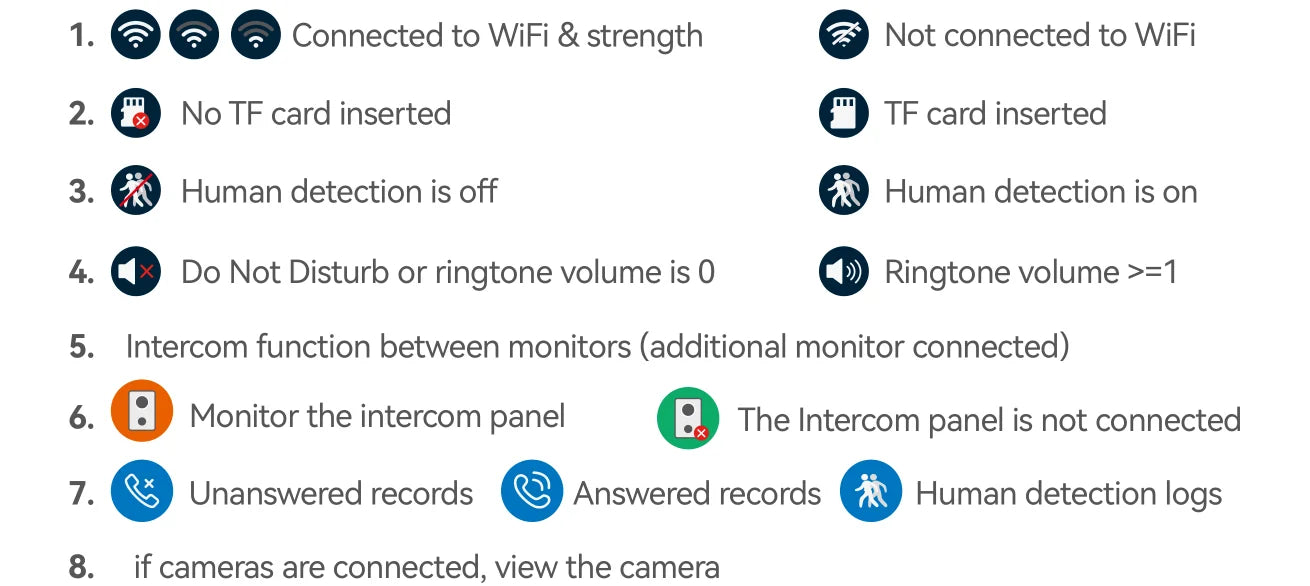

- The screen saver can always display the time and weather

- Take photo or video, twin controls for lock and gate, human detection, weather

- Monitor can talk to another monitor

- Automatic photo/video recording triggered by human detection or incoming calls

- Monitoring time lasts up to 30 minutes.

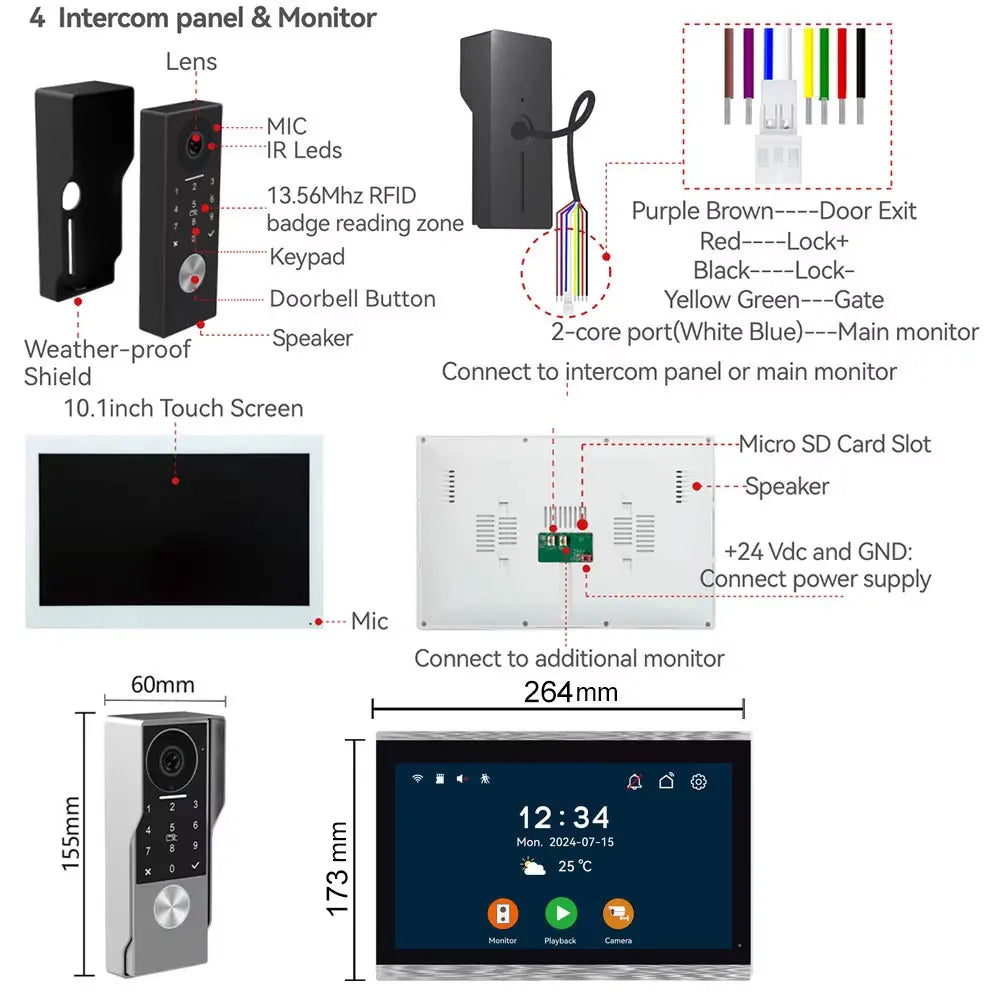

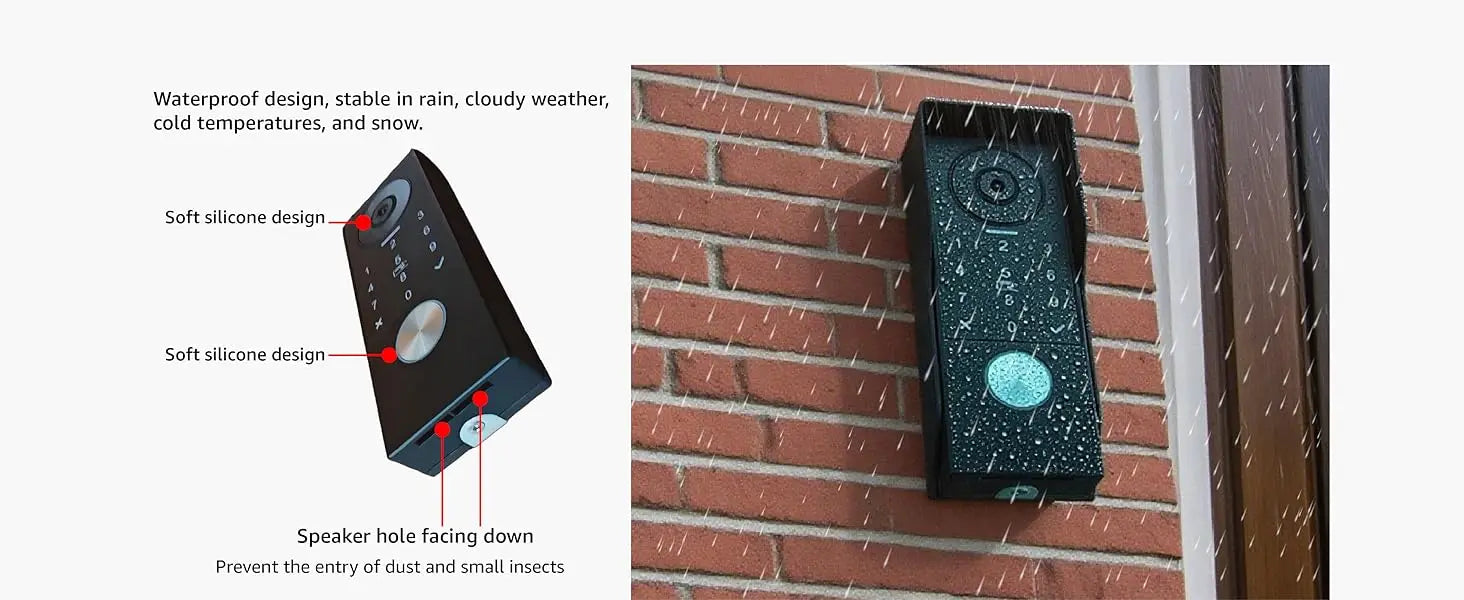

Intercom panel

- 2-megapixel CMOS color sensor

- Viewing angle: Horizontal ~130°/ Diagonal ~165°

- Current consumption: 220mA，Power consumption: 5.5W

- IR CUT no color deviation (4 IR LEDs)

- Wide Dynamic Range (WDR) camera for clear imaging in harsh light

- Camera distortion correction to prevent image stretching/bending

- Human detection function with adjustable motion zones

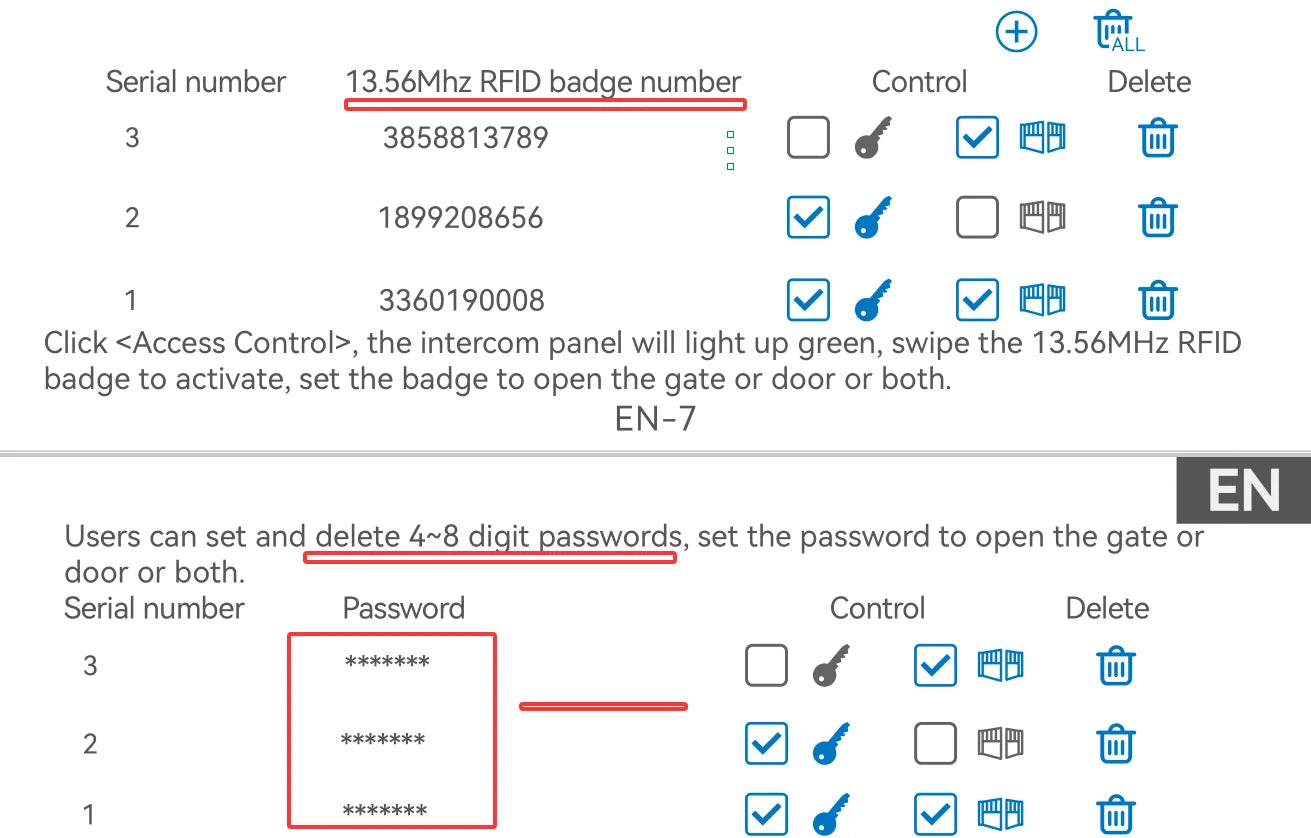

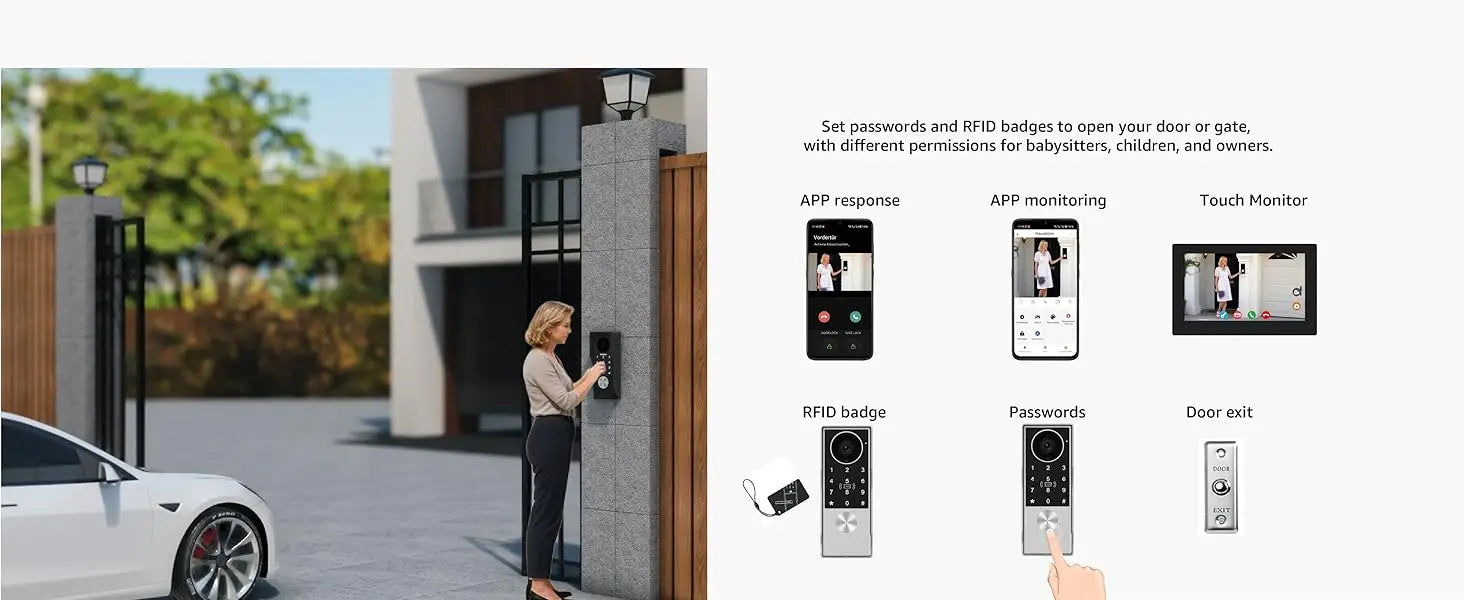

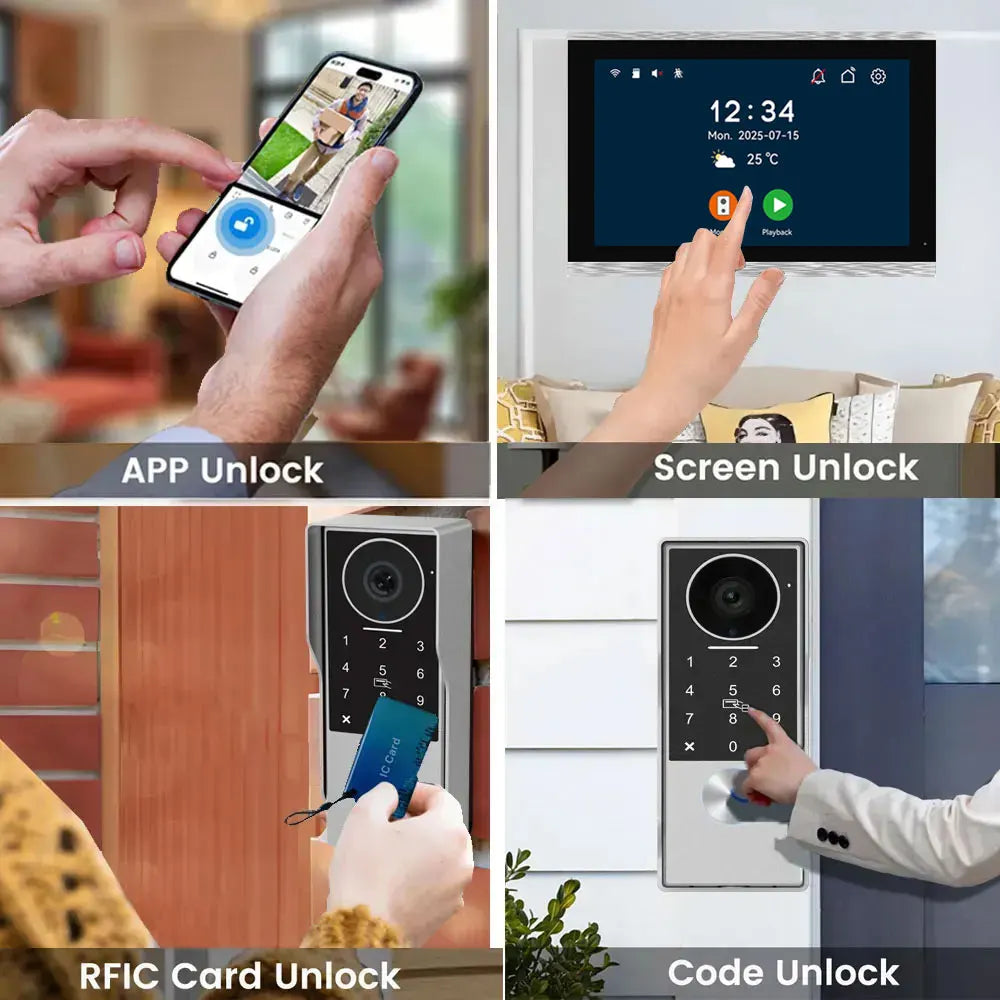

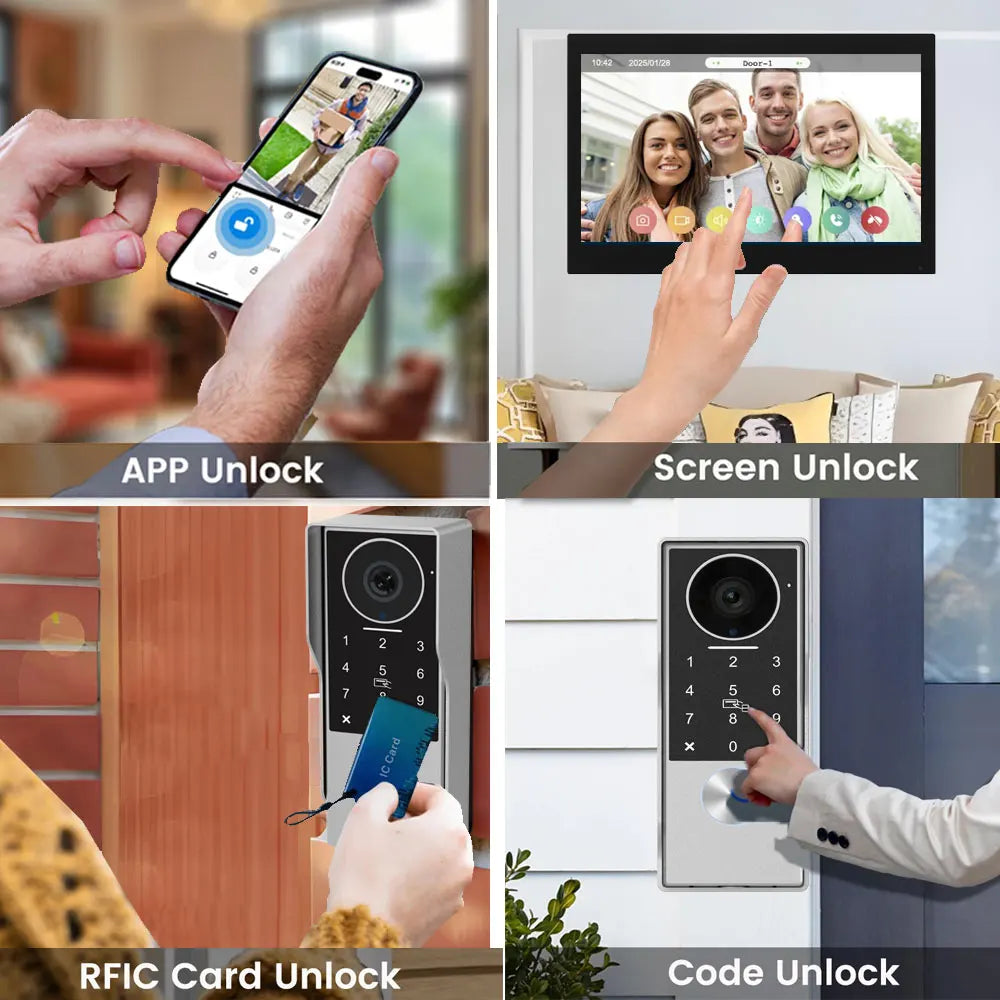

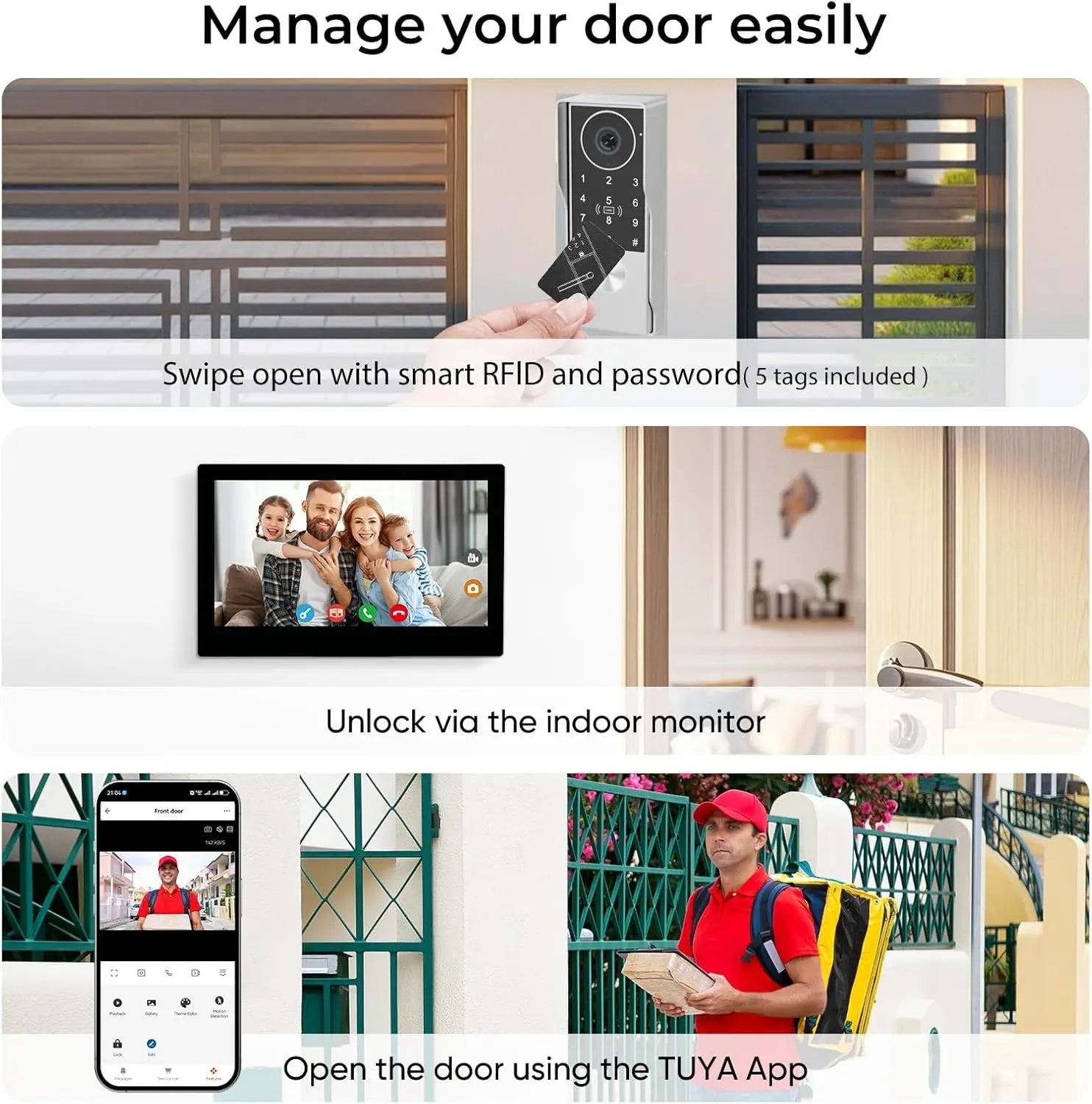

- RFID: 13.56MHz - 100 badges max.

- Operating temperature: -30°C / +70°C

- Dimensions: 149 (h) x 60 (w) x 35 (d) mm

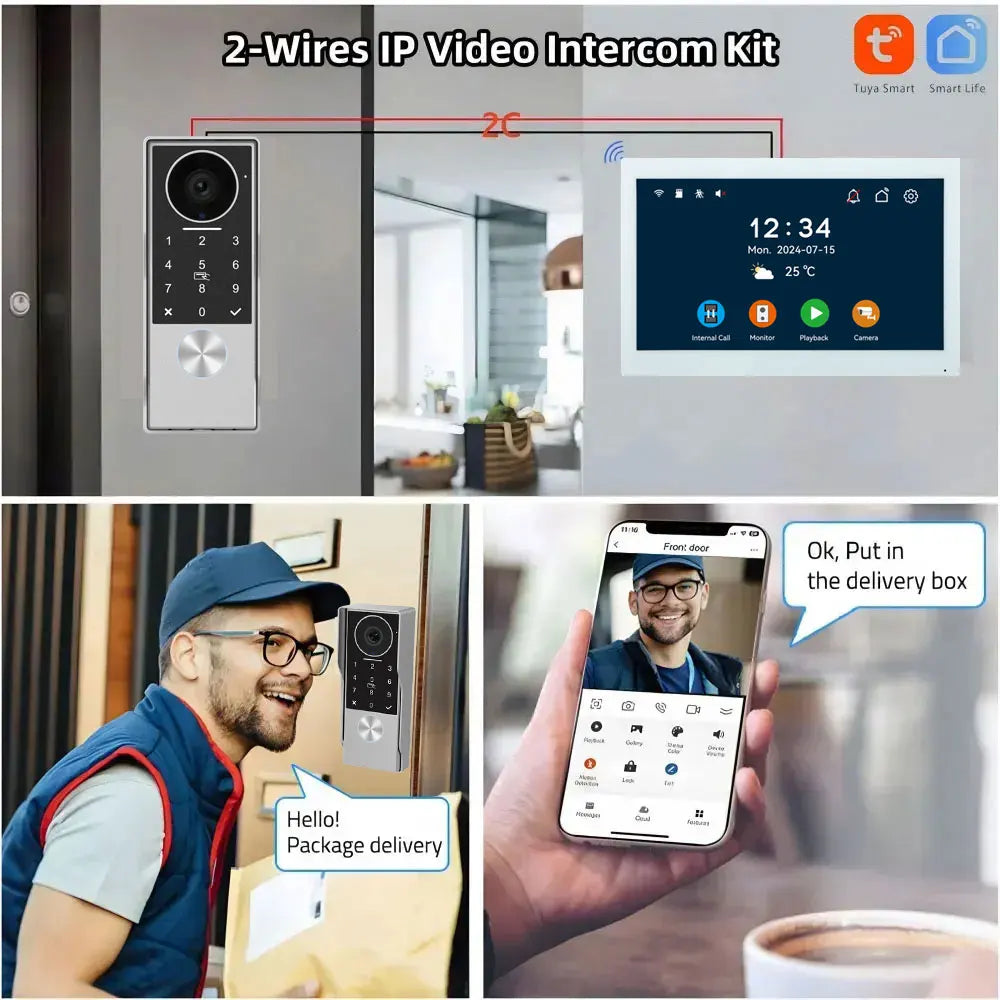

Connect

- 1 Intercom panel and 2 monitors share one power supply

- 2 wires no polarity to conect intercom panel and monitors

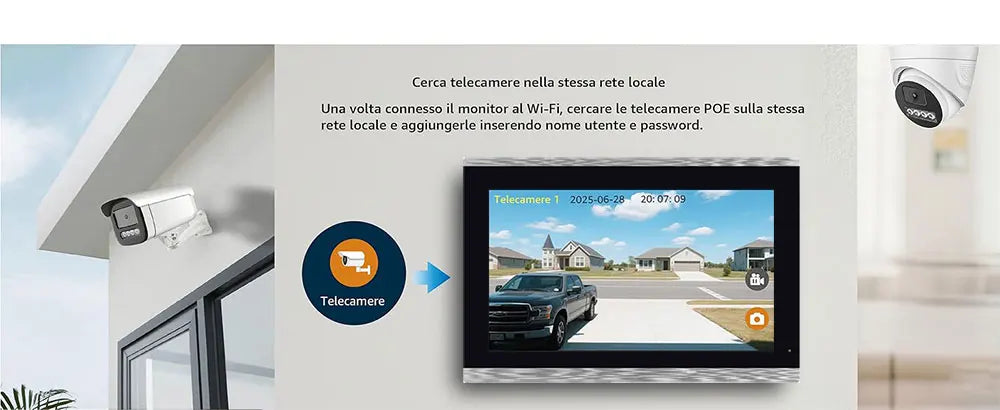

- Connect up to 24 ONVIF cameras within the same LAN

APP

- Main monitor connects to "Tuya" or "SmartLife" App

- Supports up to 20 App users, enabling remote 2-way talk, photo/video capture,

real-time monitoring, lock/gate control, and cloud storage

- Automatic photo/video recording triggered by human detection or incoming calls

- Search "Tuya" or "SmartLife" from APP store or Google Play

- Quick download by scanning the QR code in the monitor's menu

Intercom panel & Monitor

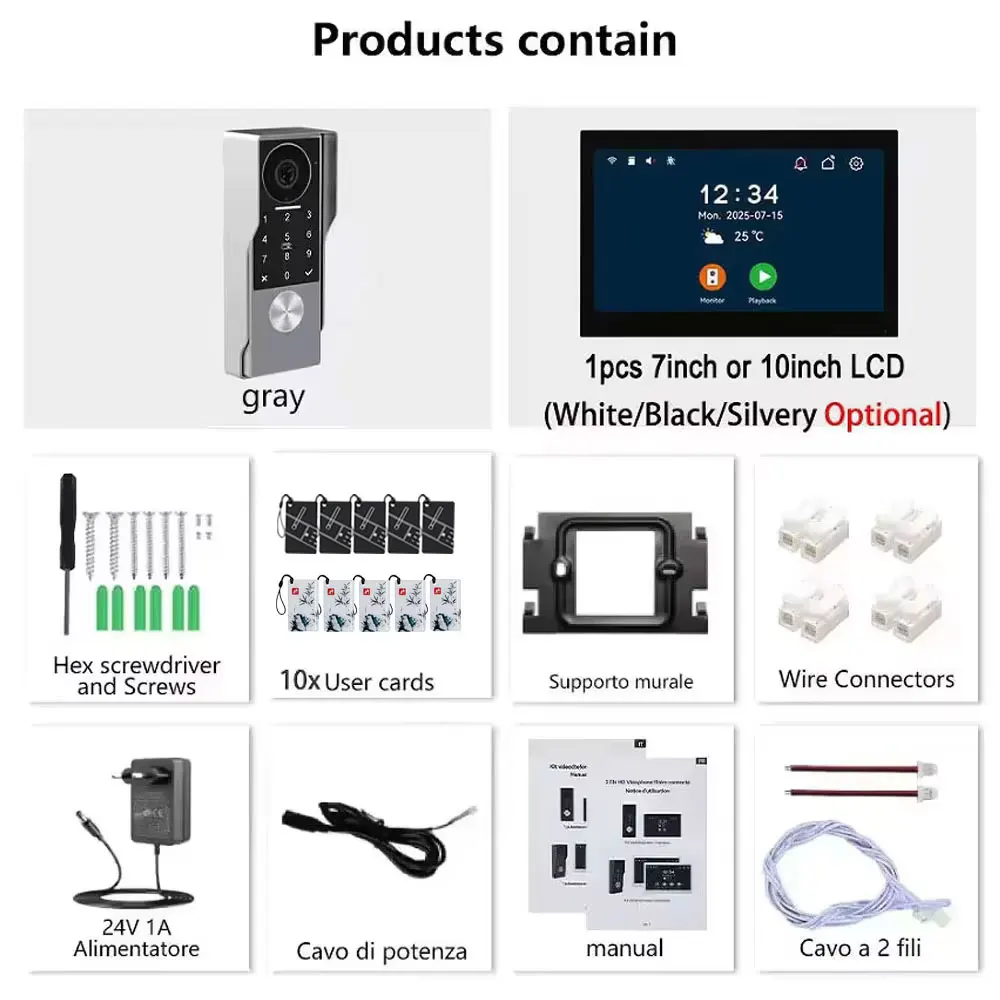

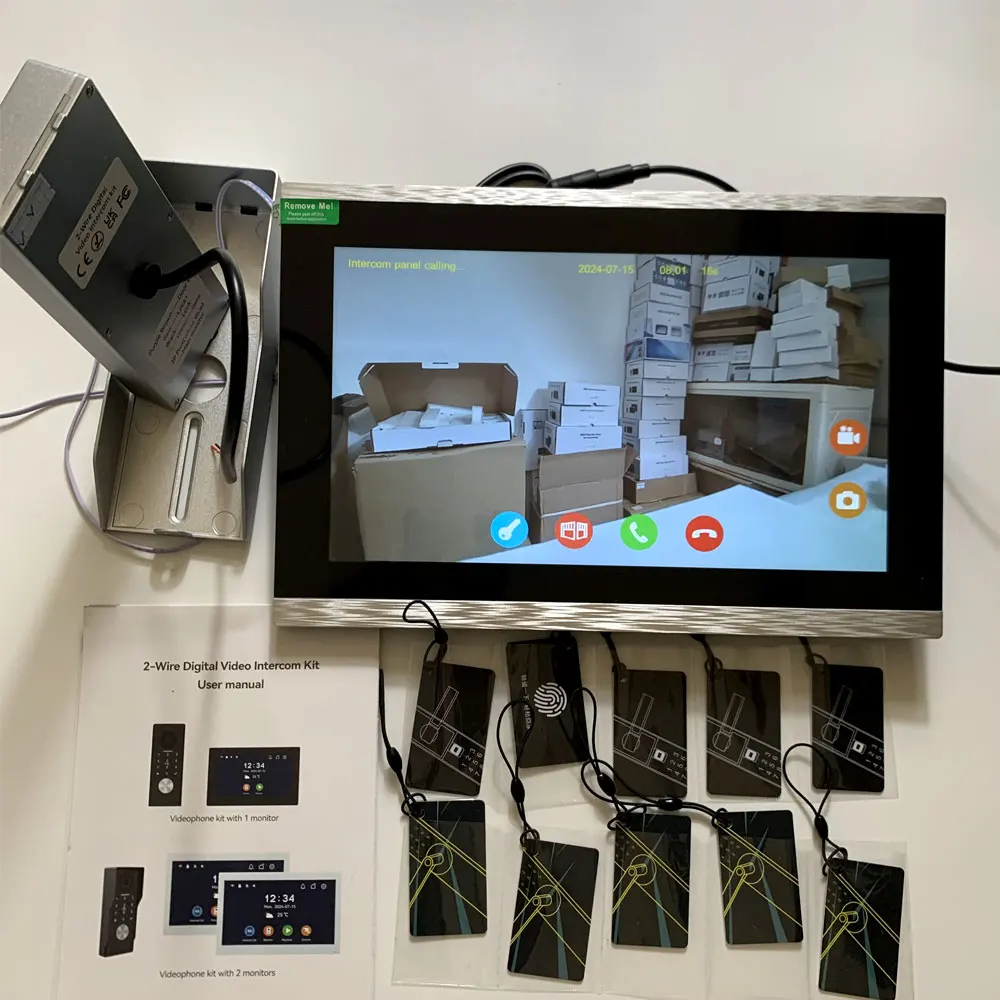

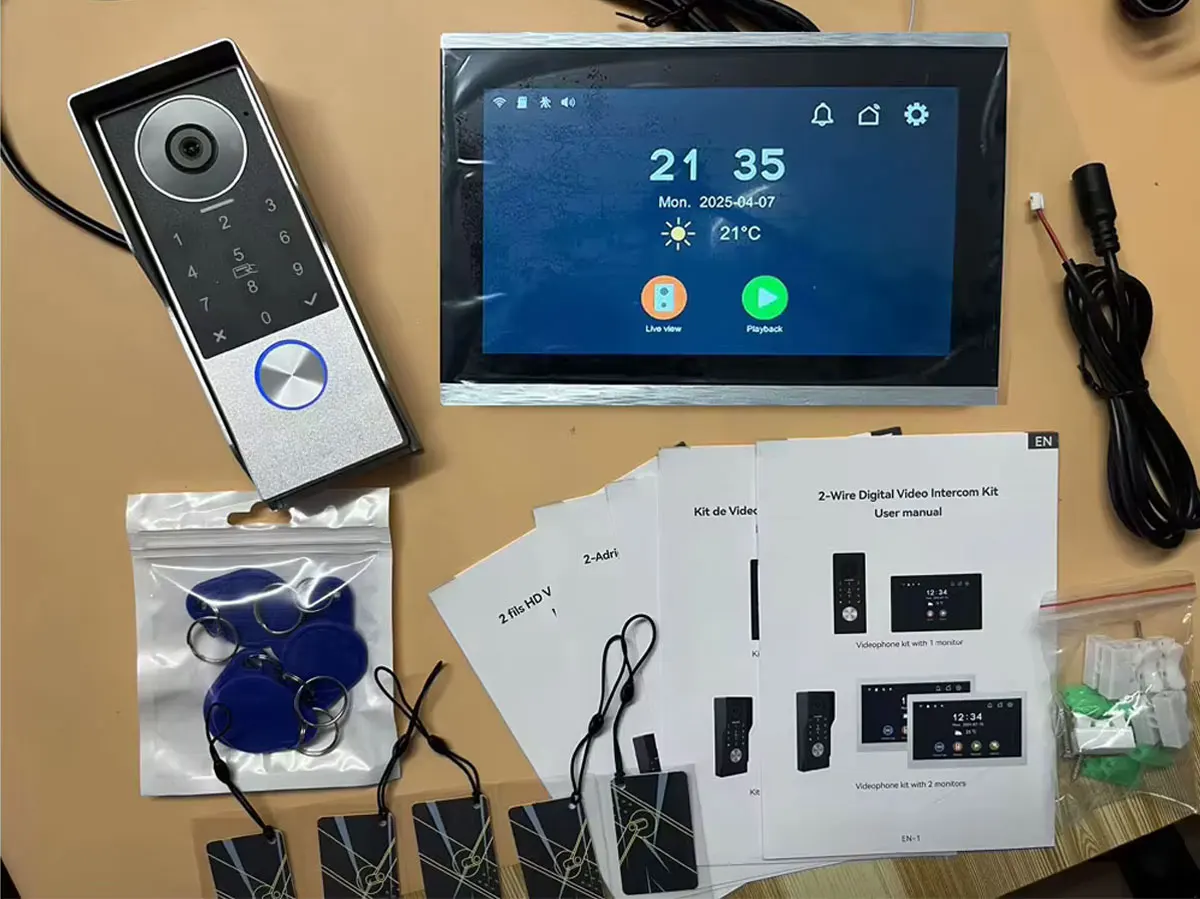

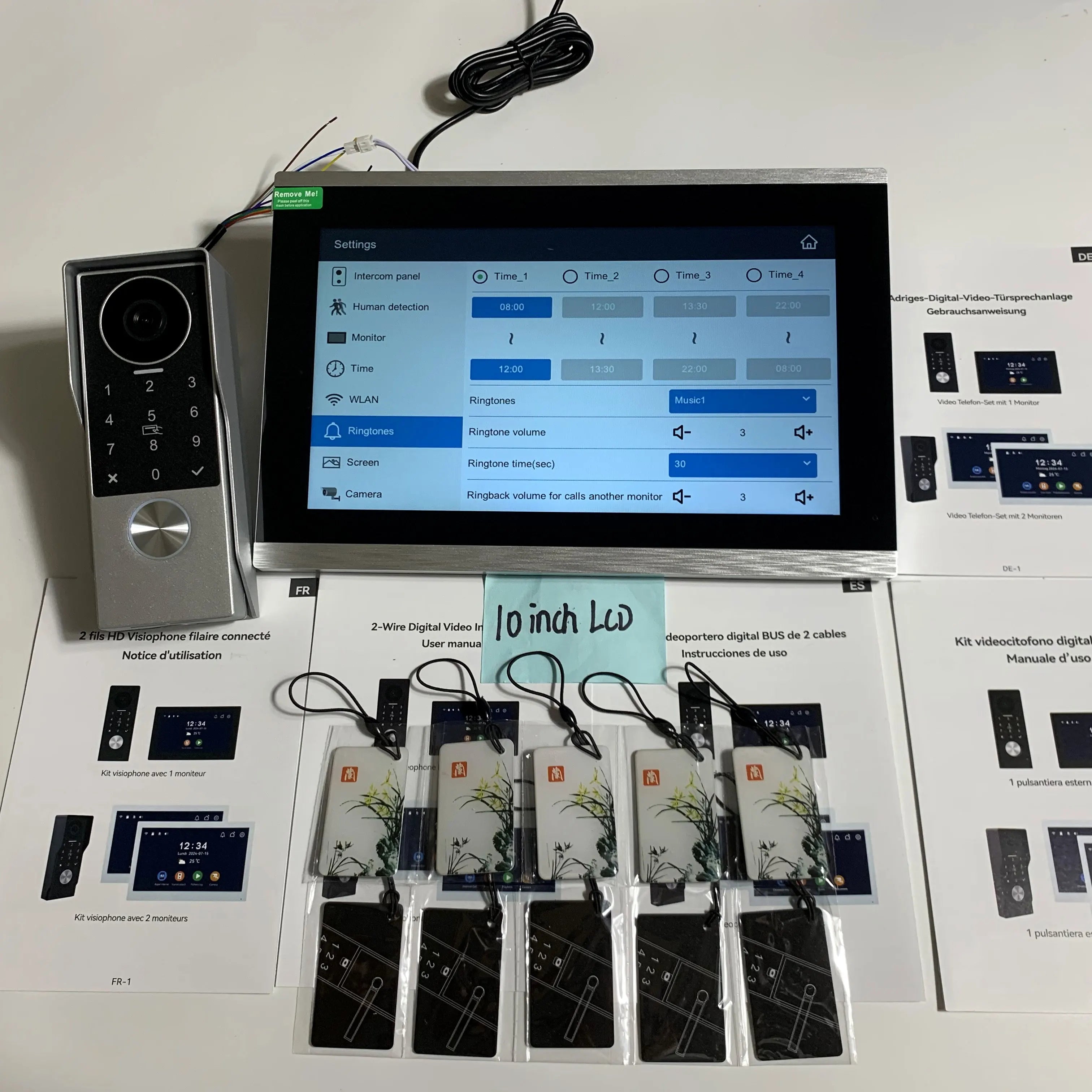

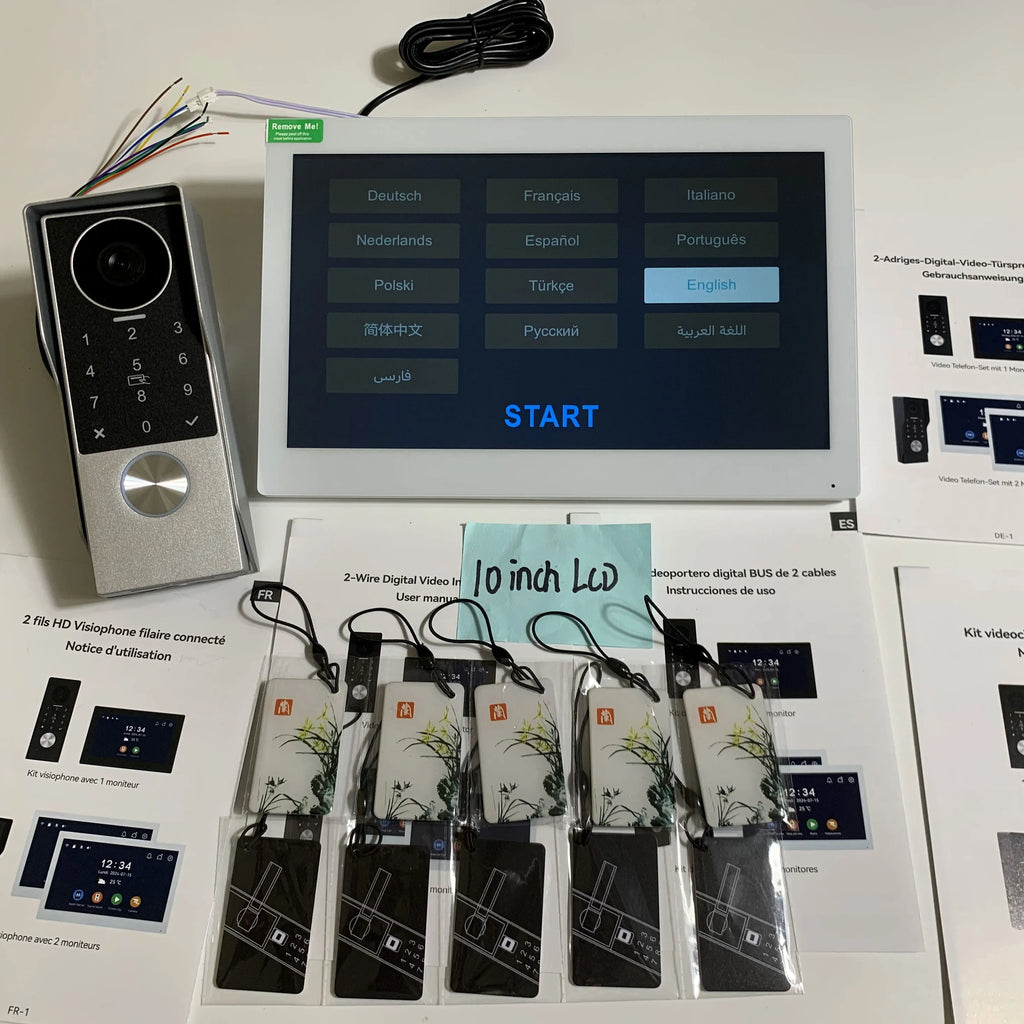

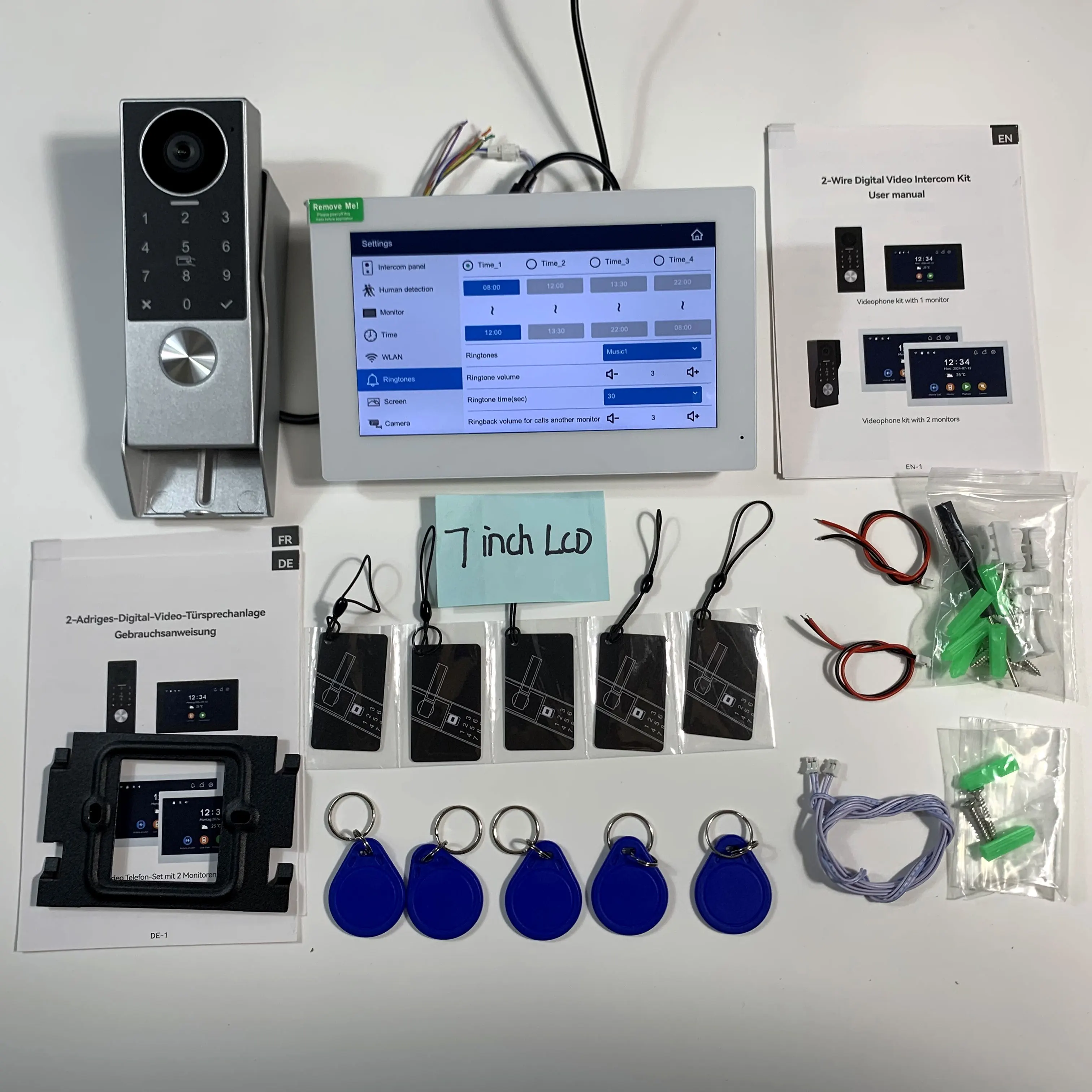

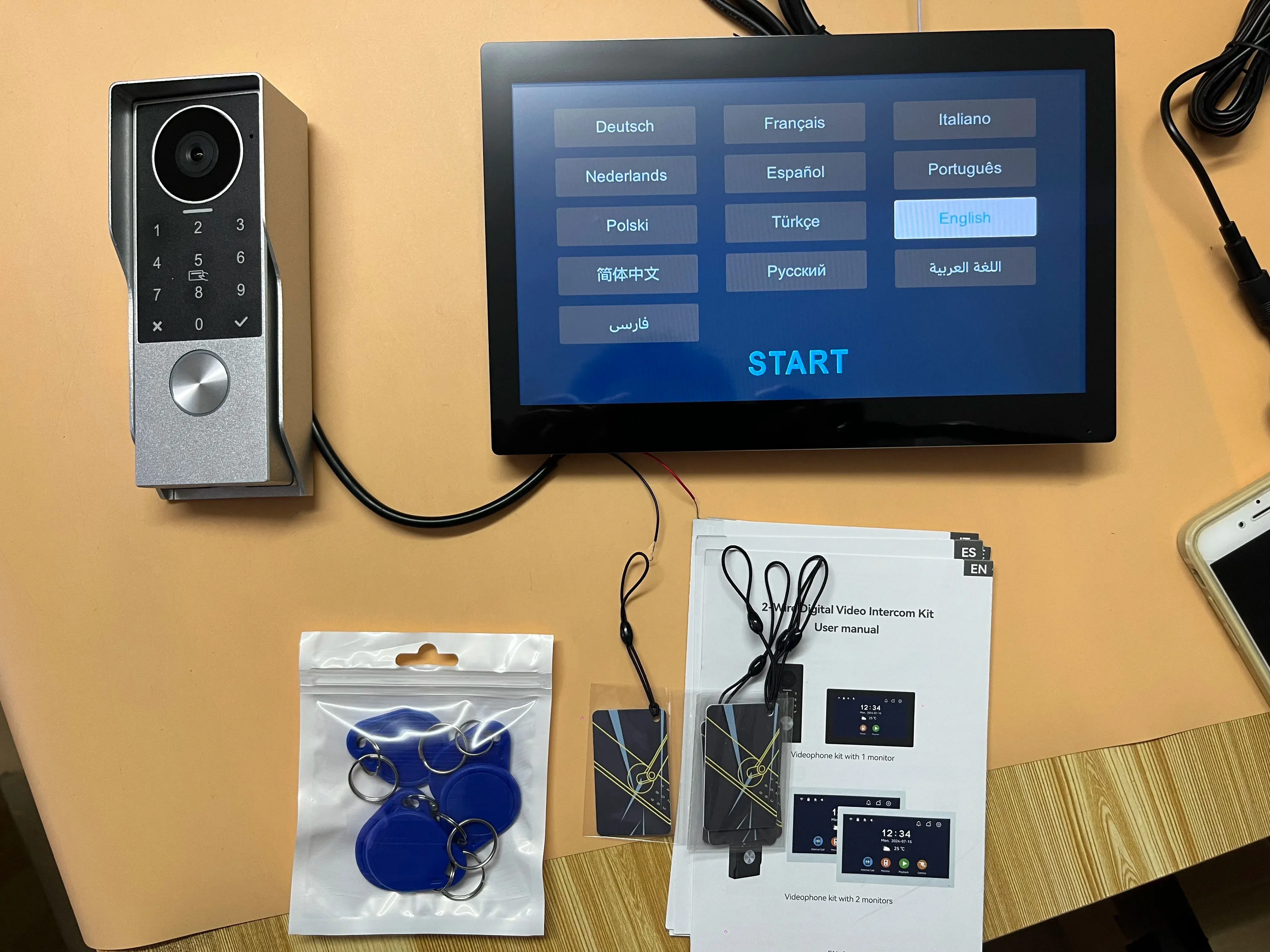

Product includ

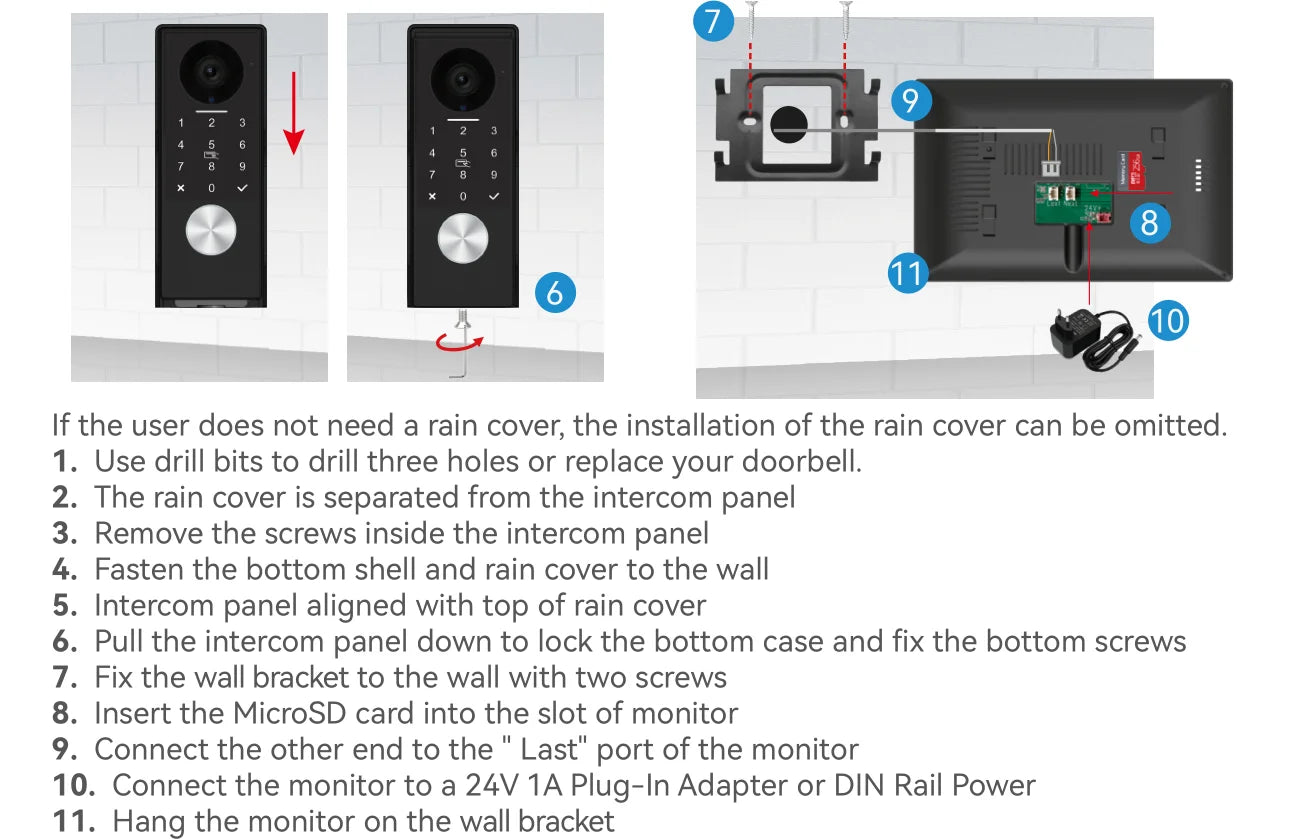

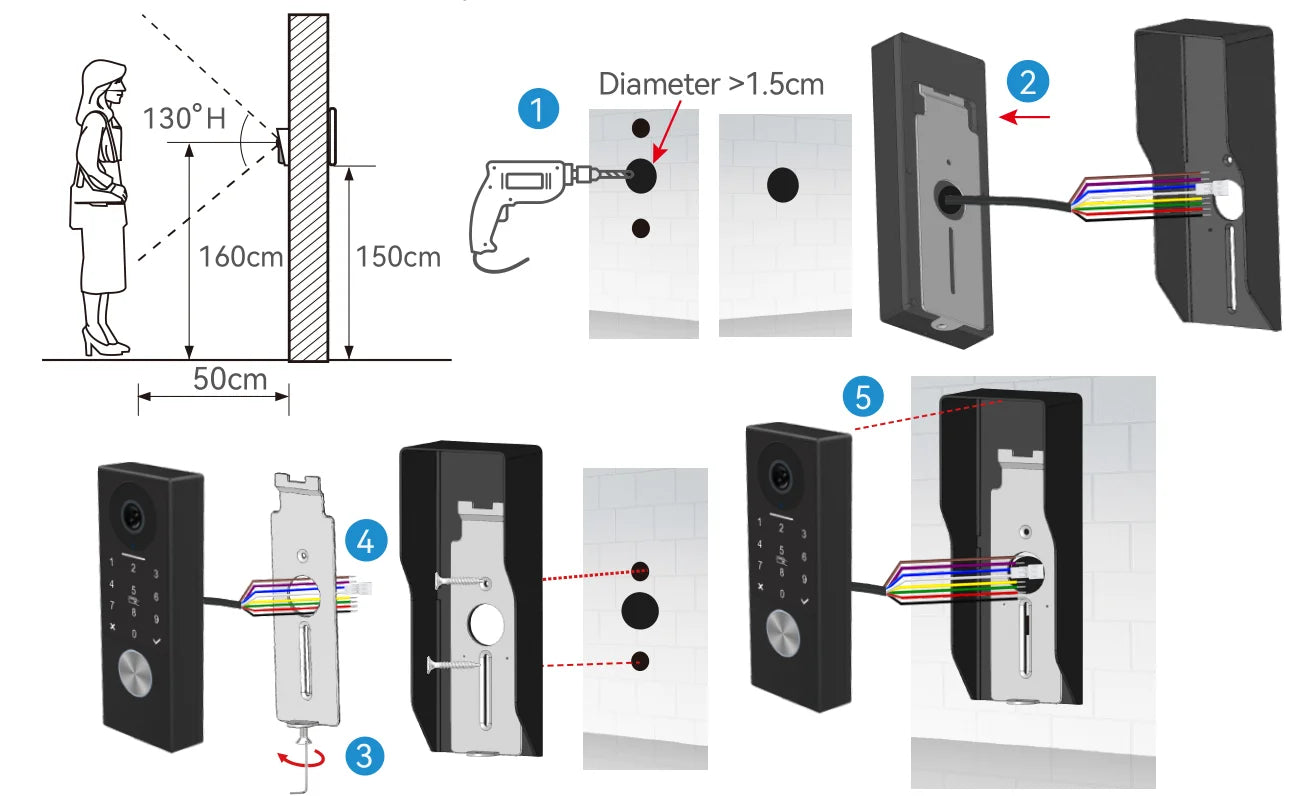

Wiring

In order to avoid the risk of interference and malfunction, do not pass the wire for your
video doorphone through the same sheath as the electrical wires.
Warning: Do not under any circumstances double wires to increase the wire size.

a. Connecting the videophone (monitor and intercom panel)

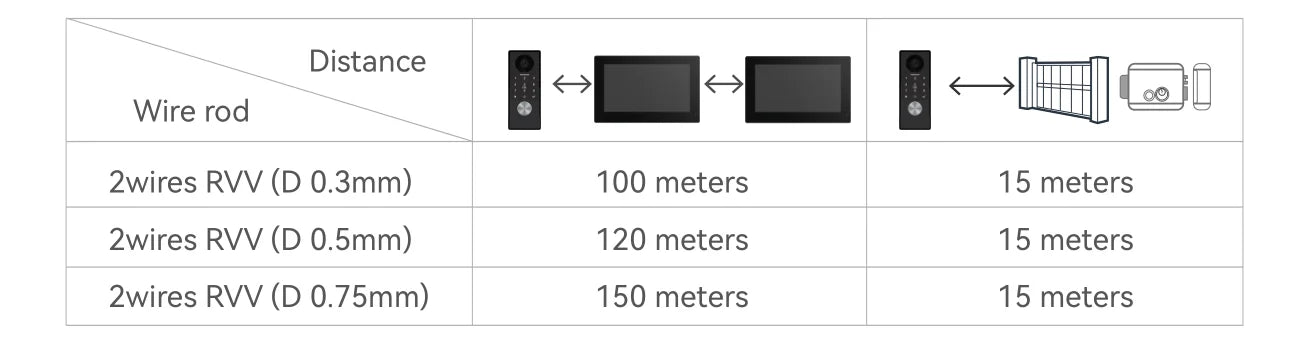

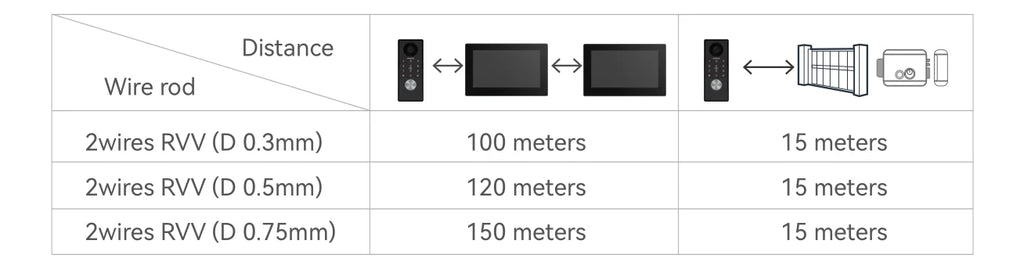

Wires to be used: 2x 0.75 mm² wires up to 100 m long or 2x 1.5 mm² wires up to 120 m
long.The wires must be in one piece.There must be no terminal strips or similar
connections to avoid altering the signal.

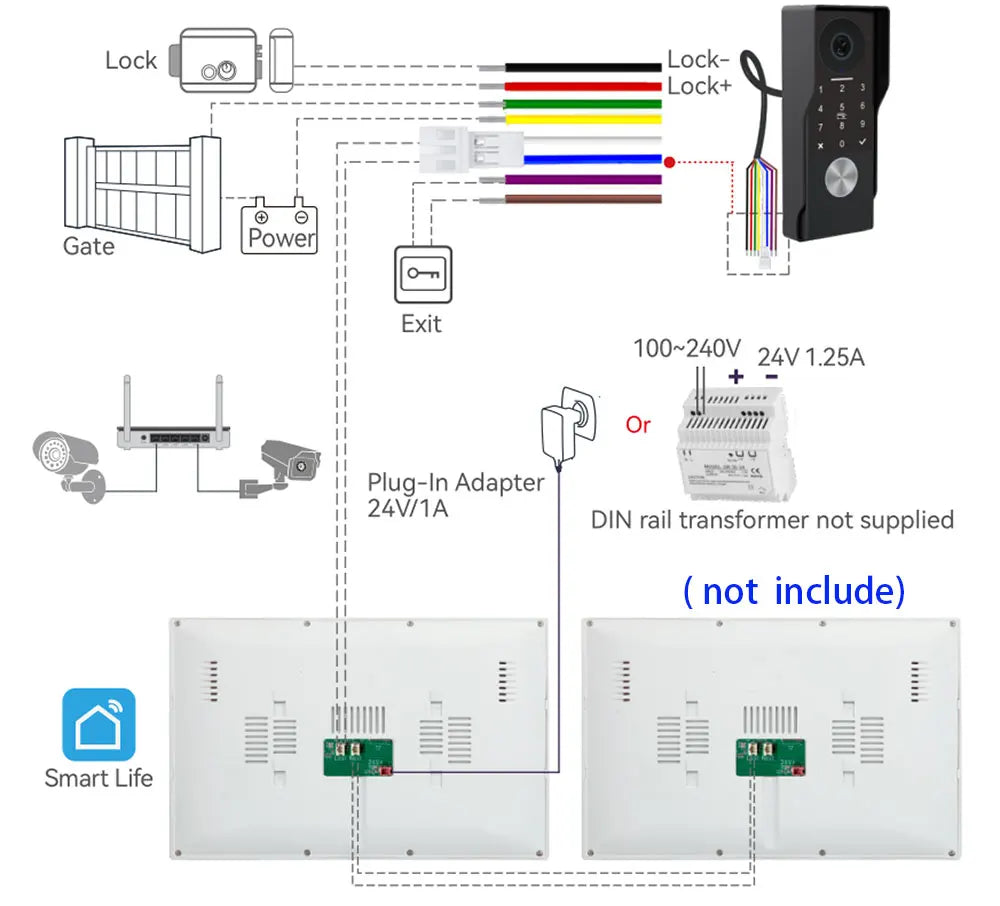

-Ensure that the wires are properly connected, following one of the wiring diagrams
depending on the desired configuration.

- Be sure to refer to the labelling on the back of the monitor and the back of the intercom panel.
When a second intercom panel is installed,the two intercom panels must be terminated
on the connecting cables, and the monitors wired together.

b. Connecting a gate motor drive Please note: the type of command (complete opening, partial opening for a pedestrian)that the motor drive will perform on request from the monitor cannot be selected from the monitor. The function triggered by the motor drive depends on the input on the motor drive electronic card to which the cables are routed.

-The gate output does not provide feedback as to whether the motor drive has taken the
command into account or whether it has executed the command correctly.

-The intercom provides a dry contact (without power) to be connected to the push button

control of the automatic opener.

-Connect the motor drive control directly to the Gate terminals on the intercom panel

(no polarity required).

c. Connecting an electric strike plate or lock Warning: The output of the intercom panel is designed to control a fail-secure electric strike plate or lock.

Important: The current controlling electric strike plate or lock must not exceed 1.1 A.

-Connect the electric lock or strike plate directly to the Lock+ and Lock- terminals.
